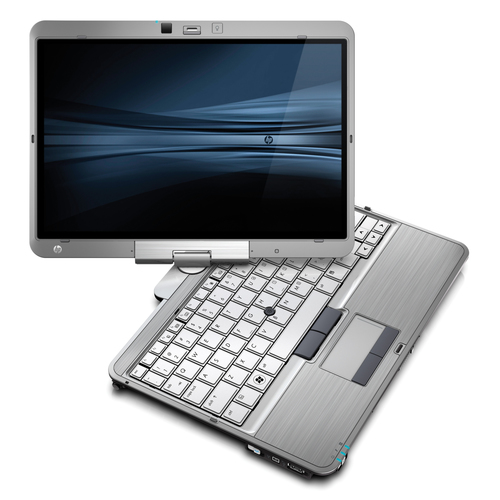

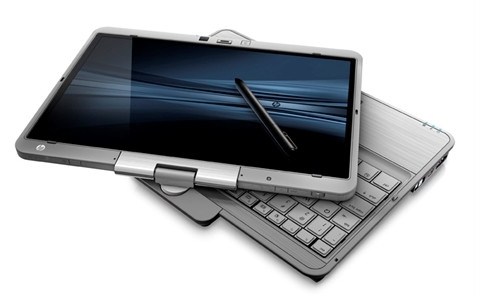

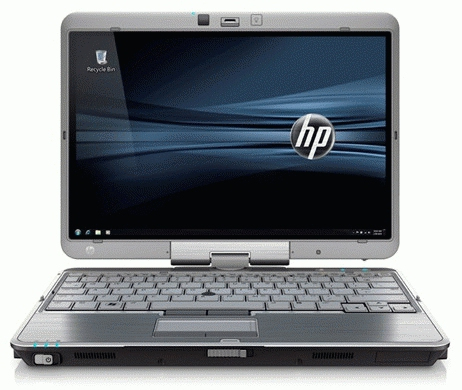

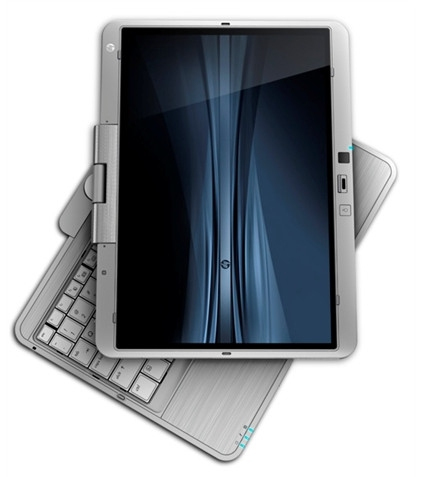

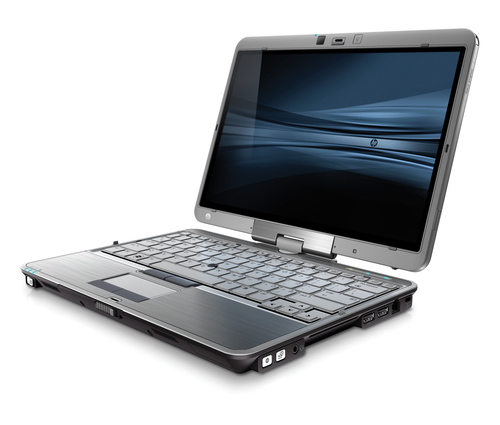

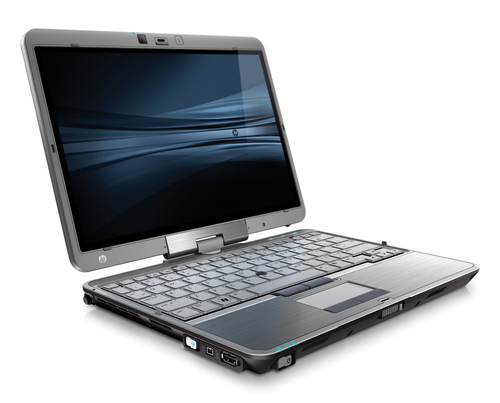

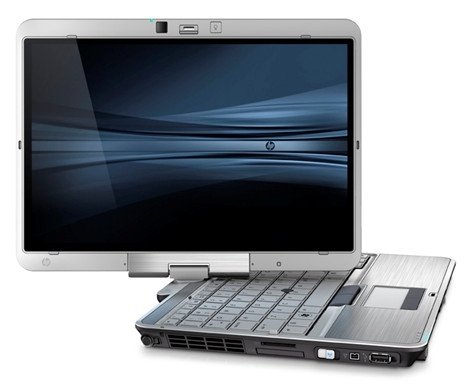

HP EliteBook 2740p Intel® Core™ i5 i5-540M Hybrid (2-in-1)

30.7 cm (12.1") Touchscreen 4 GB Windows 7 Professional

Model 2740pPart no. WK297EA#ABHEAN 885631240519

143 specifications Checked 3 days ago

Display30.7 cm (12.1")
Resolution1280 x 800 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage0 GB
TypeHybrid (2-in-1)

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 0 GB
Type: Hybrid (2-in-1)

Brand: HP
Category: Laptop
Model: 2740p
Part numbers: WK297EA#ABH, WK299EA#ABH, WS272AW, WK298EA, WK297EA, XT935UT +9 more
EAN / UPC: 885631240519, 885631240144, 885631240151, 885631240168 +56 more
Also known as: HP EliteBook 2740p Intel® Core™ i5 i5-540M Hybrid (2-in-1) 30.7 cm (12.1") Touchscreen 4 GB Windows 7 Professional

Specifications

143 specifications in 22 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Form factor	Convertible (Swivel)
Country of origin	China

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1280 x 800 pixels
Touchscreen	Yes
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-540M
Processor cores	2
Processor threads	4
Processor boost frequency	3.07 GHz
Processor frequency	2.53 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 956
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-500 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	C2
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	19
ECC supported by processor	No
Processor technology	Intel Centrino 2 w/ vPro

Memory

Specification	Value
Internal memory	4 GB
Memory clock speed	1333 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB
Memory upgrade	8 GB

Storage

Specification	Value
HDD capacity	0 GB
Total SSDs capacity	160 GB
SSD capacity	160 GB
Optical drive type	No
Card reader integrated	Yes
Maximum HDD capacity	320 GB

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	766 MHz
Graphics card	HD Graphics

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Built-in microphone	Yes
Audio included	High Definition Audio support with 24-bit DAC, Integrated stereo speakers, Integrated dual-microphone array, Touch-sensitive controls for volume up, volume down, and mute, Combo headphone/mic jack

Camera

Specification	Value
Front camera resolution (numeric)	2 MP

Network

Specification	Value
Networking features	Integrated Intel 82577 Gigabit Ethernet (10/100/1000 NIC)
Wireless technology	Intel 802.11a/b/g; HP Integrated Module with Bluetooth 2.1 Wireless Technology
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
SmartCard slot	Yes
Modem (RJ-11) ports	1
I/O ports	3 USB 2.0; 1 1394a; 1 AC power; 1 combo stereo headphone/mic jack; 1 docking connector; 1 RJ-11; 1 RJ-45; 1 secondary battery connector; 1 VGA-in

Performance

Specification	Value
Motherboard chipset	Intel® QM57 Express
GPS (satellite)	No

Keyboard

Specification	Value
Keyboard type	HP spill-resistant keyboard, HP Night Light shines directly on the keyboard for low-light conditions

Software

Specification	Value
Operating system installed	Windows 7 Professional
Trial software	WinZip 12; Microsoft Office Professional 2007; HP SkyRoom
Bundled software	HP Recovery Manager; HP Support Assistant; HP QuickLaunch Buttons; HP QuickLook 3; HP QuickWeb; HP DayStarter; HP Power Assistant; HP Connection Manager; HP Wireless Assistant
Compatible operating systems	Genuine Windows Vista Enterprise 32; Genuine Windows Vista Enterprise 64; Genuine Windows 7 Home Premium; SuSE Linux Enterprise 10

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	43544
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Security management description	HP ProtectTools Security Manager; HP Fingerprint Sensor; Integrated Smart Card Reader; Enhanced Pre-Boot Security; HP SpareKey; One-Step Logon; Setup Password; DriveLock Password; TPM 1.2 Embedded Security Chip; TPM Enhanced DriveLock; HP Disk Sanitizer; Kensington Lock slot; Support for Computrace

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Weight	1.72 kg
Width	290 mm
Depth	212 mm
Height	31.7 mm
Dimensions (WxDxH)	290 x 212 x 31.7 mm

Video

Specification	Value
Video adapter features	Microsoft DirectX 10 (Shader 4.0) and OpenGL 2.1 capable, with DDR3 system memory

Hard drive

Specification	Value
Storage drive type	160 GB Solid State Drive SATA II Hard Drive 160, 250 or 320 GB (5400 rpm), Solid State Drive 80 or 160 GB, HP 3D DriveGuard
Storage drive controller	Solid State Drive SATA II (5400 rpm)

Other features

Specification	Value
Battery type	HP Long Life 6-cell (39 WHr) Lithium-Ion Primary Battery
Minimum storage drive space	160 GB
Power requirements	External 65W Smart AC adapter; Power cord (1.8 meters, with AC adapter 3.66 meters); HP Fast Charge
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	56K V.92
Intel segment tagging	Enterprise
Docking solution	HP 2740 Docking Station, HP USB 2.0 Docking Station, HP Essential USB 2.0 Port Replicator, HP Dual Hinge Notebook Stand, HP Display and Notebook Stand, HP Basic Adjustable Stand, HP Adjustable Display Stand, HP Adjustable Dual Display Stand
Expansion slots	1 Express Card/34; 1 Smart Card Reader; 1 secure digital/MultiMedia card
Supplied AC adapter type	AC
