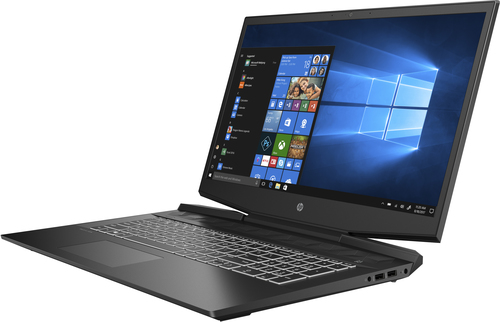

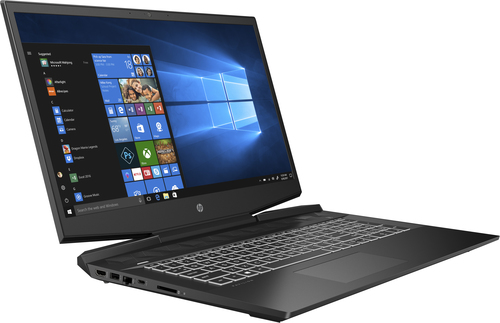

Pavilion Gaming 17-cd1015na Intel® Core™ i7 i7-10750H Laptop

43.9 cm (17.3") Full HD 16 GB DDR4-SDRAM 1.51 TB HDD+SSD NVIDIA GeForce RTX 2060 Max-Q Wi-Fi 6 (

Model 17-cd1015naPart no. 1S0W8EAEAN 195122498023

170 specifications Checked today

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1.51 TB
GraphicsNVIDIA GeForce RTX 2060 Max-Q

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1.51 TB
Graphics: NVIDIA GeForce RTX 2060 Max-Q

Brand: HP
Category: Laptop
Model: 17-cd1015na
Part number: 1S0W8EA
EAN / UPC: 195122498023
Also known as: HP Pavilion Gaming 17-cd1015na Intel® Core™ i7 i7-10750H Laptop 43.9 cm (17.3") Full HD 16 GB DDR4-SDRAM 1.51 TB HDD+SSD NVIDIA GeForce RTX 2060 Max-Q Wi-Fi 6 (

Specifications

170 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming
Country of origin	China

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	300 cd/m²
Colour gamut	100%
Display diagonal (metric)	43.9 cm
RGB colour space	sRGB
Display response rise/fall	7 ms
Maximum refresh rate	144 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	10th gen Intel® Core™ i7
Processor model	i7-10750H
Processor cores	6
Processor threads	12
Processor boost frequency	5 GHz
Processor frequency	2.6 GHz
System bus rate	8 GT/s
Processor cache	12 MB
Processor cache type	L3
Processor socket	BGA 1440
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Comet Lake
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2933 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Memory slots (available)	2
ECC	No

Storage

Specification	Value
Total storage capacity	1.51 TB
Storage media	HDD+SSD
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express, NVMe
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 2060 Max-Q
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® UHD Graphics
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x9BC4
Graphics card interface	PCIe x16

Audio

Specification	Value
Audio system	B&O PLAY
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
Miracast	Yes
MIMO	Yes
MIMO type	Multi User MIMO

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	0
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	2

Performance

Specification	Value
Accelerometer	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Island-style keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Pre-installed software	Dropbox; Netflix
Trial software	McAfee LiveSafe, Microsoft Office 365; ExpressVPN; LastPass Premium; Alexa

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Processor ARK ID	201837
Processor package size	42 x 28 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes

Brand-specific features

Specification	Value
HP JumpStart	Yes
HP 3D DriveGuard	Yes
HP CoolSense	Yes
HP Audio Boost	Yes
HP Audio Boost generation	Gen 1
HP speaker type	HP Dual Speakers
HP Audio Switch	Yes
HP Support Assistant	Yes
HP Smart AC Adapter	Yes
HP front camera	HP Wide Vision HD
HP segment	Home

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	3
Battery capacity	52.5 Wh
Battery life (max)	5.25 h
Fast charging	Yes
Fast charging time (50%)	45 min
Battery weight	215 g

Power

Specification	Value
AC adapter power	200 W

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.75 kg
Width	405 mm
Depth	282 mm
Height	25 mm

Packaging data

Specification	Value
Package width	69 mm
Package depth	598 mm
Package height	345 mm
Package weight	4 kg

Other features

Specification	Value
Battery type	Li-ion polymer
