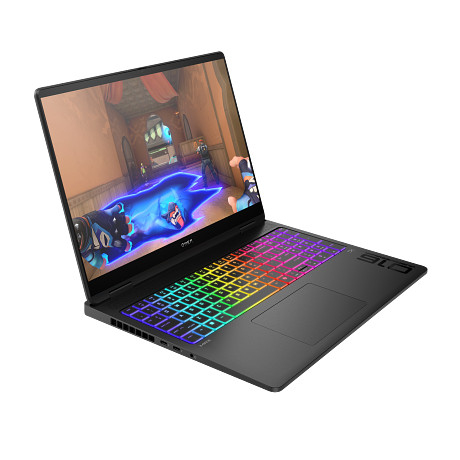

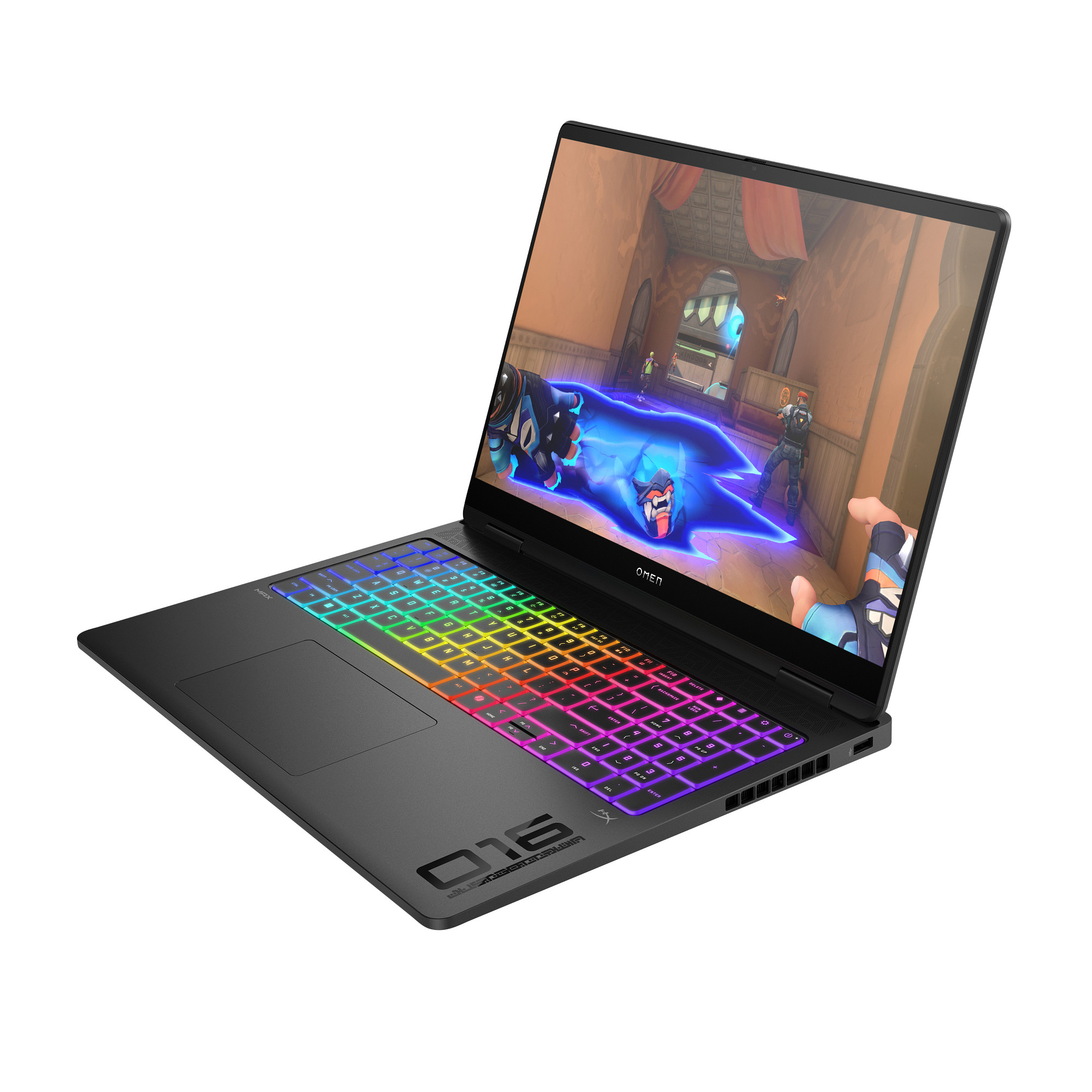

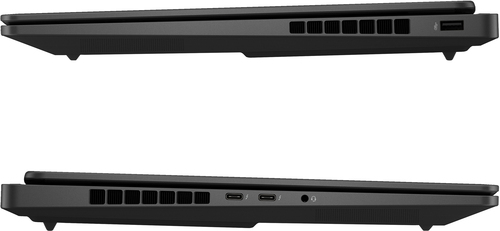

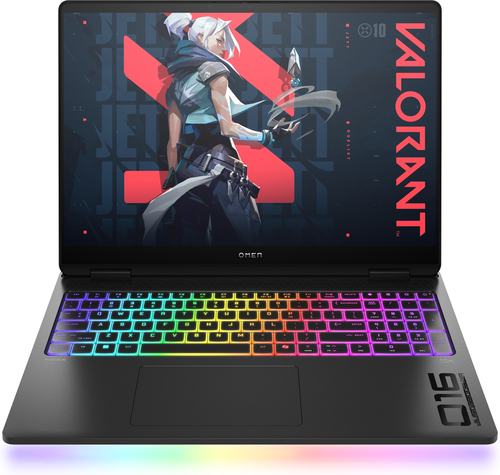

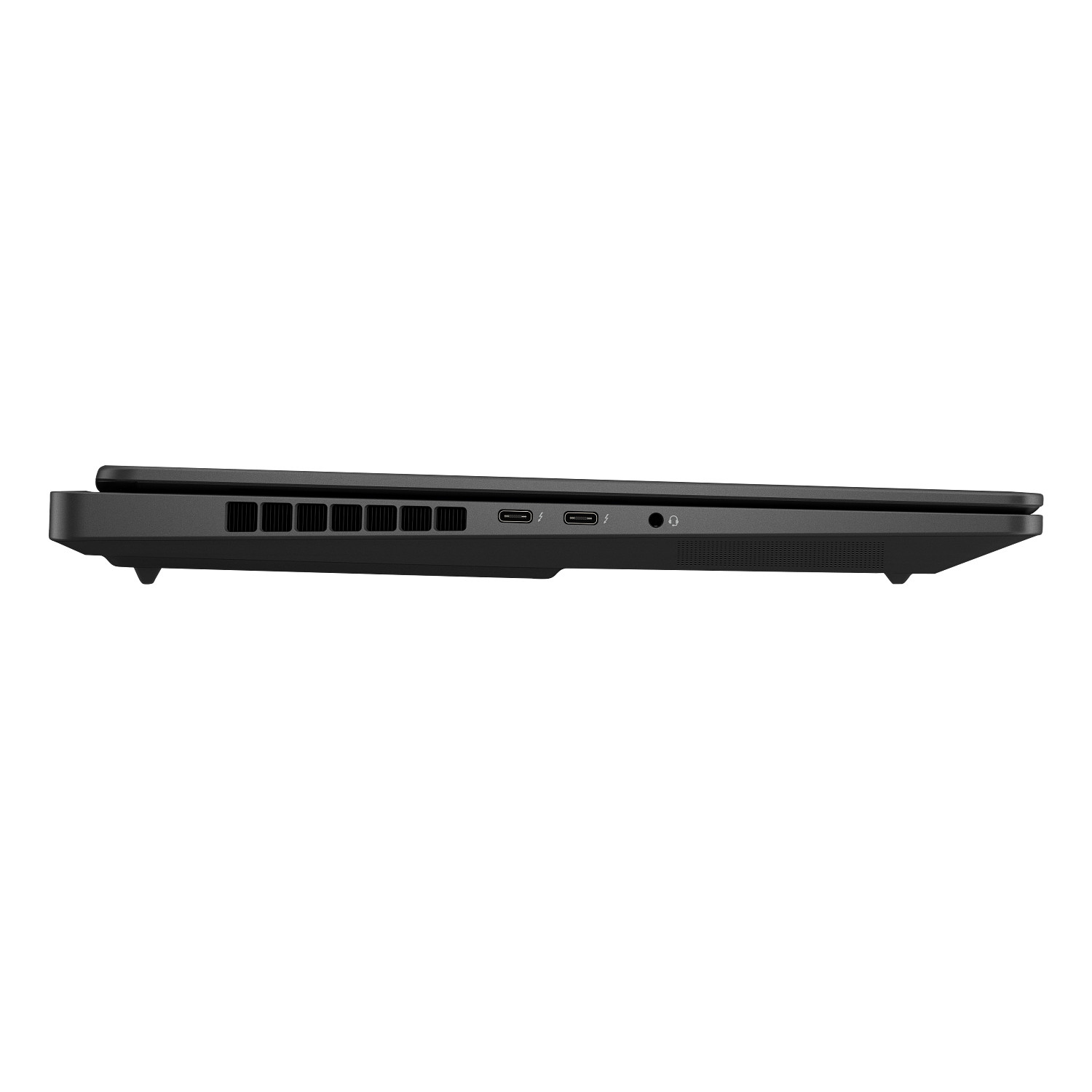

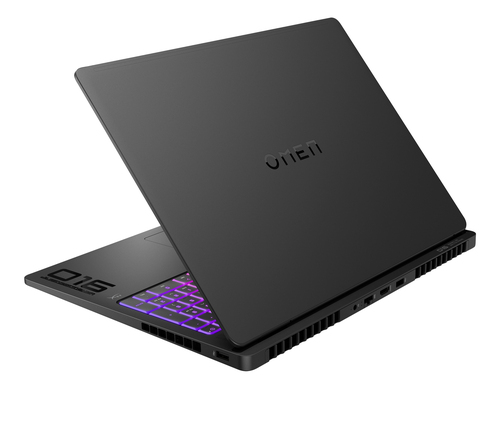

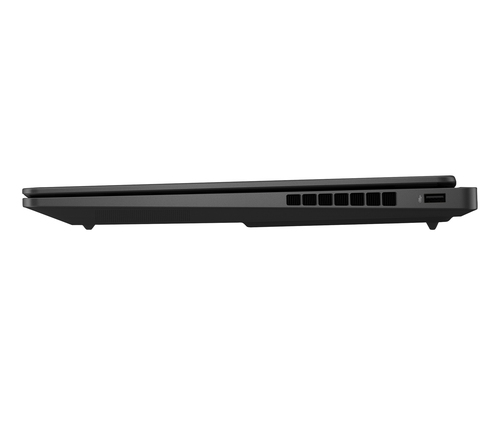

HP OMEN MAX 16-ah0024nb Intel Core Ultra 7 255HX Laptop

OMEN MAX 16-ah0024nb Intel Core Ultra 7 255HX Laptop

40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Wi-Fi 7 (802.11be) Windows 11 Home

Model 16-ah0024nbPart no. BG9G4EA#UUGEAN 199251101748

146 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorIntel Core Ultra 7
Memory32 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 5070

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: Intel Core Ultra 7
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 5070

Brand: HP
Category: Laptop
Model: 16-ah0024nb
Part number: BG9G4EA#UUG
EAN / UPC: 199251101748
Also known as: HP OMEN MAX 16-ah0024nb Intel Core Ultra 7 255HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Wi-Fi 7 (802.11be) Windows 11 Home

Specifications

146 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Shadow black
Form factor	Clamshell
Market positioning	Gaming
Introduction year	2025
Original brand name	HP

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
Native aspect ratio	16:10
Anti-glare screen	Yes
Display bezel technology	Micro-Edge
Display brightness	500 cd/m²
Colour gamut	100%
Display diagonal (metric)	40.6 cm
Low Blue Light technology	Yes
RGB colour space	NTSC
Display response rise/fall	3 ms
Maximum refresh rate	240 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel Core Ultra (Series 2)
Processor model	255HX
Processor cores	20
Processor threads	20
Processor boost frequency	5.2 GHz
Processor frequency	2.4 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Performance-core base frequency	2.4 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	30 MB
Processor cache type	L3
Maximum turbo power	160 W
Processor base power	55 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Memory slots (available)	2
Memory data transfer rate	5600 MT/s

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 5070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
NVIDIA G-SYNC	Yes

Audio

Specification	Value
Audio system	DTS:X Ultra
Built-in speaker(s)	Yes
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 7 BE200
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	2

Performance

Specification	Value
Motherboard chipset	Intel HM870
Temperature sensor	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit zone	4-zone RGB
Full-size keyboard	Yes
Keyboard layout	AZERTY
Keyboard colour name	Shadow black

Software

Specification	Value
Operating system installed	Windows 11 Home

Brand-specific features

Specification	Value
HP Audio Boost	Yes
HP speaker type	HP Dual Speakers
HP Imagepad	Yes
HP front camera	HP TrueVision FHD IR
HP Artificial Intelligence	AI PC
HP segment	Home

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	6
Battery capacity	83 Wh
Fast charging	Yes
Fast charging time (50%)	30 min

Power

Specification	Value
AC adapter power	280 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, Power on, User

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
Sustainability compliance	Yes

Weight & dimensions

Specification	Value
Weight	2.49 kg
Width	356.5 mm
Depth	269 mm
Height (front)	2.29 cm
Height (rear)	2.45 cm

Packaging data

Specification	Value
Package width	94 mm
Package depth	428 mm
Package height	332 mm
Package weight	4.74 kg
