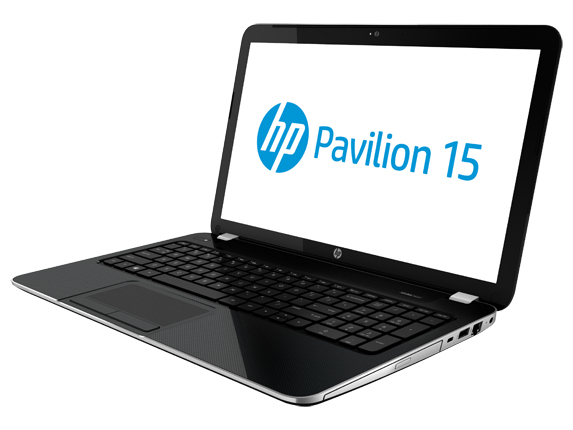

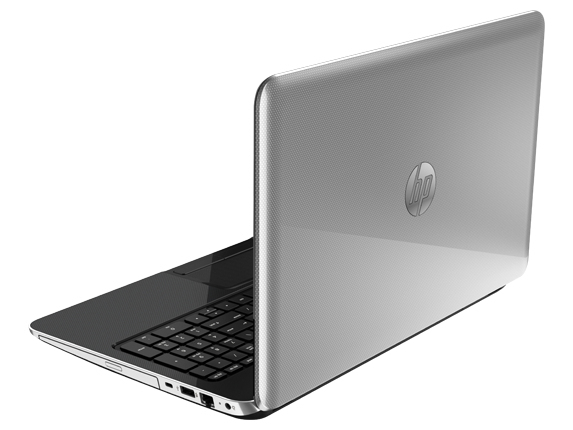

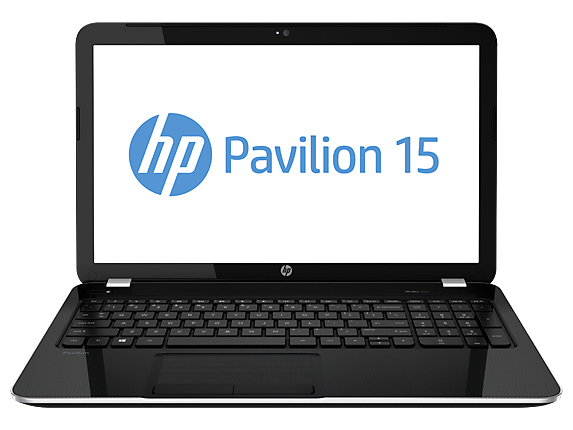

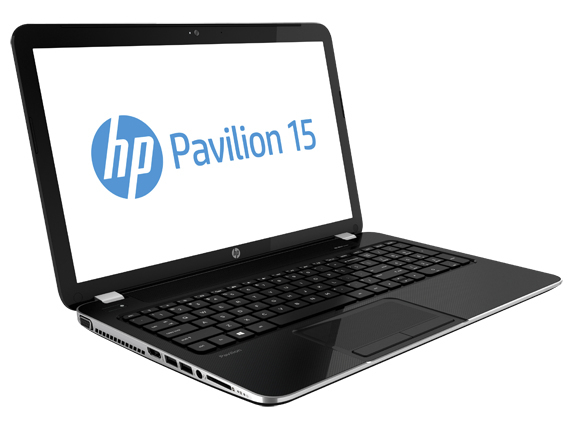

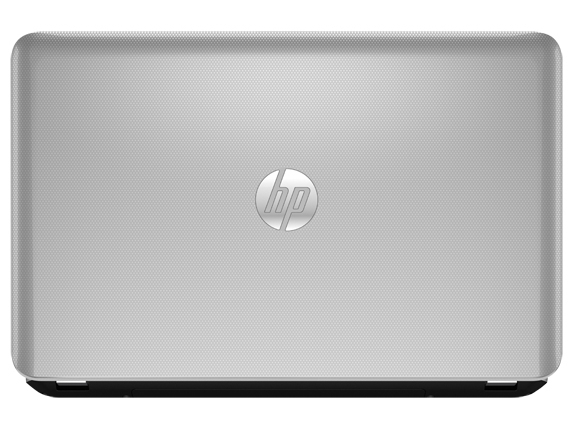

Pavilion 15-n213ed Intel® Core™ i7 i7-4500U Laptop

39.6 cm (15.6") HD 8 GB DDR3-SDRAM 1 TB Hybrid-HDD NVIDIA® GeForce® GT 740M Wi-Fi 4 (802.11n) Windows 8.1

Model 15-n213edPart no. F9G11EA#ABH

201 specifications Checked yesterday

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage1 TB
GraphicsNVIDIA® GeForce® GT 740M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® GT 740M

Brand: HP
Category: Laptop
Model: 15-n213ed
Part number: F9G11EA#ABH
Also known as: HP Pavilion 15-n213ed Intel® Core™ i7 i7-4500U Laptop 39.6 cm (15.6") HD 8 GB DDR3-SDRAM 1 TB Hybrid-HDD NVIDIA® GeForce® GT 740M Wi-Fi 4 (802.11n) Windows 8.1

Specifications

201 specifications in 25 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Silver
Form factor	Clamshell
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	HD
Display number of colours	16.78 million colours
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4500U
Processor cores	2
Processor threads	4
Processor boost frequency	3 GHz
Processor frequency	1.8 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1168
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4500 Mobile series
Processor codename	Haswell
Bus type	DMI2
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	15 W
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	2x4
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 4 GB
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB
Maximum internal memory (64-bit)	8 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	Hybrid-HDD
Number of HDDs installed	1
HDD interface	SATA
HDD speed	5400 RPM
Hybrid-HDD cache type	Flash
Hybrid-HDD capacity	1 TB
Hybrid-HDD cache memory	8 GB
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 740M
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR3
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
On-board graphics card memory	1.7 GB
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12
On-board graphics card ID	0xA16
Number of discrete graphics cards installed	1
Number of discrete graphics cards supported	1

Audio

Specification	Value
Audio system	DTS Sound +
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution	1280 x 720 pixels

Optical drive

Specification	Value
LightScribe	No
Disc types supported	CD, DVD

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
DVI port	No
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Mini HDMI ports quantity	0
Micro HDMI ports quantity	0
Mini VGA ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Total number of SATA connectors	4
Number of SATA III connectors	4

Performance

Specification	Value
Motherboard chipset	Intel® HM87
Accelerometer	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Island-style keyboard	Yes
Full-size keyboard	Yes
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel ME Firmware Version	9.5
Intel Rapid Storage Technology	Yes
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	Yes
Intel Smart Connect Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	75460
Processor code	SR16Z
Processor package size	40 x 24 x 1.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	41 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V
Power auto-sensing	Yes
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3050 m
Non-operating altitude	0 - 4570 m
