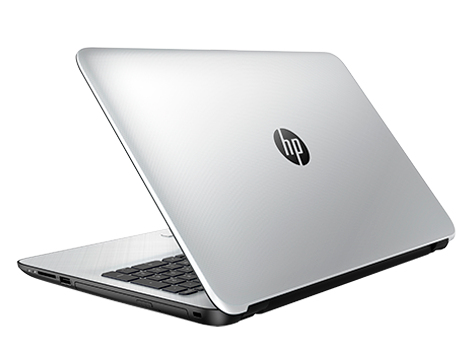

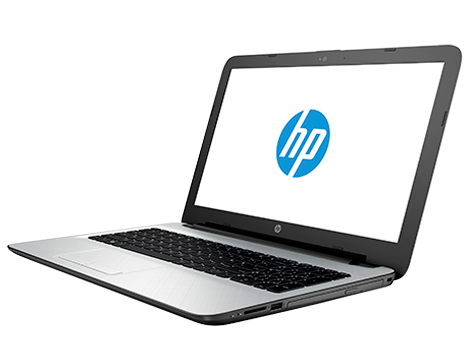

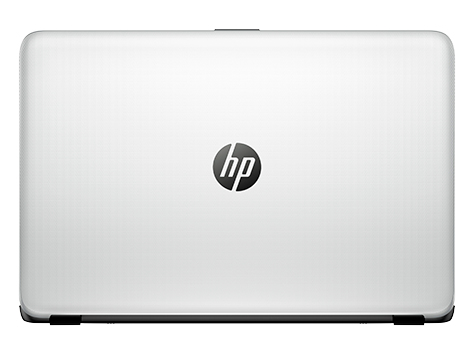

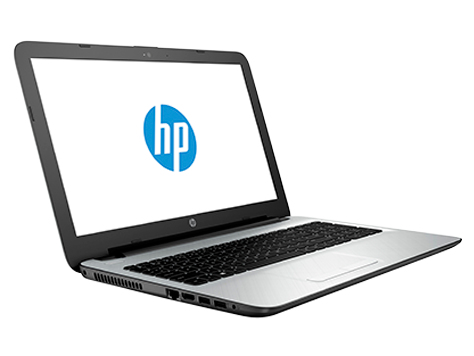

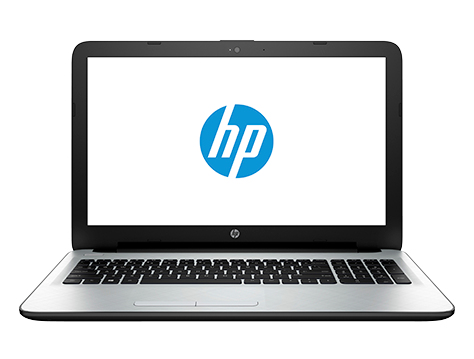

HP 15-ac654tu Intel® Pentium® N3700 Laptop

39.6 cm (15.6") Full HD 4 GB DDR3L-SDRAM 500 GB HDD FreeDOS Silver

Model 15-ac654tuPart no. V5E16PA

155 specifications Checked 2 days ago

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Pentium®
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Pentium®
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: HP
Category: Laptop
Model: 15-ac654tu
Part number: V5E16PA
Also known as: HP 15-ac654tu Intel® Pentium® N3700 Laptop 39.6 cm (15.6") Full HD 4 GB DDR3L-SDRAM 500 GB HDD FreeDOS Silver

Specifications

155 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Form factor	Clamshell
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	SVA
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	N3700
Processor cores	4
Processor threads	4
Processor boost frequency	2.4 GHz
Processor frequency	1.6 GHz
System bus rate	2.5 GT/s
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 1170
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel® Pentium N3000 Series for Mobile
Processor codename	Braswell
Stepping	C0
Thermal Design Power (TDP)	6 W
Scenario Design Power (SDP)	4 W
Tjunction	90 °C
Maximum number of PCI Express lanes	4
PCI Express configurations	1x2, 1x4, 2x2, 2x1, 4x1
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 4 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Total HDDs capacity	500 GB
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Maximum on-board graphics card memory	8 GB
Number of execution units	16
On-board graphics card base frequency	400 MHz
On-board graphics card burst frequency	700 MHz
On-board graphics card DirectX version	Yes
Graphics card Open GL support	Yes

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes
Audio decoders	DTS Studio Sound

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
Integrated 4G WiMAX	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Combo headphone/mic port	Yes
Docking connector	No
Total number of SATA connectors	2
Number of SATA III connectors	2

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Island-style keyboard	Yes
Full-size keyboard	Yes

Software

Specification	Value
Operating system installed	FreeDOS

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel HD Graphics	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology	No
Intel Smart Connect Technology version	0.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	No
Intel® Pro Wireless Display (Intel® Pro WiDi)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	87261
Processor code	SR29E
Processor package size	25 x 27 mm
Thermal Monitoring Technologies	Yes
UART	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	41 Wh

Power

Specification	Value
AC adapter power	45 W
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	2.19 kg
Width	384.3 mm
Depth	254.6 mm
Height	24.3 mm

Packaging data

Specification	Value
Package width	520 mm
Package depth	305 mm
Package height	69 mm
Package weight	2.93 kg

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
Quick start guide	Yes
Warranty card	Yes
