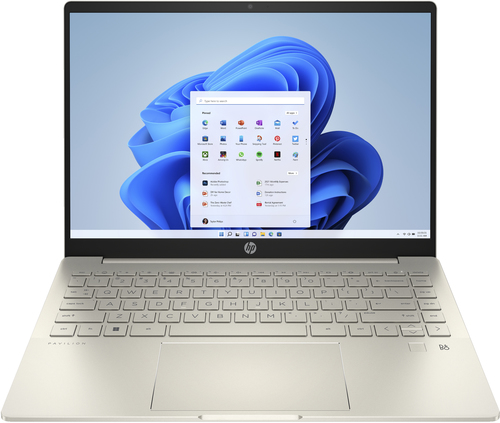

HP Pavilion Plus 14-eh0017od Intel® Core™ i7 i7-12700H Laptop

Pavilion Plus 14-eh0017od Intel® Core™ i7 i7-12700H Laptop

35.6 cm (14") 2.8K 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Gold

Model 14-eh0017odPart no. 14-EH0017OD

109 specifications Checked today

Display35.6 cm (14")
Resolution2880 x 1800 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 2880 x 1800 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: HP
Category: Laptop
Model: 14-eh0017od
Part number: 14-EH0017OD
Also known as: HP Pavilion Plus 14-eh0017od Intel® Core™ i7 i7-12700H Laptop 35.6 cm (14") 2.8K 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Gold

Specifications

109 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Gold
Form factor	Clamshell
Market positioning	Everyday
Introduction year	2022

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	2880 x 1800 pixels
Touchscreen	No
HD type	2.8K
Display technology marketing name	UWVA
Panel type	UWVA
LED backlight	Yes
Native aspect ratio	16:10
Display brightness	500 cd/m²
Colour gamut	100%
Display diagonal (metric)	35.6 cm
RGB colour space	DCI-P3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-12700H
Processor cores	14
Processor boost frequency	4.7 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Maximum turbo power	115 W
Processor base power	45 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio system	Bang & Olufsen
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	5 MP

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Full-size keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Brand-specific features

Specification	Value
HP Audio Boost	Yes
HP speaker type	HP Dual Speakers
HP Imagepad	Yes
HP front camera	HP TrueVision 5MP
HP segment	Home

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	3
Battery capacity	51 Wh
Fast charging	Yes
Fast charging time (50%)	30 min
Battery weight	210 g

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	Yes

Weight & dimensions

Specification	Value
Weight	1.4 kg
Width	313.5 mm
Depth	224.2 mm
Height (front)	1.65 cm
Height (rear)	1.84 cm

Packaging data

Specification	Value
Package width	69 mm
Package depth	483 mm
Package height	305 mm
Package weight	2.19 kg
