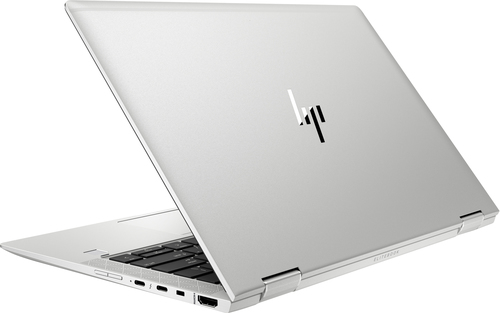

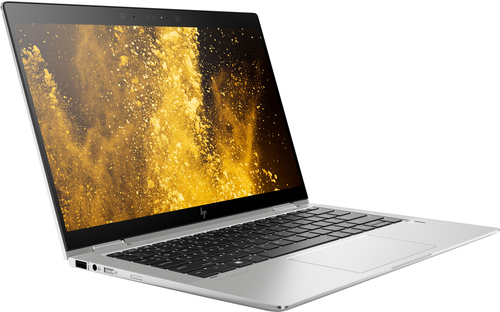

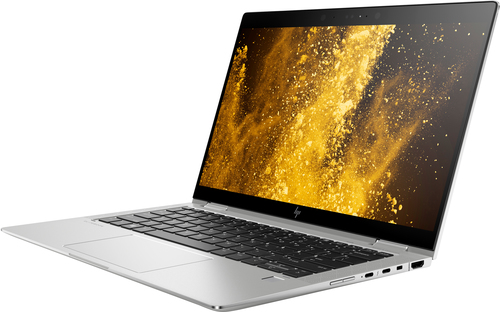

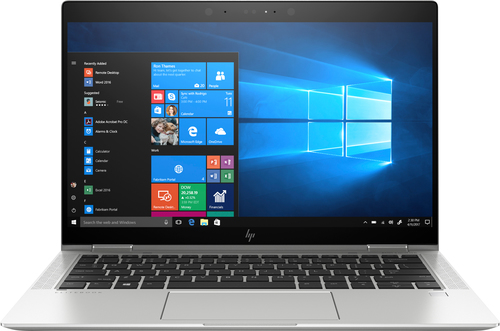

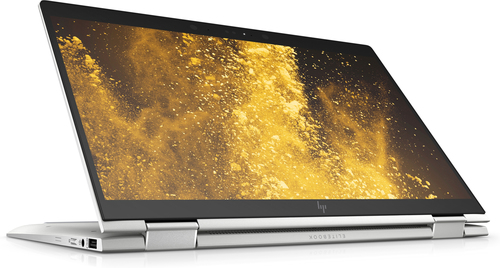

HP 1030 G3 + Thunderbolt Dock 120W G2

Model 1030 G3 + Thunderbolt Dock 120W G2Part no. 4QY26EA+2UK37AA

169 specifications Checked 4 days ago

Display33.8 cm (13.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: HP
Category: Laptop
Model: 1030 G3 + Thunderbolt Dock 120W G2
Part numbers: 4QY26EA+2UK37AA, 4QY24EA+2UK37AA, 4QY25EA+2UK37AA, 4QY23EA+2UK37AA, 4QY27EA+2UK37AA, 4QY22EA+2UK37AA
Also known as: HP EliteBook x360 1030 G3 + Thunderbolt Dock 120W G2 Intel® Core™ i5 i5-8250U Hybrid (2-in-1) 33.8 cm (13.3") Touchscreen Full HD 16 GB LPDDR3-SDRAM 512 GB SSD

Specifications

169 specifications in 22 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Silver
Form factor	Convertible (Folder)
Country of origin	China

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display glass type	Gorilla Glass
Display brightness	700 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model	i5-8250U
Processor cores	4
Processor threads	8
Processor boost frequency	3.4 GHz
Processor frequency	1.6 GHz
System bus rate	4 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	BGA 1356
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake R
Bus type	OPI
Stepping	Y0
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	1.8 GHz
Configurable TDP-up	25 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	2133 MHz
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 620
Maximum on-board graphics card memory	32 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x5917

Audio

Specification	Value
Audio system	Bang & Olufsen
Number of built-in speakers	4
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera signal format	1080p

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	4G
4G standard	LTE
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	0
Thunderbolt ports quantity	2
Thunderbolt 3 ports quantity	0
Combo headphone/mic port	Yes

Performance

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes
Proximity sensor	Yes

Keyboard

Specification	Value
Pointing device	Clickpad
Keyboard backlit	Yes
Numeric keypad	No
Spill-resistant keyboard	Yes
Full-size keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	124967
Processor code	SR3LA
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Brand-specific features

Specification	Value
HP JumpStart	Yes
HP ePrint	Yes
HP Recovery Manager	Yes
HP Support Assistant	Yes
HP Smart AC Adapter	Yes
HP front camera	HP Webcam
HP Security tools	HP BIOSphere Gen4; HP Device Access Manager; HP DriveLock and Automatic DriveLock; HP Fingerprint Sensor; HP Password Manager; HP Secure Erase; HP Security Manager,HP Sure Click; HP SureStart Gen4; HP Wireless Wakeup; HP Sure Recover; HP Sure Run
HP Management tools	HP BIOS Config Utility (BCU); HP Client Catalog; HP Driver Packs; HP System Software Manager (SSM); HP Manageability Integration Kit Gen2
HP Software provided	HP Hotkey Support,HP LAN Protection; HP Noise Cancellation Software; HP Recovery Manager; HP Support Assistant; HP Velocity; Native Miracast support; HP PhoneWise
HP segment	Business

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	56.2 Wh
Battery life (max)	18 h

Power

Specification	Value
AC adapter power	65 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes

Docking station

Specification	Value
Docking station connecting interface	USB Type-C
Docking station Ethernet LAN	Yes
Docking station USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	5
Docking station VGA (D-Sub) port	Yes
Docking station DisplayPort	Yes

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.25 kg
Width	305.8 mm
Depth	205 mm
Height	15.8 mm

Packaging content

Specification	Value
AC adapter included	Yes
Docking station included	Yes
