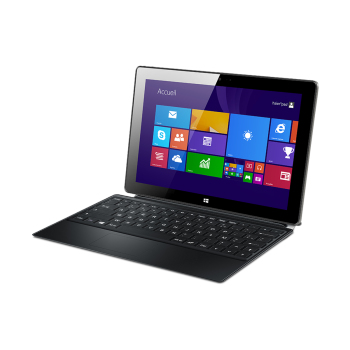

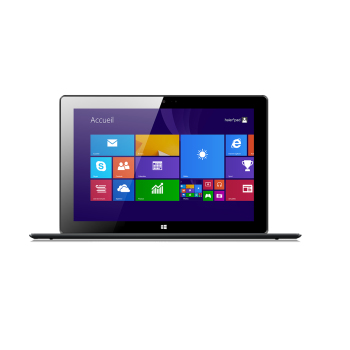

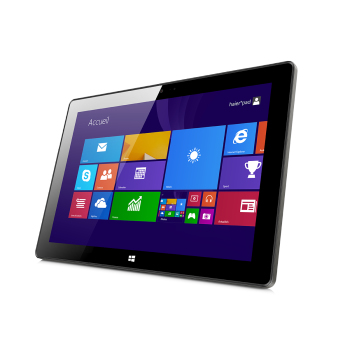

Haier W1048 Intel Atom® Z3740D Hybrid (2-in-1)

25.6 cm (10.1") Touchscreen 2 GB DDR3-SDRAM 32 GB Flash Windows 8.1 Aluminium, Grey

Model W1048Part no. 6942509781124EAN 6942509781124

114 specifications Checked 3 days ago

Display25.6 cm (10.1")
Resolution1200 x 800 pixels
ProcessorIntel Atom®
Memory2 GB
Storage32 GB
Camera5 MP

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1200 x 800 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 32 GB
Camera: 5 MP

Brand: Haier
Category: Laptop
Model: W1048
Part number: 6942509781124
EAN / UPC: 6942509781124
Also known as: Haier W1048 Intel Atom® Z3740D Hybrid (2-in-1) 25.6 cm (10.1") Touchscreen 2 GB DDR3-SDRAM 32 GB Flash Windows 8.1 Aluminium, Grey

Specifications

114 specifications in 21 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Aluminium, Grey
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1200 x 800 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	Not supported
Touch technology	Multi-touch
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3740D
Processor cores	4
Processor threads	4
Processor boost frequency	1.83 GHz
Processor frequency	1.33 GHz
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 1380
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Atom Z3700 Series
Processor codename	Bay Trail
FSB Parity	No
Stepping	B3
Thermal Design Power (TDP)	2.2 W
Scenario Design Power (SDP)	2.2 W
Tjunction	90 °C
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM

Storage

Specification	Value
Total storage capacity	32 GB
Storage media	Flash
Flash memory	32 GB
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	313 MHz
On-board graphics card burst frequency	688 MHz

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP
Rear camera	Yes
Rear camera resolution (numeric)	5 MP

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	0
DVI port	No
Thunderbolt ports quantity	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
GPS (satellite)	No

Keyboard

Specification	Value
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 8.1

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	No
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	78416
Processor code	SR1S0
Processor package size	17 x 17 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	Yes

Battery

Specification	Value
Battery capacity	7900 mAh

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Weight & dimensions

Specification	Value
Weight	633 g
Width	258 mm
Depth	11.7 mm
Height	173 mm

Packaging content

Specification	Value

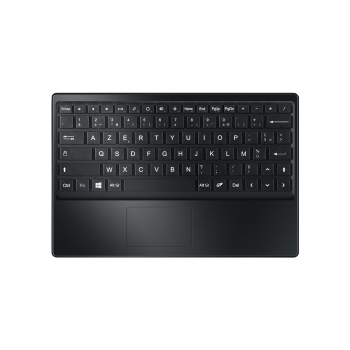

Keyboard included	Yes

Other features

Specification	Value
64-bit computing	Yes
