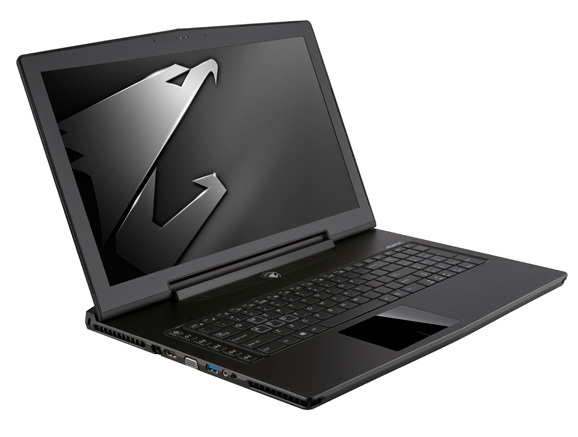

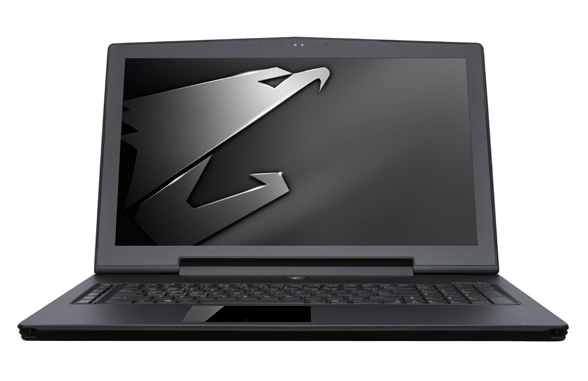

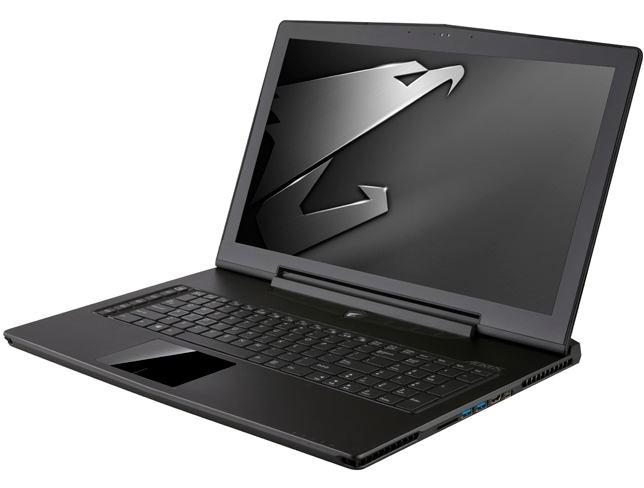

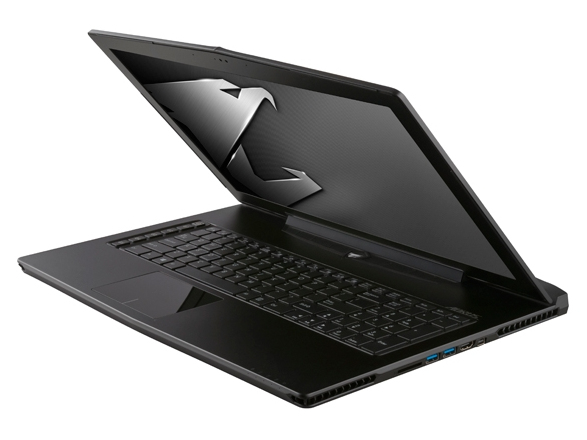

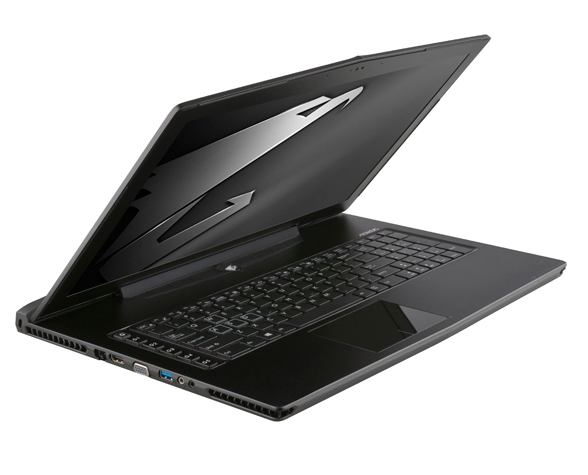

GIGABYTE X7 Pro SYNC-BW1

Model X7 Pro SYNC-BW1Part no. X7 PRO SYNC-BW1

171 specifications Checked 3 days ago

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1.51 TB
GraphicsNVIDIA® GeForce® GTX 970M

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1.51 TB
Graphics: NVIDIA® GeForce® GTX 970M

Brand: GIGABYTE
Category: Laptop
Model: X7 Pro SYNC-BW1
Part number: X7 PRO SYNC-BW1
Also known as: GIGABYTE X7 Pro SYNC-BW1 Intel® Core™ i7 i7-5850HQ Laptop 43.9 cm (17.3") Full HD 16 GB DDR3L-SDRAM 1.51 TB HDD+SSD NVIDIA® GeForce® GTX 970M Windows 8.1 Black

Specifications

171 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Aluminium
Market positioning	Gaming

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	5th gen Intel® Core™ i7
Processor model	i7-5850HQ
Processor cores	4
Processor threads	8
Processor boost frequency	3.6 GHz
Processor frequency	2.7 GHz
System bus rate	5 GT/s
Processor cache	6 MB
Processor cache type	L3
Processor socket	BGA 1364
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-5800 Mobile Series
Processor codename	Broadwell
Bus type	DMI2
FSB Parity	No
Stepping	G0
Thermal Design Power (TDP)	47 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	2x4, 1x8, 2x8, 1x16
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1866 MHz
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1.51 TB
Storage media	HDD+SSD
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	7200 RPM
HDD size	2.5"
Number of SSDs installed	2
SSD capacity	256 GB
SSD interface	mSATA
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 970M
Discrete graphics card memory	3 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® Iris™ Pro Graphics
On-board graphics card model	Intel® Iris™ Pro Graphics 6200
Maximum on-board graphics card memory	32 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	11.2
On-board graphics card OpenGL version	4.3
On-board graphics card ID	0x1622
Graphics card Open GL support	Yes

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	2 W
Built-in subwoofer	Yes
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	4.0

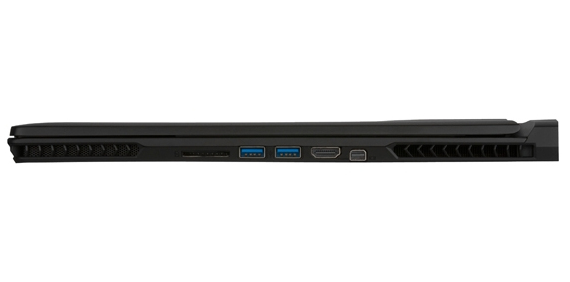

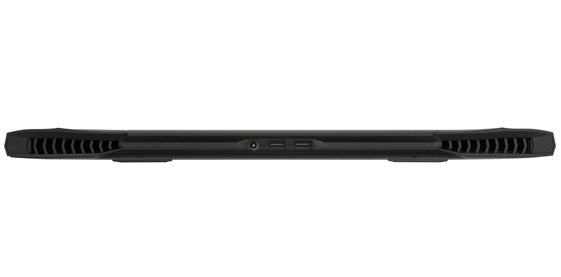

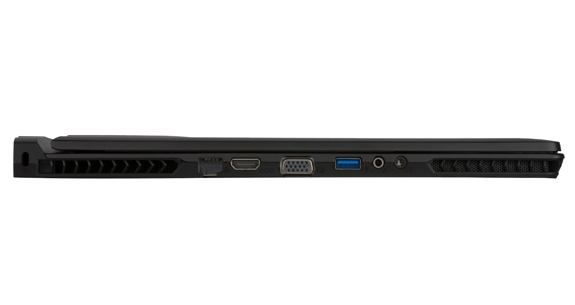

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	Yes
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Motherboard chipset	Intel HM97

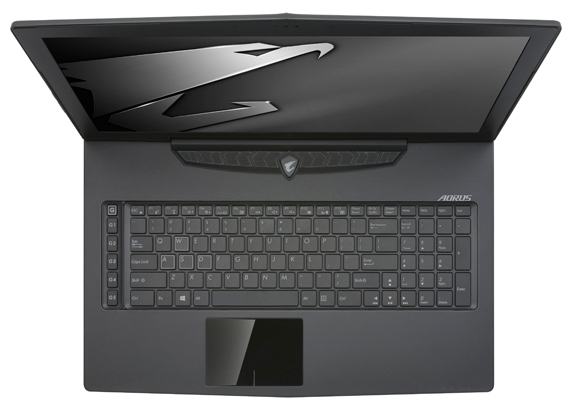

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel HD Graphics	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Virtualization Technology (Intel® VT)	VT-x
Processor ARK ID	87719
Processor code	SR2BH
Processor package size	37.5 x 32 x 1.8 mm
Supported instruction sets	SSE4.1, AVX 2.0, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	73.26 Wh

Power

Specification	Value
AC adapter power	200 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Weight & dimensions

Specification	Value
Weight	3 kg
Width	428 mm
Depth	305 mm
Height	22.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Quick start guide	Yes
Warranty card	Yes
