GIGABYTE AORUS 17X AZF-D5UK665SH

AORUS 17X AZF-D5UK665SH

Model AORUS 17X AZF-D5UK665SHEAN 4719331756376

93 specifications Checked today

Display43.9 cm (17.3")
Resolution2560 x 1440 pixels
ProcessorIntel® Core™ i9
Memory32 GB
Storage2 TB
GraphicsNVIDIA GeForce RTX 4090

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 2560 x 1440 pixels
Processor: Intel® Core™ i9
Memory: 32 GB
Storage: 2 TB
Graphics: NVIDIA GeForce RTX 4090

Brand: GIGABYTE
Category: Laptop
Model: AORUS 17X AZF-D5UK665SH
Part number: AORUS 17X AZF-D5UK665SH
EAN / UPC: 4719331756376
Also known as: GIGABYTE AORUS 17X AZF Gaming Laptop - 17.3 Inch, 240Hz QHD, i9-13980HX, RTX 4090 GPU, 32GB DDR5 5600MHz, 2x 1TB Gen4 SDD, Windows 11 Home, 2 Year Warranty, AOR

Specifications

93 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Country of origin	China

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	2560 x 1440 pixels
Touchscreen	No
HD type	Quad HD
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	240 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	13th gen Intel® Core™ i9
Processor model	i9-13980HX
Processor cores	24
Processor boost frequency	5.6 GHz
Performance cores	8
Efficient cores	16
Performance-core Max Turbo Frequency	5.6 GHz
Efficient-core Max Turbo Frequency	4 GHz
Processor cache	36 MB
Processor cache type	Smart Cache
Maximum turbo power	157 W
Processor base power	55 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	SSD
Total SSDs capacity	2 TB
Number of SSDs installed	2
SSD capacity	1 TB
SSD interface	PCI Express
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 4090
Discrete graphics card memory	16 GB
Discrete graphics memory type	GDDR6
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio system	DTS:X Ultra
Number of built-in speakers	2
Speaker power	2 W

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.2

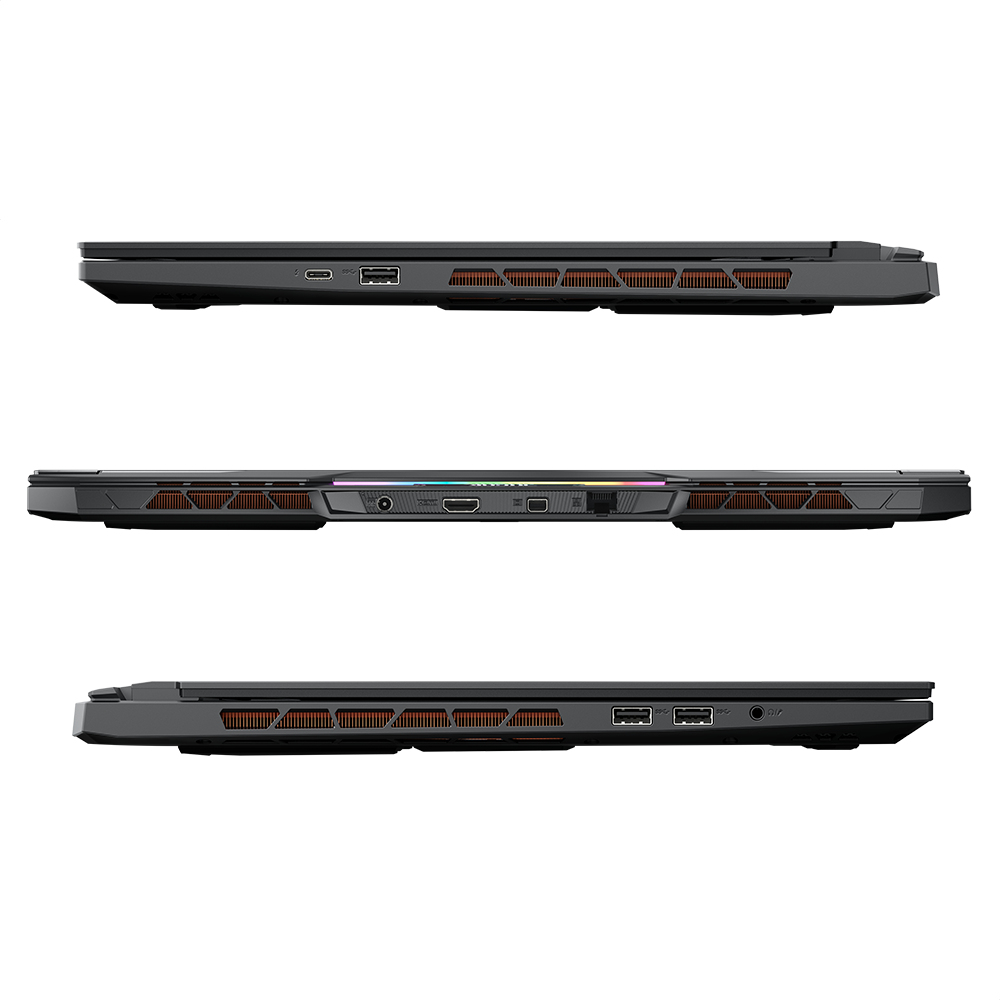

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Mini DisplayPorts quantity	1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Mini HDMI ports quantity	1
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	Per-key RGB

Software

Specification	Value
Operating system installed	Windows 11 Home

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	99 Wh
Battery weight	450 g

Power

Specification	Value
AC adapter power	330 W
DC-in jack	Yes

Security

Specification	Value
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	2.8 kg
Width	396 mm
Depth	293 mm
Height	21.8 mm

Packaging data

Specification	Value
Package width	85 mm
Package depth	587 mm
Package height	384 mm
Package weight	5.68 kg

Packaging content

Specification	Value
Number of batteries	1

Logistics data

Specification	Value
Products per shipping (inner) case	1 pc(s)

Other features

Specification	Value
Batteries included	Yes
Warranty period	2 year(s)
