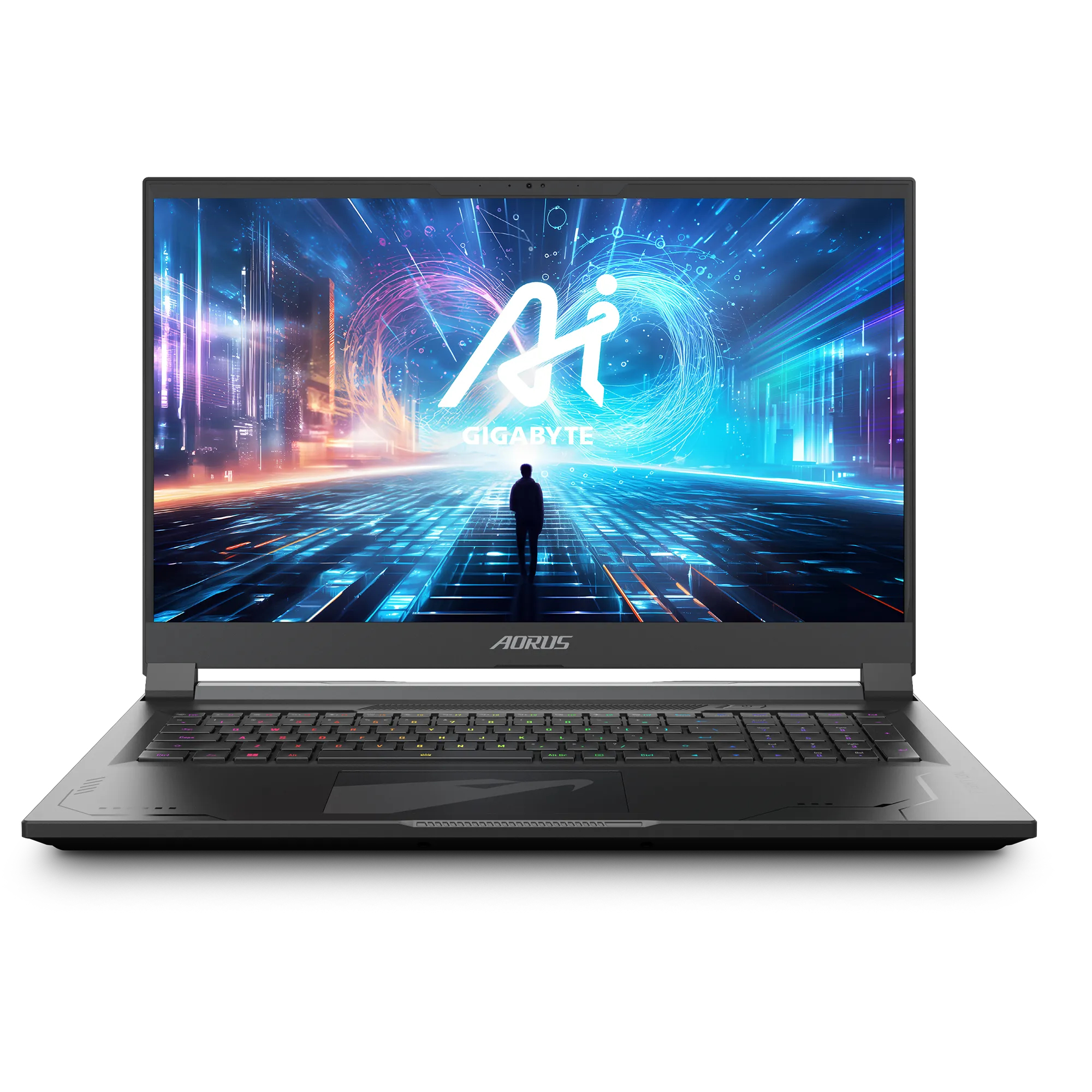

GIGABYTE 17X AZG-6H

17X AZG-6H

Model 17X AZG-6HPart no. 9RX7XAZGIAMHH1ES001EAN 4719331757809

101 specifications Checked today

Display43.9 cm (17.3")
Resolution2560 x 1440 pixels
ProcessorIntel® Core™ i9
Memory32 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 4090

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 2560 x 1440 pixels
Processor: Intel® Core™ i9
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 4090

Brand: GIGABYTE
Category: Laptop
Model: 17X AZG-6H
Part number: 9RX7XAZGIAMHH1ES001
EAN / UPC: 4719331757809
Also known as: GIGABYTE AORUS 17X AZG-6H Intel® Core™ i9 i9-14900HX Laptop 43.9 cm (17.3") Quad HD 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4090 Wi-Fi 6E (802.11ax) Window

Specifications

101 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming
Introduction year	2024
Country of origin	China

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	2560 x 1440 pixels
Touchscreen	No
HD type	Quad HD
Native aspect ratio	16:9
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	240 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	Intel® Core™ i9 (14th gen)
Processor model	i9-14900HX
Processor cores	24
Processor boost frequency	5.8 GHz
Performance cores	8
Efficient cores	16
Performance-core Max Turbo Frequency	5.8 GHz
Efficient-core Max Turbo Frequency	4.1 GHz
Performance-core base frequency	2.2 GHz
Efficient-core base frequency	1.6 GHz
Processor cache	36 MB
Maximum turbo power	157 W
Processor base power	55 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 4090
Discrete graphics card memory	16 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
NVIDIA G-SYNC	Yes

Audio

Specification	Value
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2.5 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

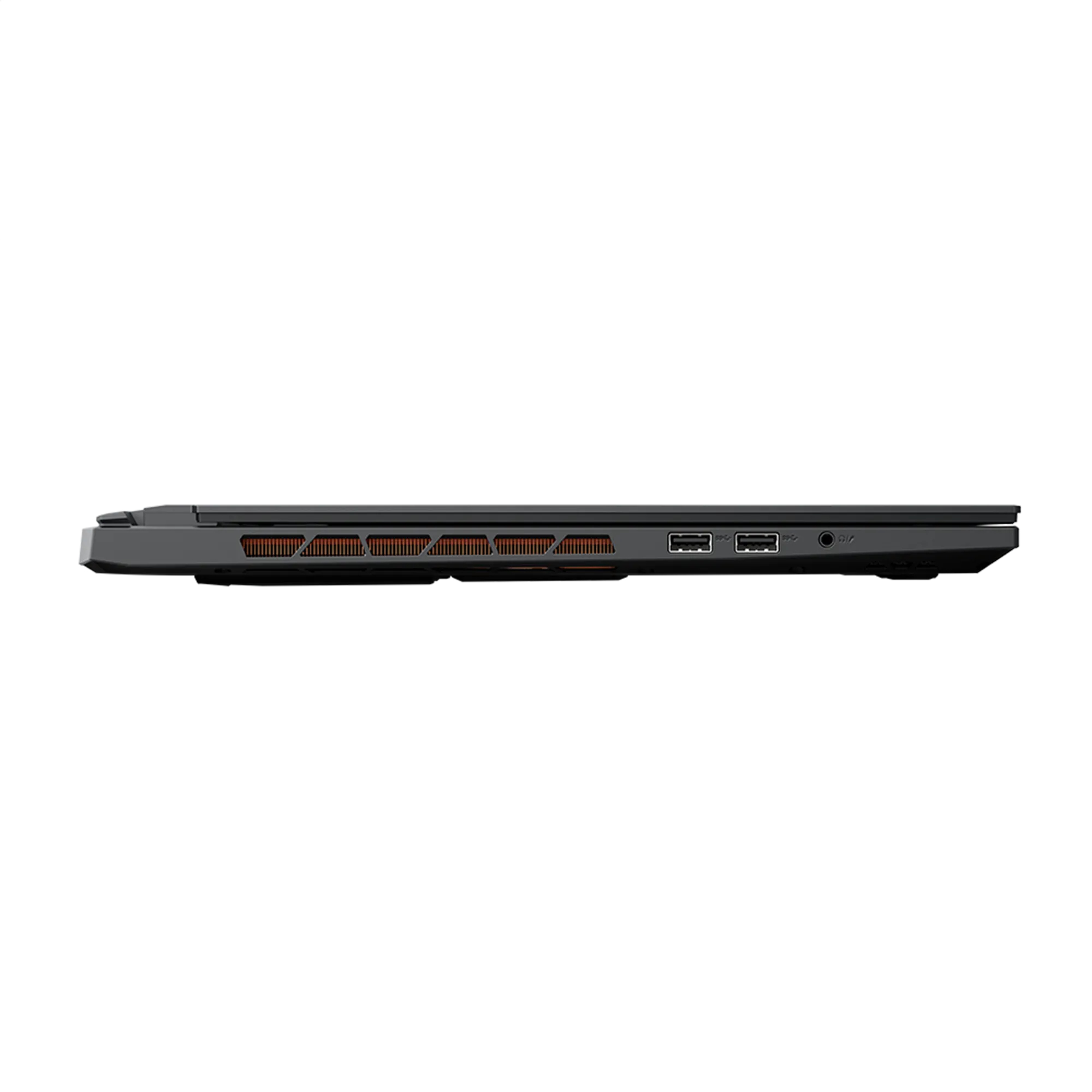

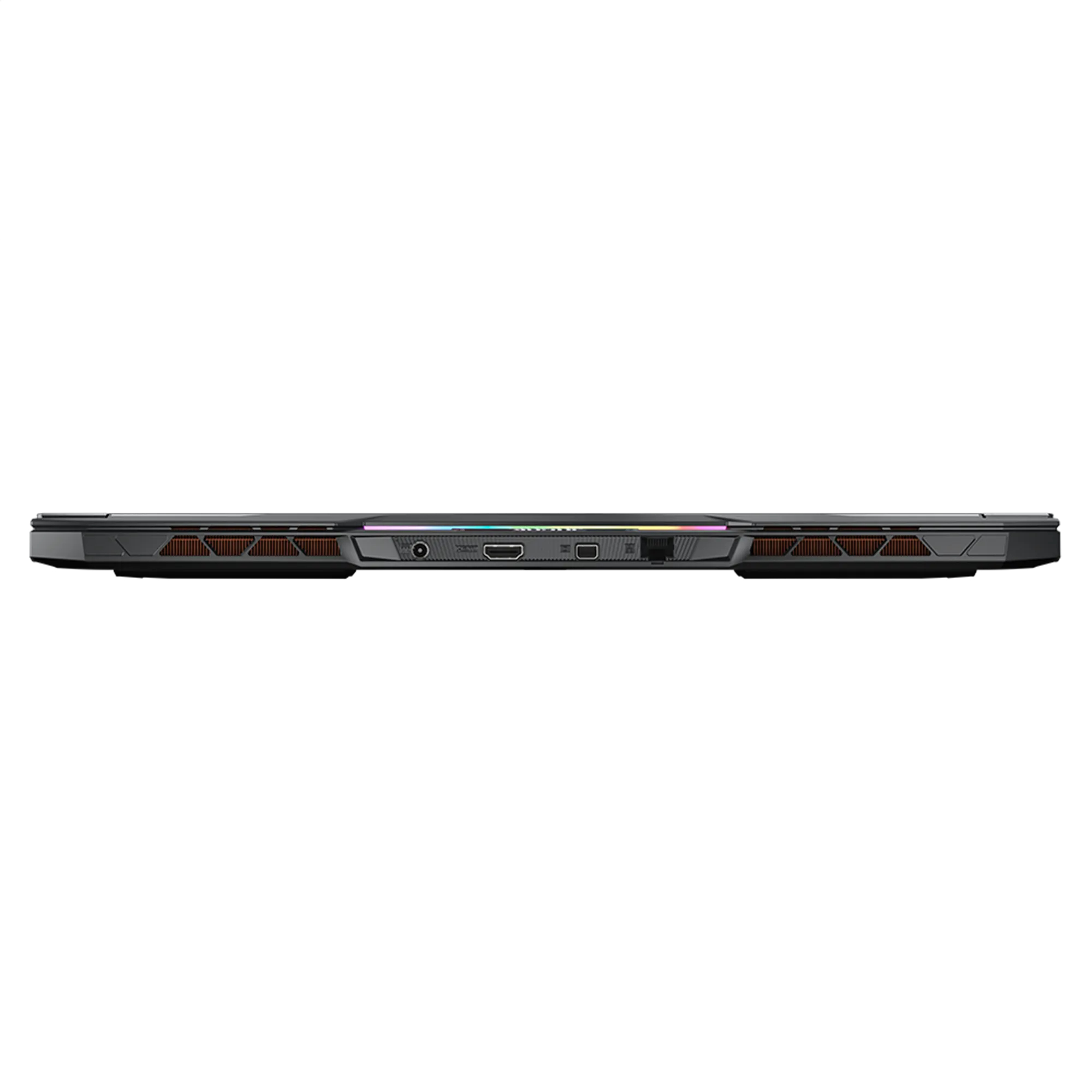

Ports & interfaces

Specification	Value
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Mini DisplayPorts quantity	1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes

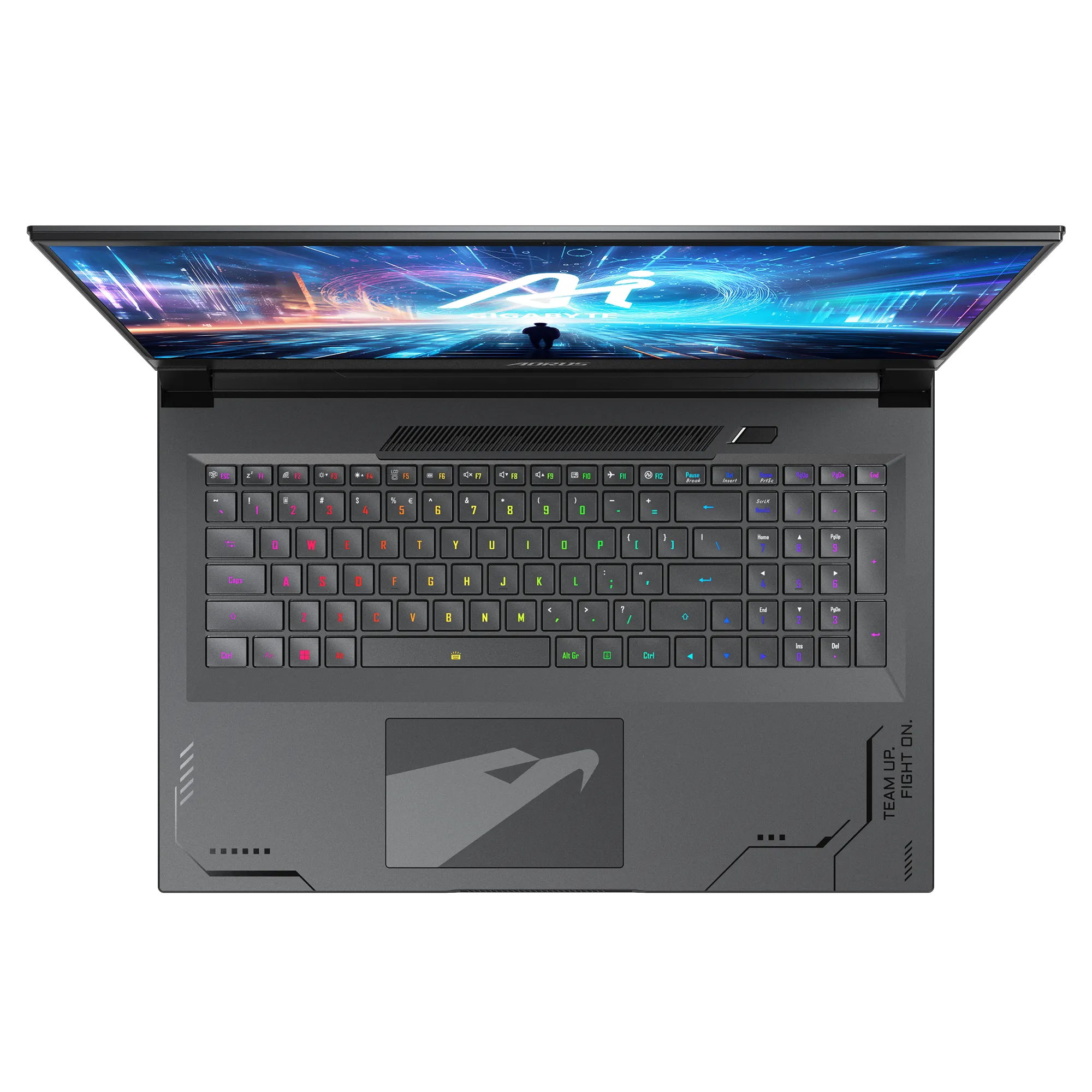

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	Per-key RGB

Software

Specification	Value
Operating system installed	Windows 11 Pro

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	99 Wh

Power

Specification	Value
AC adapter power	330 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Face recognition	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	2.8 kg
Width	396 mm
Depth	293 mm
Height	21.8 mm

Packaging content

Specification	Value
Number of batteries	1

Other features

Specification	Value
Batteries included	Yes
Quantity	1
