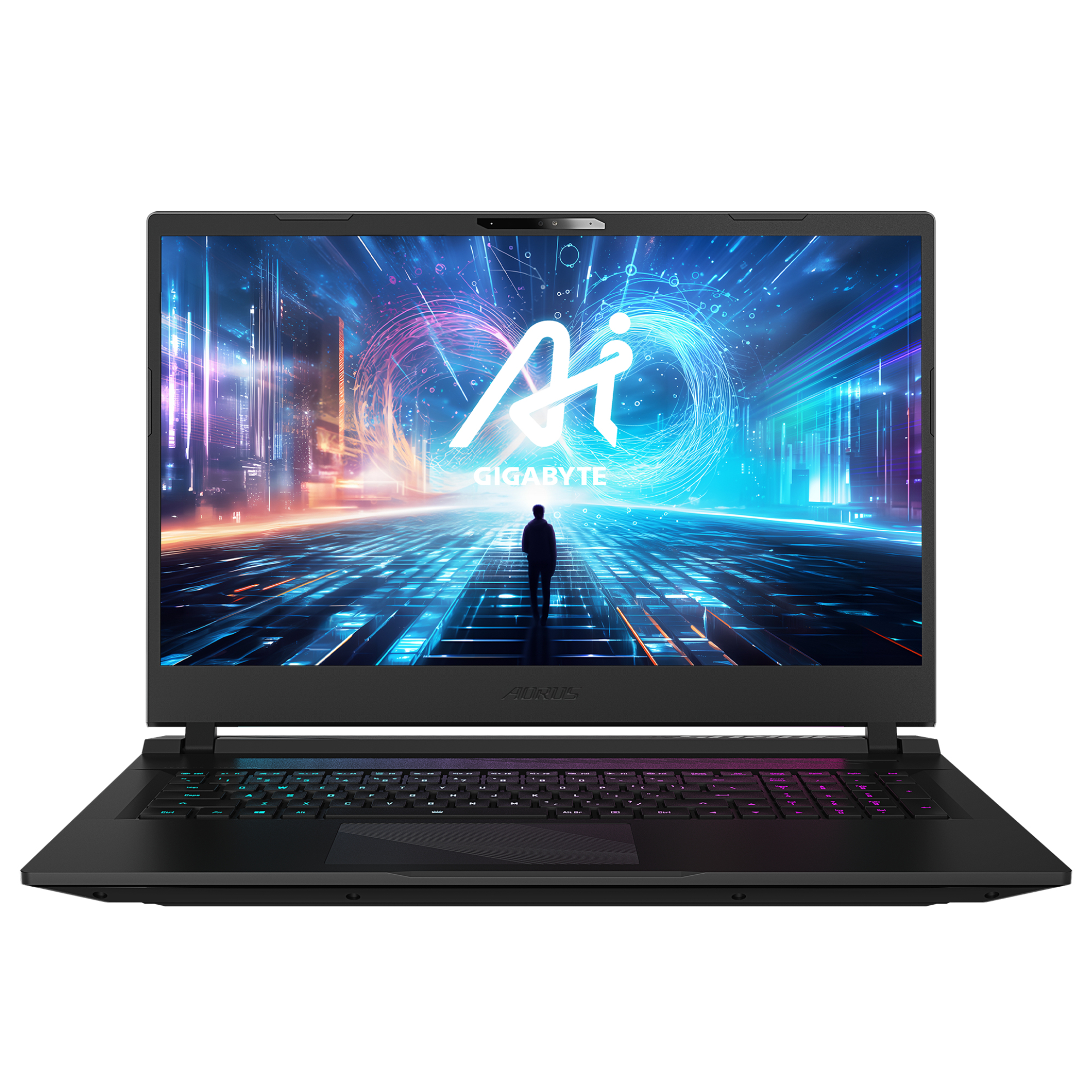

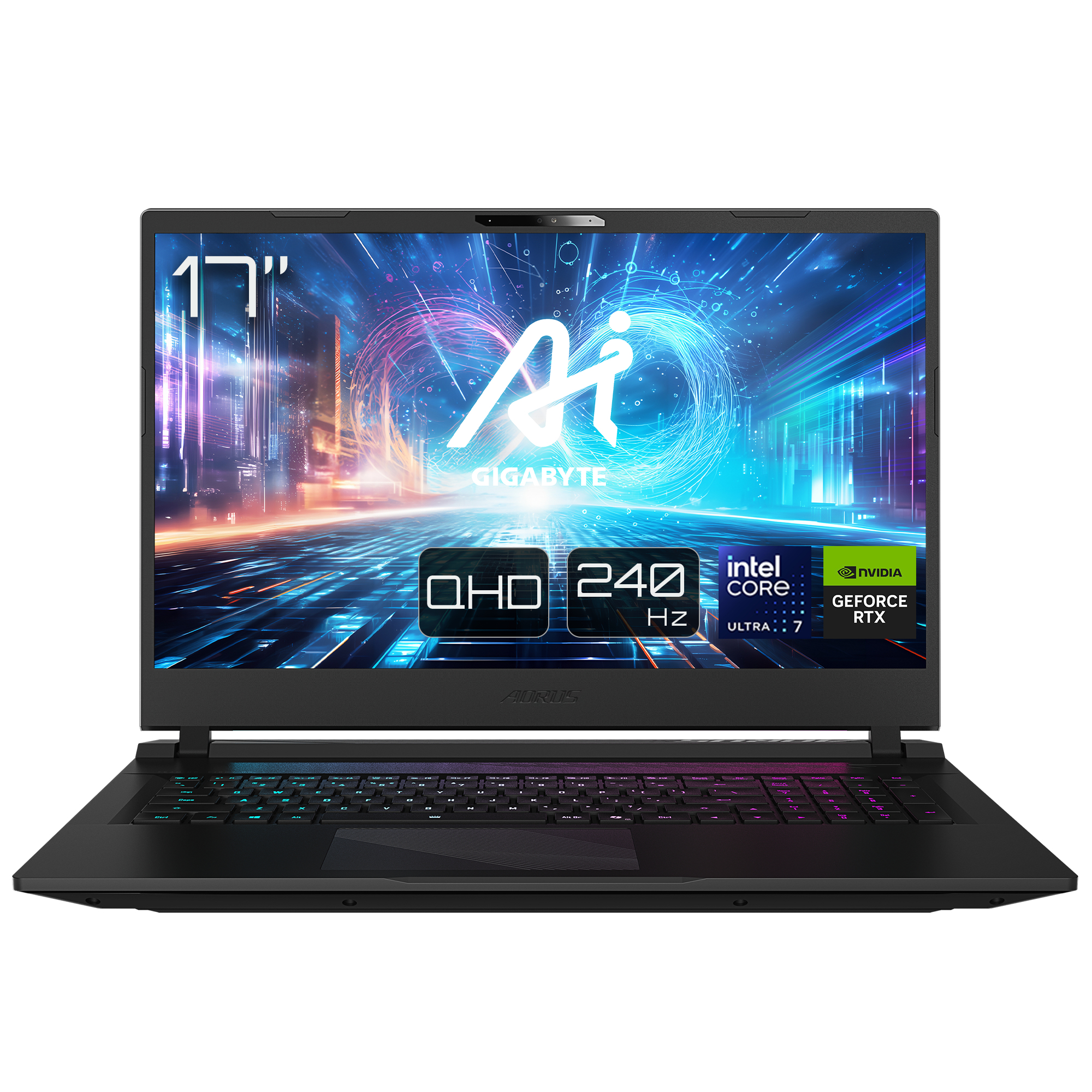

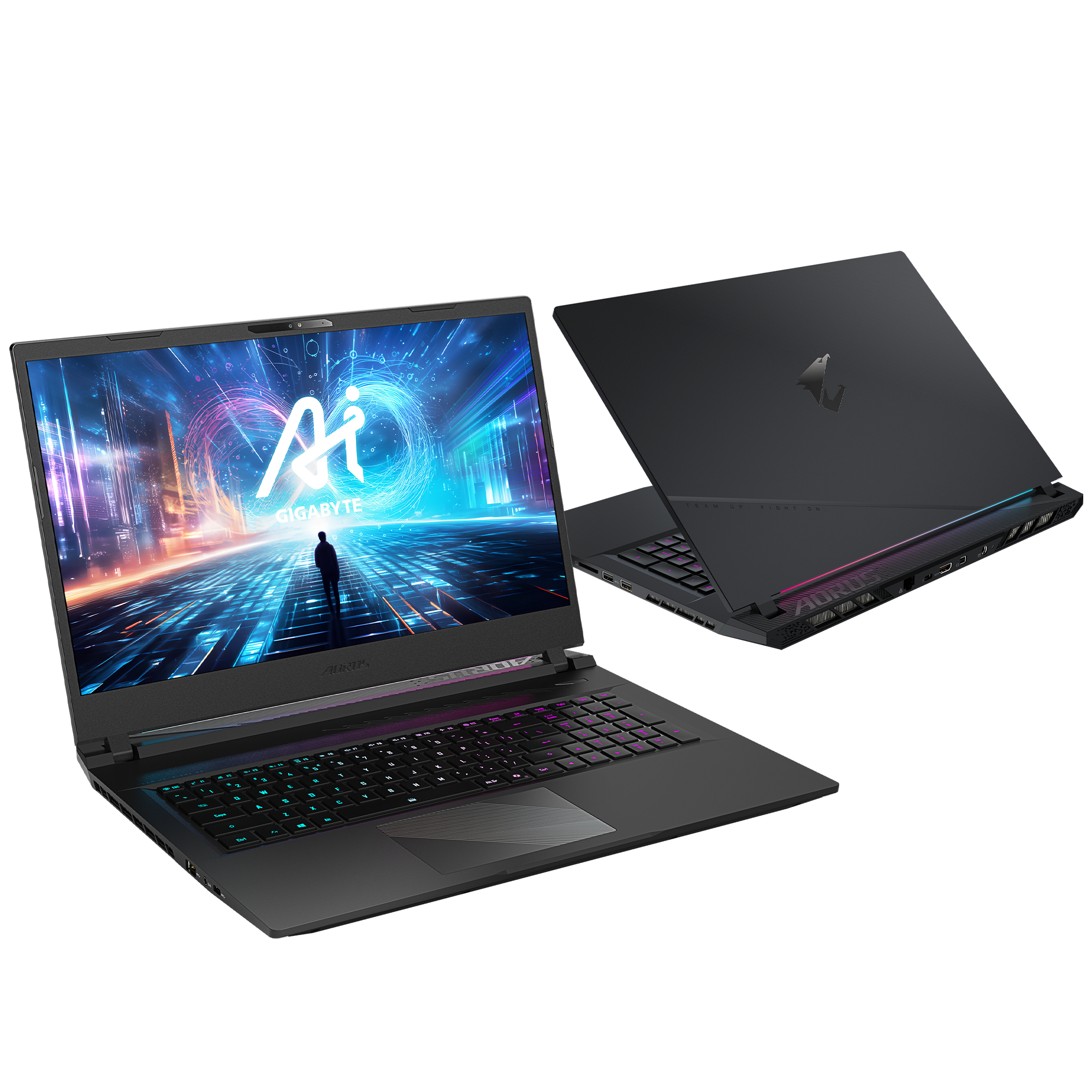

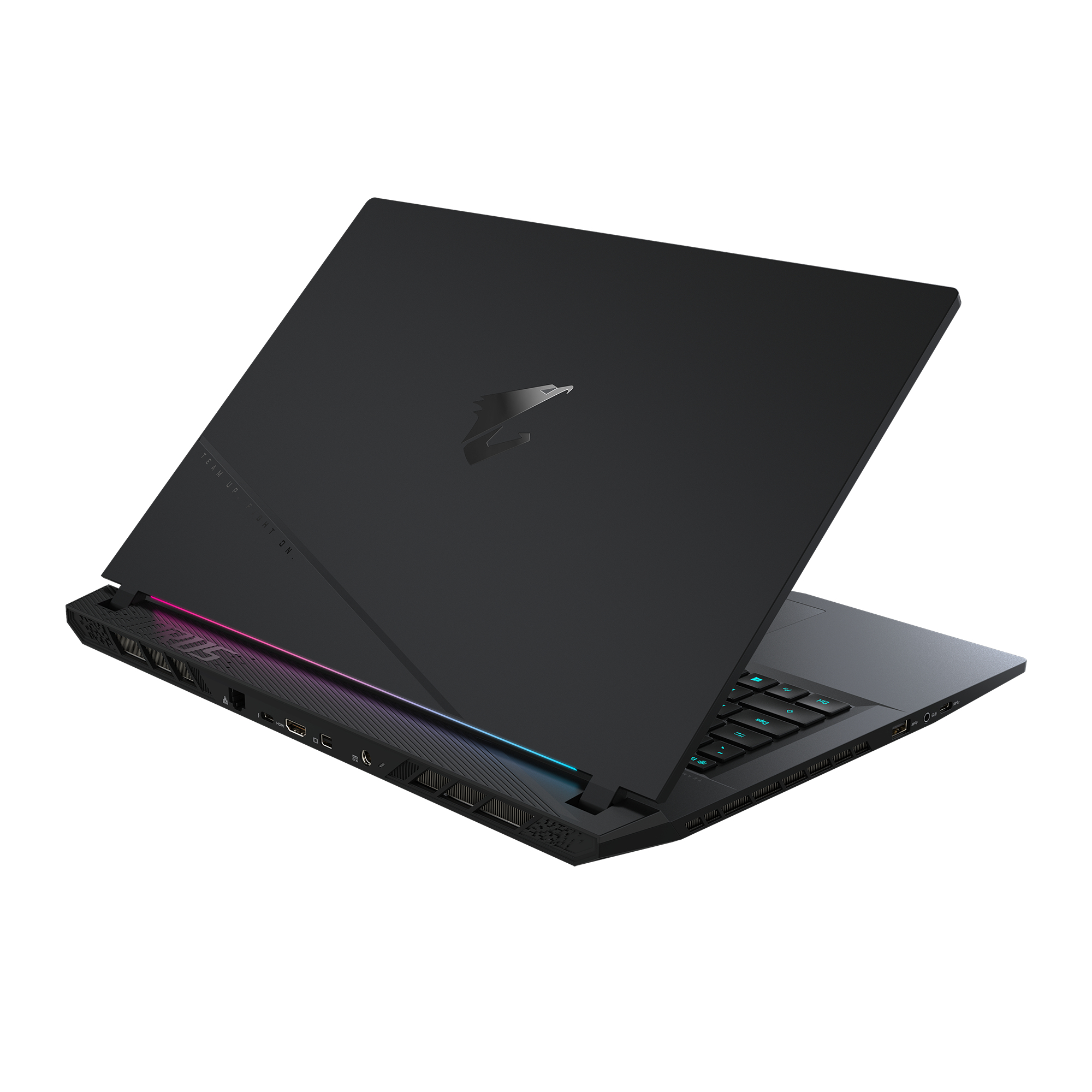

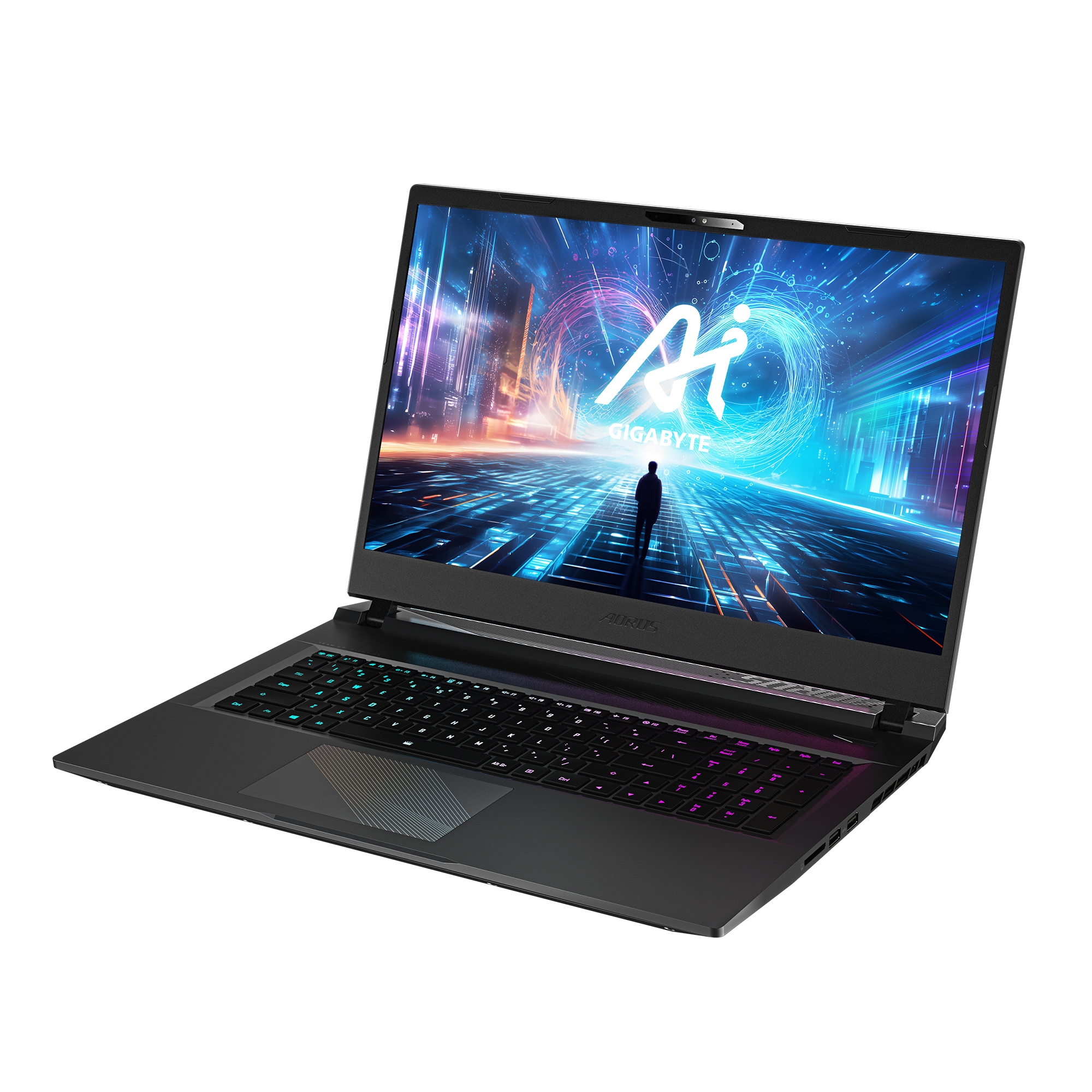

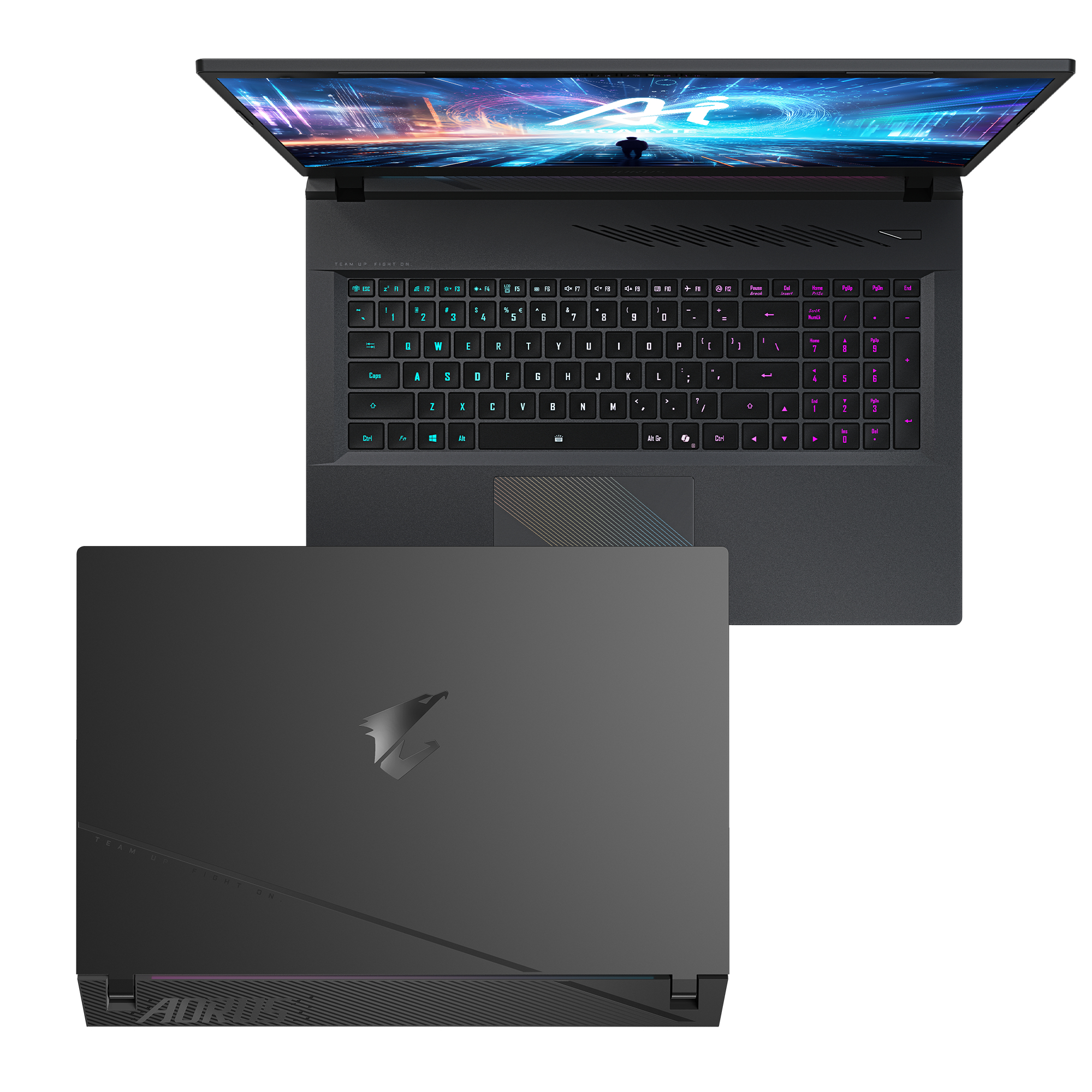

GIGABYTE 17 BSG-13ES654SH

17 BSG-13ES654SH

Model 17 BSG-13ES654SHPart no. AORUS 17 BSG-13ES654SHEAN 4719331757816

112 specifications Checked today

Display43.9 cm (17.3")
Resolution2560 x 1440 pixels
ProcessorIntel Core Ultra 7
Memory16 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 4070

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 2560 x 1440 pixels
Processor: Intel Core Ultra 7
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 4070

Brand: GIGABYTE
Category: Laptop
Model: 17 BSG-13ES654SH
Part number: AORUS 17 BSG-13ES654SH
EAN / UPC: 4719331757816
Also known as: GIGABYTE AORUS 17 BSG - 17 Inch, 240Hz QHD, Intel Ultra 7 155H, NVIDIA GeForce RTX 4070 GPU, 16GB, DDR5 5600MHz, 1x 1TB Gen4 SDD, Windows 11 Home, 2 Year Warran

Specifications

112 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Shadow Black
Form factor	Clamshell
Introduction year	2024

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	2560 x 1440 pixels
Touchscreen	No
HD type	Quad HD
Panel type	IPS
Native aspect ratio	16:9
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	240 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel® Core™ Ultra (Series 1)
Processor model	155H
Processor cores	16
Processor boost frequency	4.8 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Maximum turbo power	115 W
Processor base power	28 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Maximum frequency NPU	1.4 GHz
Sparsity support	Yes
Windows Studio effects support	Yes
AI datatype support on NPU	FP16, FP32, Int8
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 4070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc Graphics

Audio

Specification	Value
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

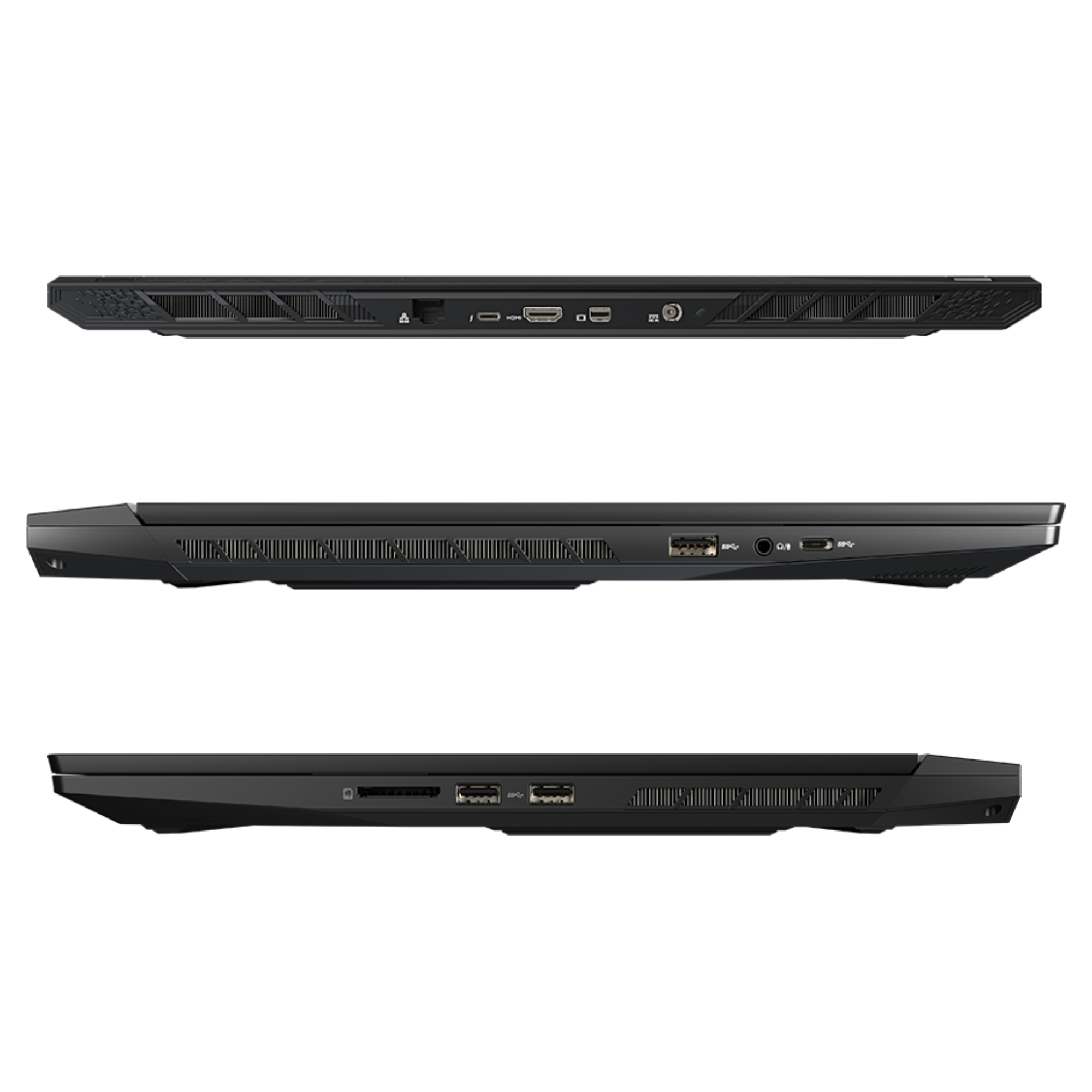

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Mini DisplayPorts quantity	1
Thunderbolt 4 ports quantity	1
Combo headphone/mic port	Yes

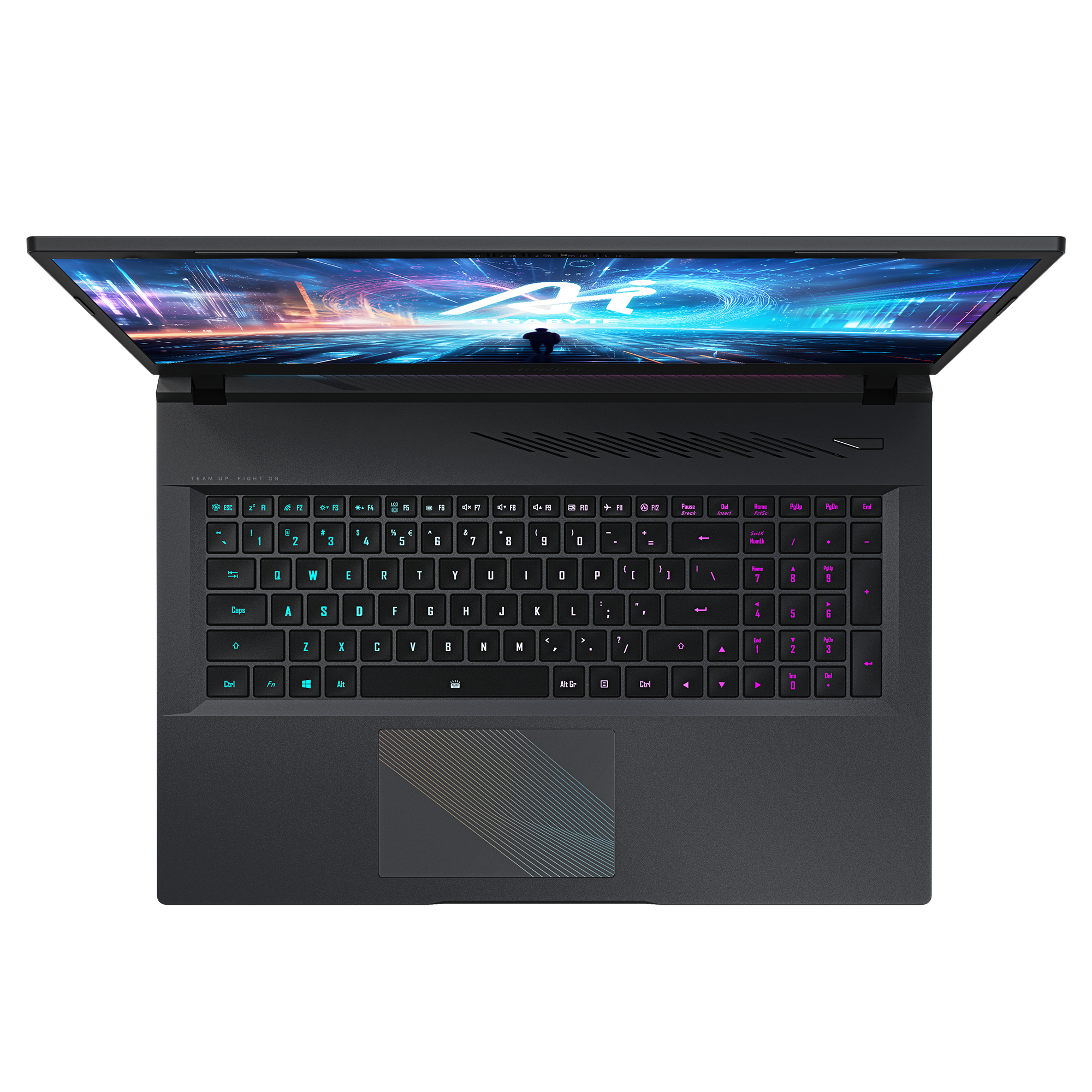

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	99 Wh

Power

Specification	Value
AC adapter power	240 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	2.8 kg
Width	398 mm
Depth	293 mm
Height	21.8 mm

Packaging data

Specification	Value
Package width	90 mm
Package depth	580 mm
Package height	390 mm
Package weight	4.81 kg

Packaging content

Specification	Value
Number of batteries	1

Logistics data

Specification	Value
Products per shipping (inner) case	1 pc(s)

Other features

Specification	Value
Batteries included	Yes
Warranty period	2 year(s)
