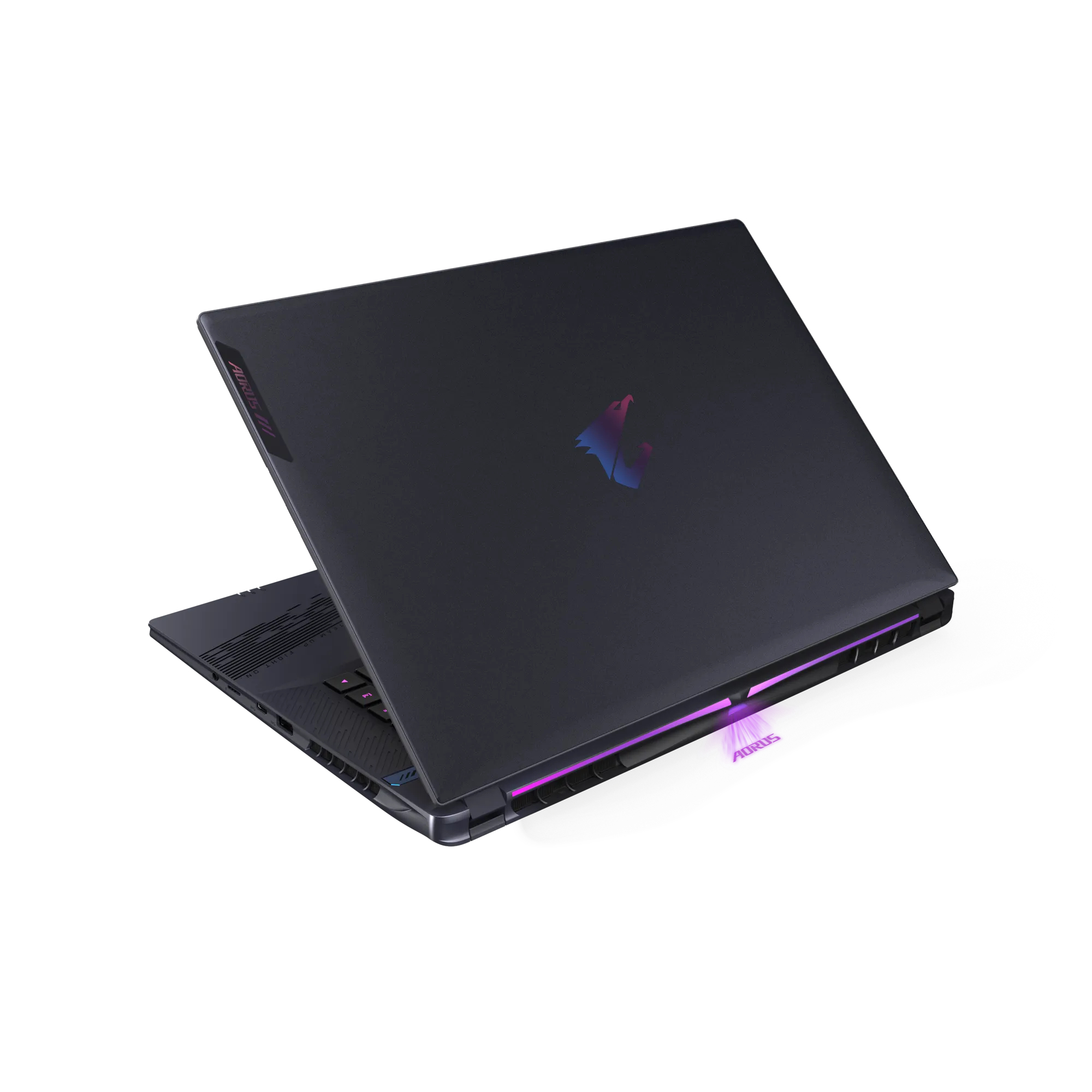

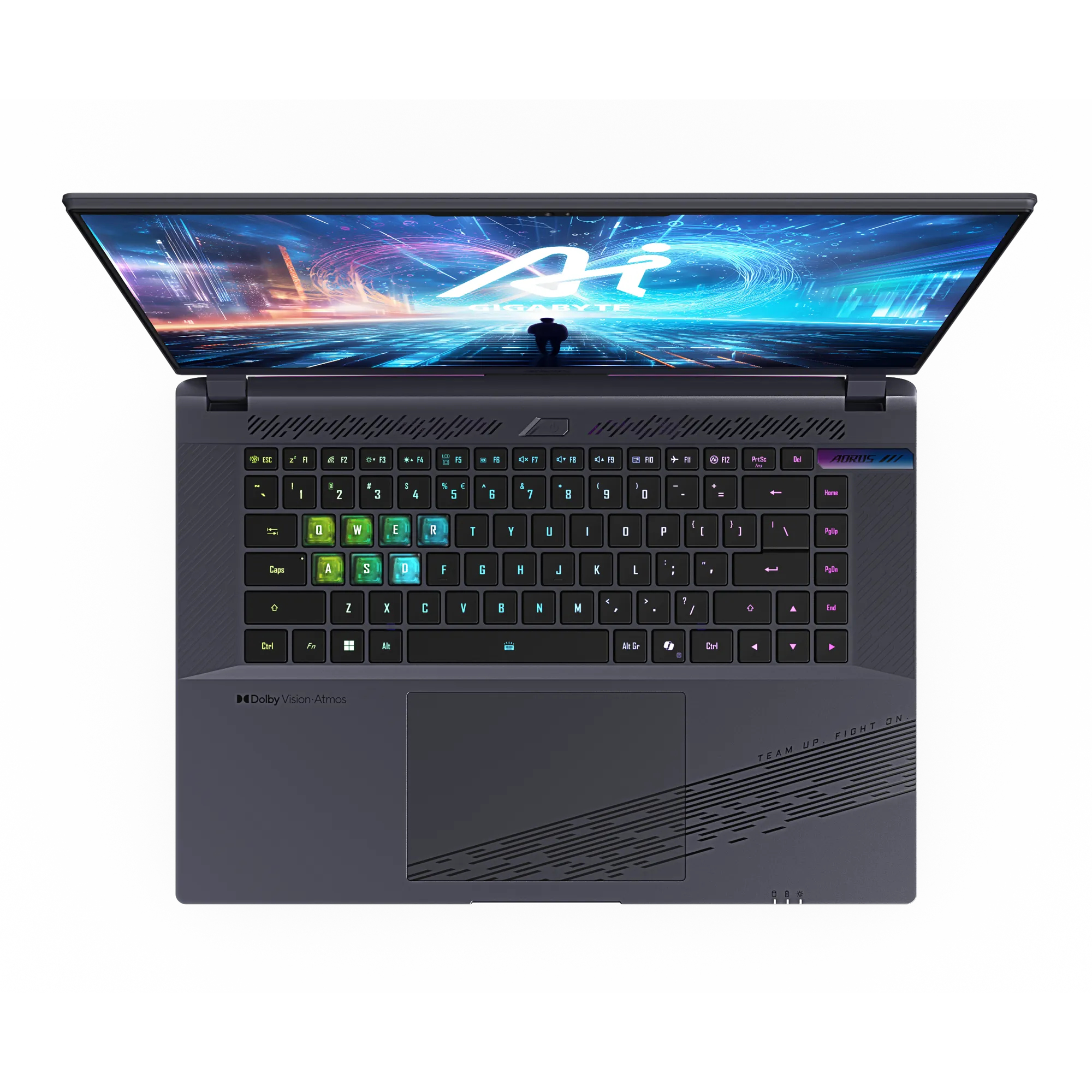

GIGABYTE 16X ASG-63DEC65SH

16X ASG-63DEC65SH

Model 16X ASG-63DEC65SHPart no. AORUS 16X ASG-63DEC65SHEAN 4719331758721

98 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorIntel® Core™ i9
Memory32 GB
Storage2 TB
GraphicsNVIDIA GeForce RTX 4070

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: Intel® Core™ i9
Memory: 32 GB
Storage: 2 TB
Graphics: NVIDIA GeForce RTX 4070

Brand: GIGABYTE
Category: Laptop
Model: 16X ASG-63DEC65SH
Part number: AORUS 16X ASG-63DEC65SH
EAN / UPC: 4719331758721
Also known as: GIGABYTE AORUS 16X ASG-63DEC65SH Intel® Core™ i9 i9-14900HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 4070 Wi-Fi 7 (802.11be) Wind

Specifications

98 specifications in 16 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Native aspect ratio	16:10
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	165 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	Intel® Core™ i9 (14th gen)
Processor model	i9-14900HX
Processor cores	24
Processor threads	32
Processor frequency	55 GHz
Performance cores	8
Efficient cores	16
Performance-core Max Turbo Frequency	5.8 GHz
Efficient-core Max Turbo Frequency	4.1 GHz
Performance-core base frequency	2.2 GHz
Efficient-core base frequency	1.6 GHz
Processor cache	36 MB
Processor cache type	Smart Cache
Maximum turbo power	157 W
Processor base power	55 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	SSD
Total SSDs capacity	2 TB
Number of SSDs installed	1
SSD capacity	2 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 4070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4

Ports & interfaces

Specification	Value
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	RGB

Software

Specification	Value
Operating system installed	Windows 11

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	99 Wh

Power

Specification	Value
AC adapter power	240 W
DC-in jack	Yes

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	2.3 kg
Width	356 mm
Depth	254 mm
Height (front)	2 cm
Height (rear)	2.7 cm
