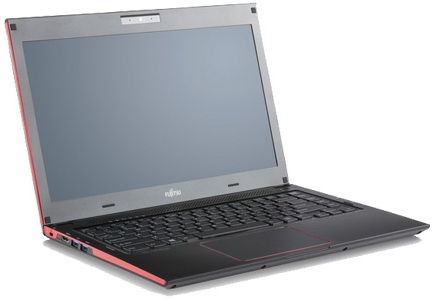

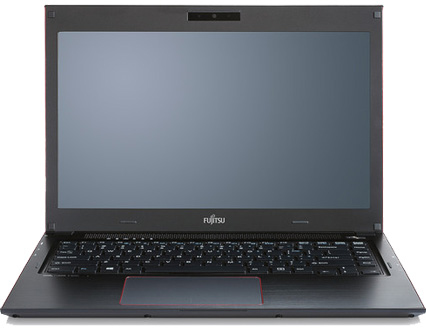

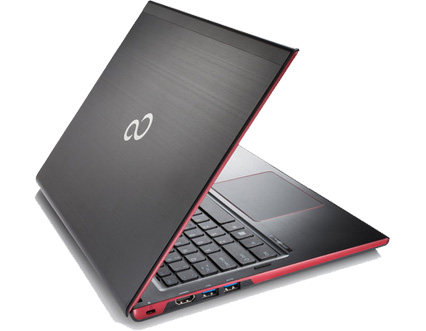

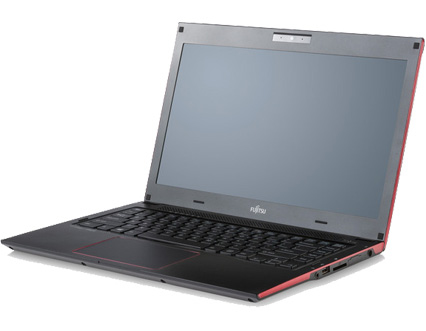

Fujitsu LIFEBOOK U554 Intel® Core™ i5 i5-4200U Laptop

33.8 cm (13.3") HD 8 GB DDR3-SDRAM 500 GB SSD Windows 8 Black, Red

Model U554Part no. VFY:U5540M73A2GB?3YRNBDWRTYEAN 4053026550024

162 specifications Checked 2 days ago

Display33.8 cm (13.3")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage500 GB
Battery2840 mAh

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 500 GB
Battery: 2840 mAh

Brand: Fujitsu
Category: Laptop
Model: U554
Part numbers: VFY:U5540M73A2GB?3YRNBDWRTY, VFY:U5540M73A2GB?3YRNSLAWRTY, UH554-UB521, VFY:U5540M75A2NX, PRJ:U5540M0004SE, VFY:U5540M8501FR +30 more
EAN / UPC: 4053026550024, 4053026556354, 4053026571913, 4053026577182 +21 more
Also known as: Fujitsu LIFEBOOK U554 Intel® Core™ i5 i5-4200U Laptop 33.8 cm (13.3") HD 8 GB DDR3-SDRAM 500 GB SSD Windows 8 Black, Red

Specifications

162 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Red
Form factor	Clamshell

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	HD
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	220 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-4200U
Processor cores	2
Processor threads	4
Processor boost frequency	2.6 GHz
Processor frequency	1.6 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1168
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-4200 Mobile series
Processor codename	Haswell
Bus type	DMI2
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	15 W
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x4, 2x4
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	500 GB
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MS PRO, SD, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12
On-board graphics card ID	0xA16

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Swivel webcam	No
Rear camera	No

Network

Specification	Value
Ethernet LAN	No
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Total number of SATA connectors	4
Number of SATA III connectors	4

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 8

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel ME Firmware Version	9.5
Intel Rapid Storage Technology	Yes
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	Yes
Intel Smart Connect Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	2.0
Processor ARK ID	75459
Processor code	SR170
Processor package size	40 x 24 x 1.5 mm
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	2840 mAh
Battery capacity	48.8 Wh
Battery life (max)	11 h

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V
Power auto-sensing	Yes
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection type	BIOS, HDD, Supervisor, User

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.5 kg
Width	322 mm
Depth	225 mm
Height	17.5 mm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Manual	Yes
Quick start guide	Yes
