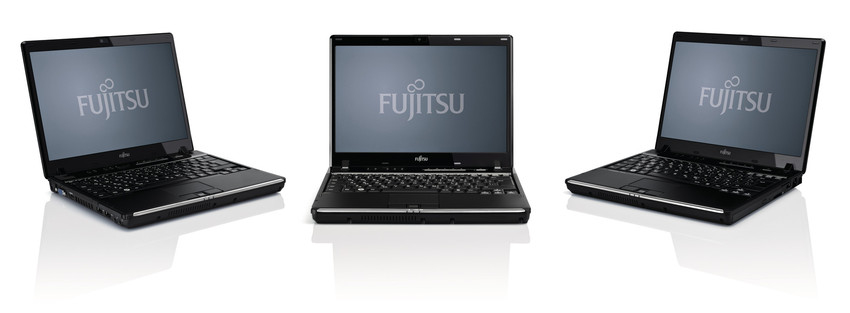

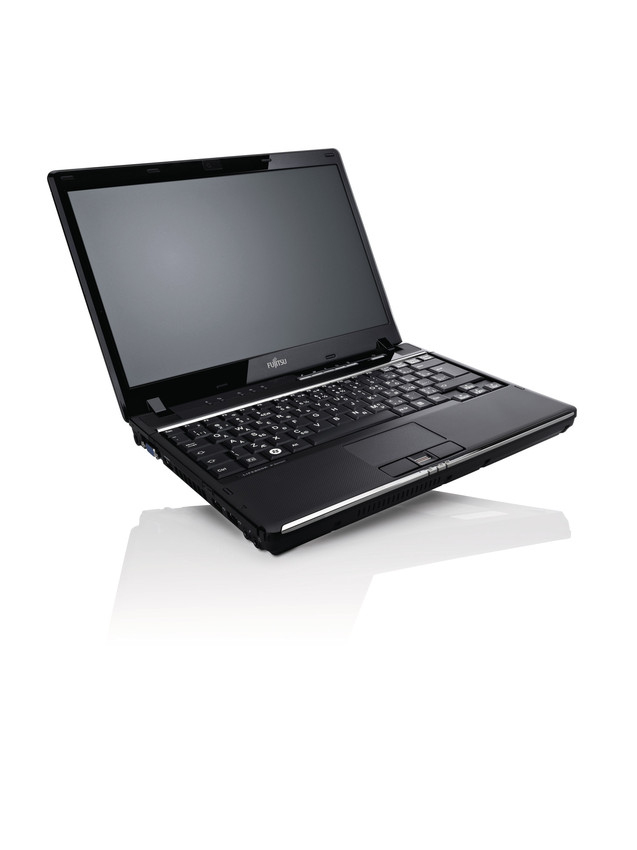

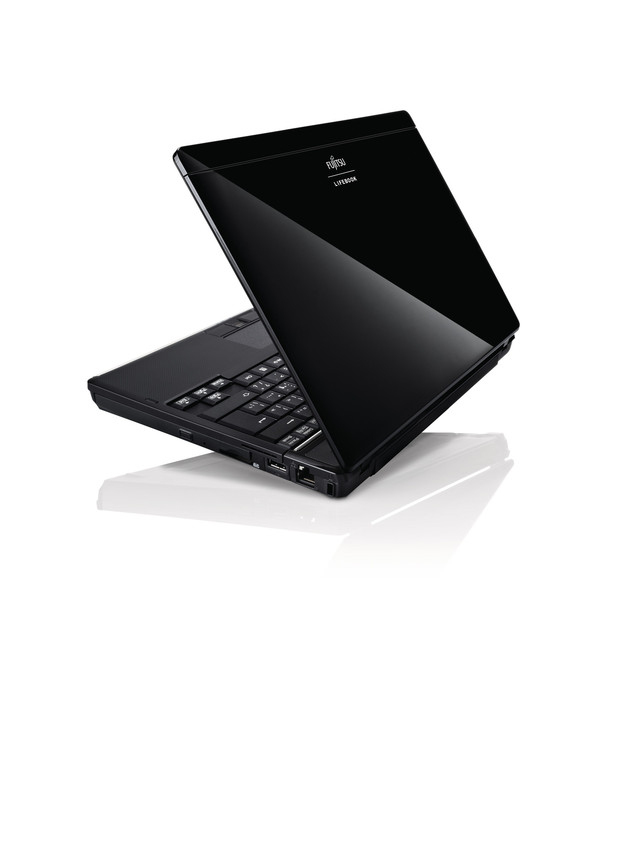

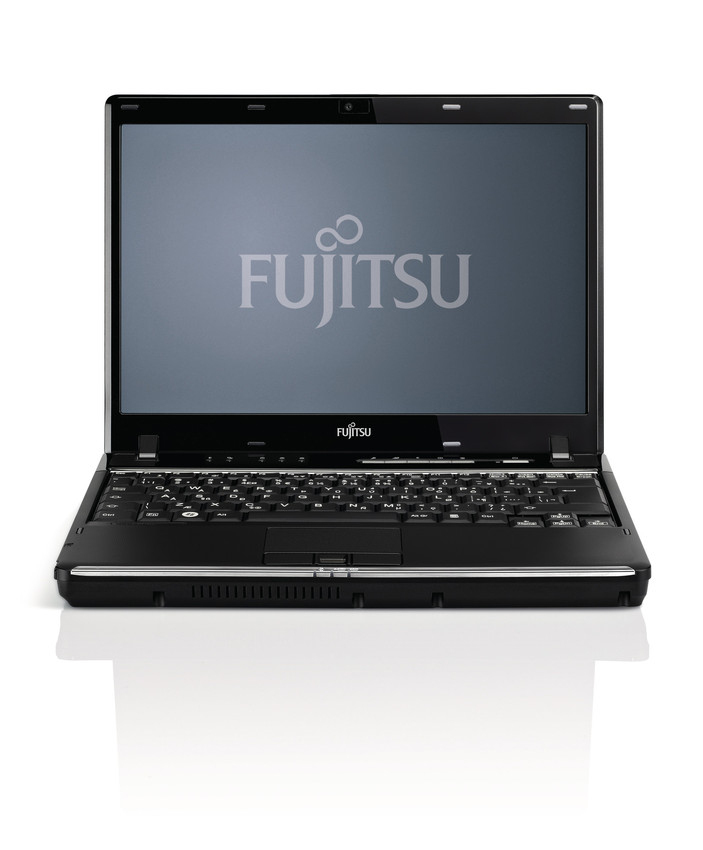

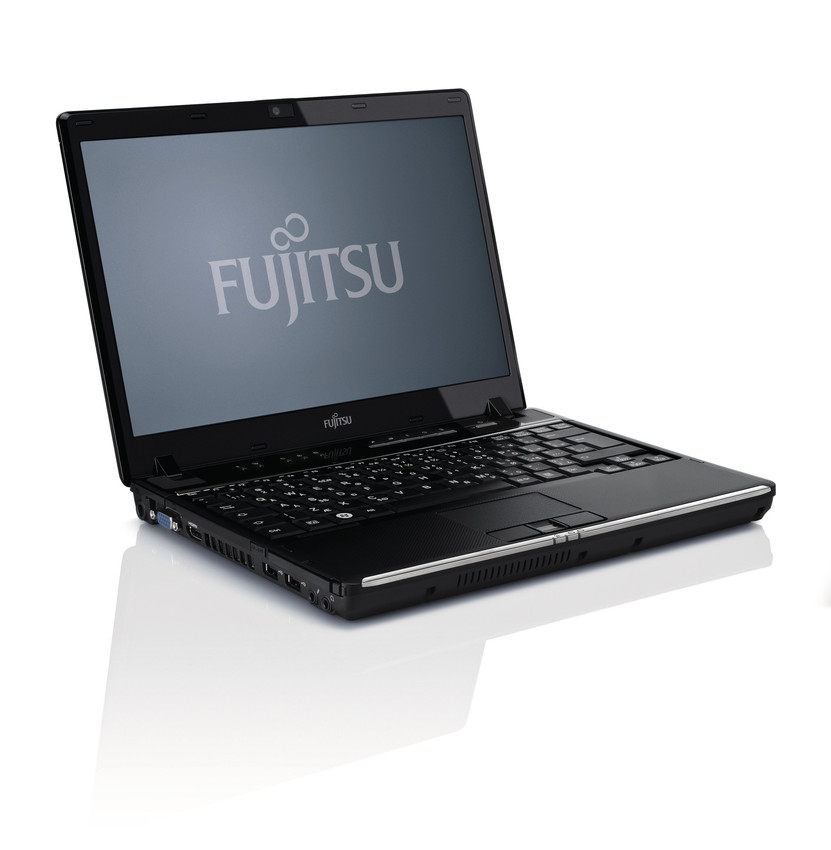

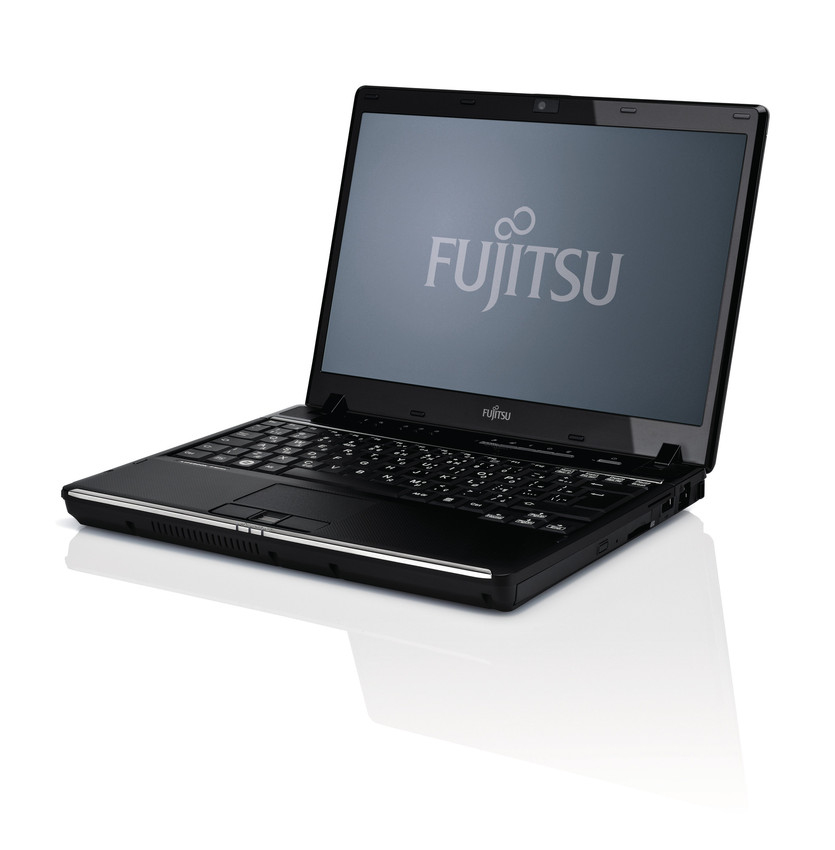

Fujitsu LIFEBOOK P770 Intel® Core™ i7 i7-660UM

30.7 cm (12.1") 4 GB DDR3-SDRAM 320 GB Intel® HD Graphics Windows 7 Professional Black

Model P770Part no. VFY:P7700MF091DEEAN 4049699428630

161 specifications Checked 2 days ago

Display30.7 cm (12.1")
Resolution1280 x 800 pixels
ProcessorIntel® Core™ i7
Memory4 GB
Storage320 GB
GraphicsIntel® HD Graphics

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 320 GB
Graphics: Intel® HD Graphics

Brand: Fujitsu
Category: Laptop
Model: P770
Part numbers: VFY:P7700MF091DE, VFY:P7700MF101DE, VFY:P7700MF121DE, VFY:P7700MF021BE, VFY:P7700MF091DE/K1, VFY:P7700MF101DE/K1 +16 more
EAN / UPC: 4049699428630, 4049699428647, 4049699428661, 4049699406041 +4 more
Also known as: Fujitsu LIFEBOOK P770 Intel® Core™ i7 i7-660UM 30.7 cm (12.1") 4 GB DDR3-SDRAM 320 GB Intel® HD Graphics Windows 7 Professional Black

Specifications

161 specifications in 22 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1280 x 800 pixels
Touchscreen	No
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-660UM
Processor cores	2
Processor threads	4
Processor boost frequency	2.4 GHz
Processor frequency	1.33 GHz
System bus rate	2.5 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor front side bus	800 MHz
Processor socket	BGA 1288
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-600 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	K0
Thermal Design Power (TDP)	18 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory layout (slots x size)	2 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	320 GB
Number of HDDs installed	1
HDD capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	Intel® HD Graphics
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	166 MHz
On-board graphics card dynamic frequency (max)	500 MHz
Maximum resolution	1920 x 1200 pixels

Audio

Specification	Value
Audio system	Realtek ALC269

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	3G
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	2.1+EDR
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel® QS57 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	83
Keyboard keystroke	2 mm
Keyboard key pitch	1.8 cm

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Pre-installed software	Adobe Acrobat Reader, Application Panel, Display Manager, ShockSensor Utility, Power Saving Utility, Wireless Selector Utility, EasyGuide, Nero Essentials S, Norton Internet Security, Toshiba Stack 4.x
Trial software	Norton Internet Security
Compatible operating systems	Microsoft Windows 7 Home Premium 64-bit, Windows XP Professional

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	49158
Processor code	SLBS
Processor package size	BGA 34 x 28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery life (max)	8 h

Power

Specification	Value
AC adapter power	60 W
AC adapter input voltage	100 - 240 V
AC adapter output current	3.16 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Password protection type	BIOS
HDD user password	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 85%

Certificates

Specification	Value
Certification	CE!, CB, RoHS, WEEE, HCT, HCL entry, WHQL, ENERGY STAR 5.0, EPEAT Gold

Weight & dimensions

Specification	Value
Weight	1.4 kg
Width	282 mm
Depth	215 mm
Height	29.9 mm

Video

Specification	Value
Video adapter features	DualView
External video modes refresh rate (max)	60 Hz

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power supply type	AC/DC
Wake-on-LAN ready	Yes
Internal modem	No
TV tuner integrated	No
