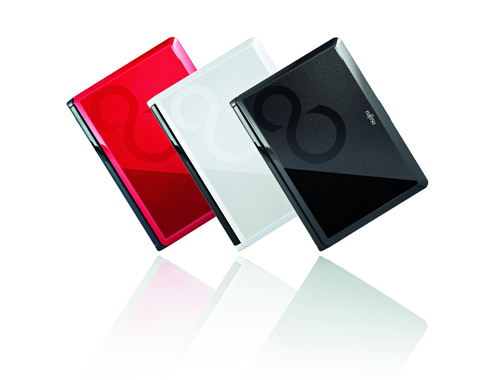

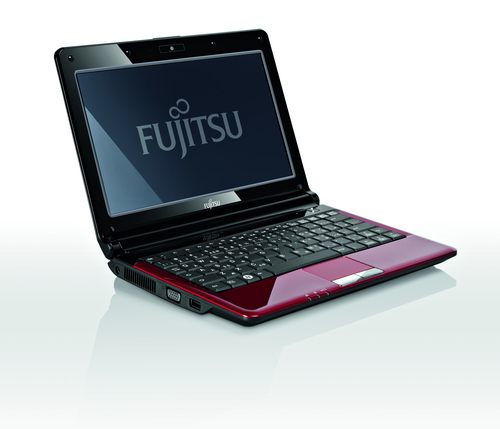

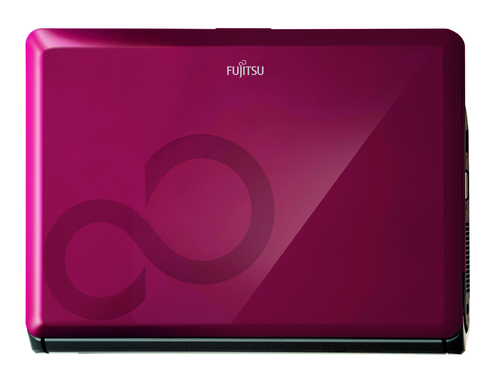

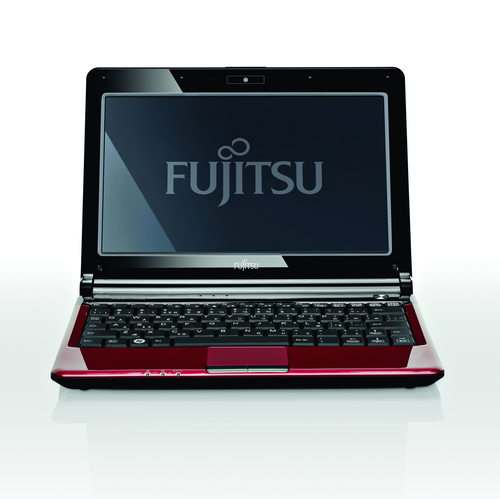

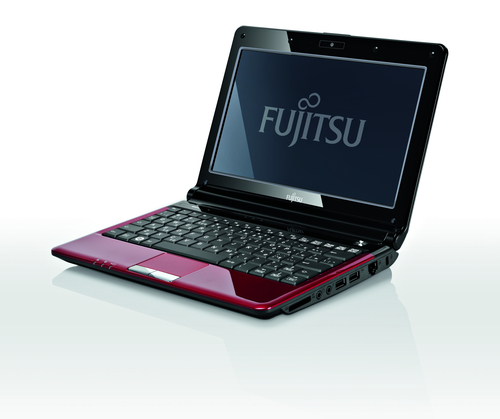

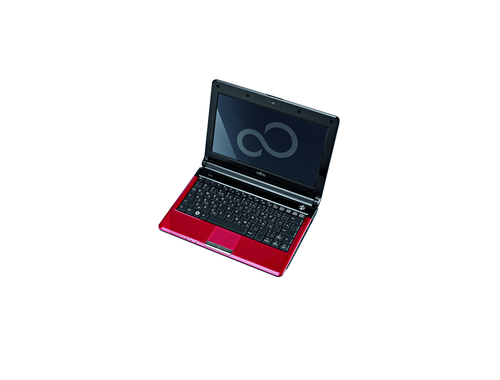

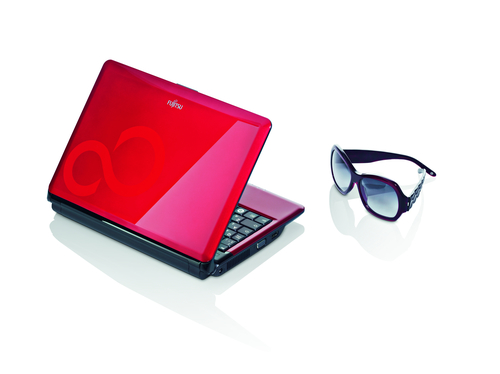

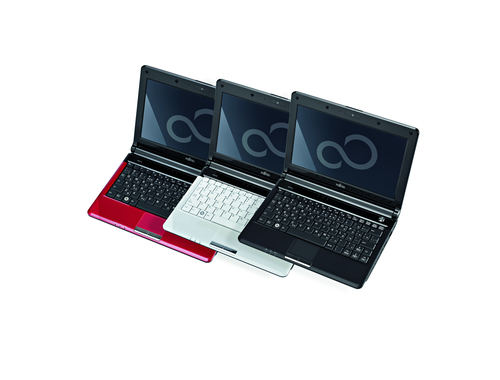

Fujitsu MINI Series M2010 Intel Atom® N280 Netbook

25.6 cm (10.1") 1 GB DDR2-SDRAM Windows XP Home Edition Red

Model M2010Part no. VFY:M2010MXAB1ITEAN 4049699244148

122 specifications Checked 2 days ago

Display25.6 cm (10.1")
Resolution1024 x 600 pixels
ProcessorIntel Atom®
Memory1 GB
Storage160 GB
Battery4800 mAh

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1024 x 600 pixels
Processor: Intel Atom®
Memory: 1 GB
Storage: 160 GB
Battery: 4800 mAh

Brand: Fujitsu
Category: Laptop
Model: M2010
Part numbers: VFY:M2010MXAB1IT, VFY:M2010MPXV8GB, VFY:M2010MPXU8GB, VFY:M2010MPXR8FR, VFY:M2010MPXT8FR, VFY:M2010MPXR8DE +10 more
EAN / UPC: 4049699244148, 4049699156168, 4049699156151, 4049699153624 +12 more
Also known as: Fujitsu MINI Series M2010 Intel Atom® N280 Netbook 25.6 cm (10.1") 1 GB DDR2-SDRAM Windows XP Home Edition Red

Specifications

122 specifications in 21 groups

Design

Specification	Value
Product type	Netbook
Product colour	Red

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1024 x 600 pixels
Native aspect ratio	5:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	N280
Processor cores	1
Processor threads	2
Processor frequency	1.66 GHz
Processor cache	0.512 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor lithography	45 nm
Processor operating modes	32-bit
Processor series	Intel Atom N200 Series
Processor codename	Diamondville
Bus type	FSB
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	2.5 W
Tjunction	90 °C
Number of Processing Die Transistors	47 M
Processing Die size	26 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	533 MHz
Memory layout (slots x size)	1 x 1 GB
Maximum internal memory	2 GB

Storage

Specification	Value
HDD capacity	160 GB
HDD interface	SATA
HDD speed	5400 RPM
HDD size	2.5"
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
Maximum graphics card memory	0.128 GB
Graphics card	GMA 950

Audio

Specification	Value
Audio system	RealTek ALC269 HD
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Fast Ethernet
Wireless technology	IEEE 802.11b/g
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	80

Software

Specification	Value
Operating system installed	Windows XP Home Edition
Drivers included	Yes
Trial software	Symantec Norton Internet Security
Bundled software	Adobe Acrobat Reader, CyberLink YouCam, Windows Media Player, Microsoft Internet Explorer
Compatible operating systems	Microsoft Windows 7 Starter

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	41411
Processor code	SLGL9
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	4800 mAh
Battery life (max)	6.25 h
Battery recharge time (off)	2 h
Battery recharge time (on)	2 h

Power

Specification	Value
AC adapter power	60 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.16 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	8 - 85%

Certificates

Specification	Value
Certification	CE Marking, R&TTE, Energy Star 5.0, RoHS, GOST

Weight & dimensions

Specification	Value
Weight	1.33 kg
Width	258 mm
Depth	205 mm
Height (front)	3.2 cm
Height (rear)	4.3 cm

Video

Specification	Value
Video card features	DirectX 9

Other features

Specification	Value
Supplied AC adapter type	AC
