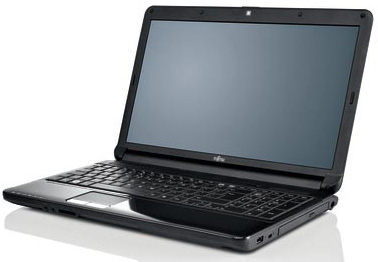

Fujitsu LifeBook AH530

Model LifeBook AH530Part no. VFY:AH530MF011PLEAN 4049699329524

151 specifications Checked 2 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Celeron®
Memory3 GB
Storage320 GB
Battery4400 mAh

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Celeron®
Memory: 3 GB
Storage: 320 GB
Battery: 4400 mAh

Brand: Fujitsu
Category: Laptop
Model: LifeBook AH530
Part numbers: VFY:AH530MF011PL, VFY:AH530MF021CH, VFY:AH530MF011IT, VFY:AH530MF032PT, VFY:AH530MF112DE, VFY:AH530MRY02NL +16 more
EAN / UPC: 4049699329524, 4049699329531, 4049699343315, 4049699343308 +3 more
Also known as: Fujitsu LIFEBOOK AH530 Intel® Celeron® P4500 39.6 cm (15.6") 3 GB DDR2-SDRAM 320 GB Windows 7 Home Premium Black

Specifications

151 specifications in 23 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	P4500
Processor cores	2
Processor threads	2
Processor frequency	1.86 GHz
System bus rate	2.5 GT/s
Processor cache	2 MB
Processor cache type	Smart Cache
Processor socket	PGA988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor P4000 Series for Mobile
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	C2
Thermal Design Power (TDP)	35 W
Tjunction	90 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	14
ECC supported by processor	No

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	1066 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	MS PRO, SD, SDHC

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	667 MHz
Maximum graphics card memory	1.695 GB
Maximum resolution	1920 x 1200 pixels

Audio

Specification	Value
Audio system	HDA
Number of built-in speakers	2

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet, WLAN
Wireless technology	Wi-Fi
Bluetooth	Yes
Bluetooth version	2.1+EDR
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® HM55 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Keyboard number of keys	106
Keyboard keystroke	1.8 mm
Keyboard key pitch	1.98 cm

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Trial software	Norton Internet Security (incl. Firewall) (90)

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	47552
Processor package size	37.5x37.5 mm
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4400 mAh
Battery life (max)	6 h

Power

Specification	Value
AC adapter power	80 W
AC adapter input voltage	100 - 240 V
AC adapter output current	4.22 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Operational conditions

Specification	Value
Operating relative humidity (H-H)	20 - 85%

Certificates

Specification	Value
Certification	CE, R&TTE, RoHS, WiFi, EPEAT, GOST

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.5 kg
Width	378 mm
Depth	252 mm
Height (front)	3.57 cm
Height (rear)	3.84 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
