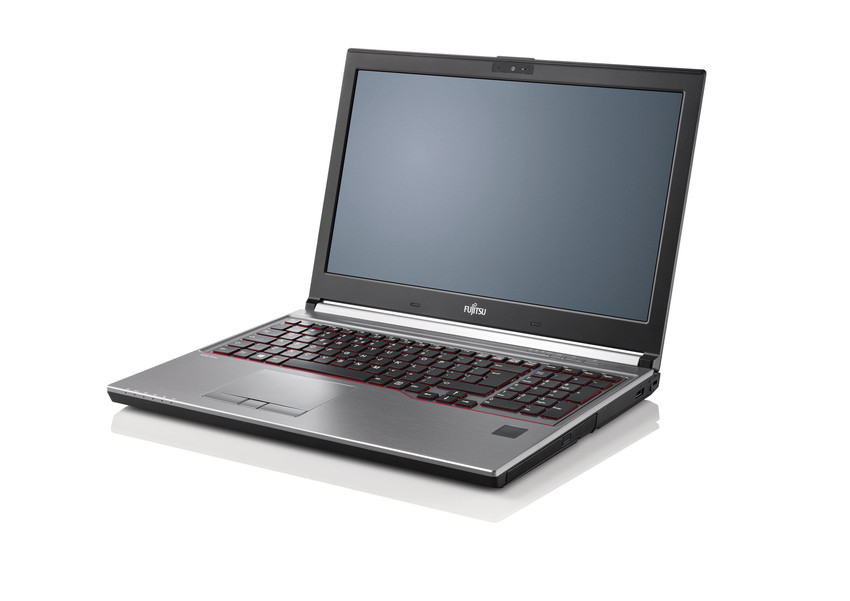

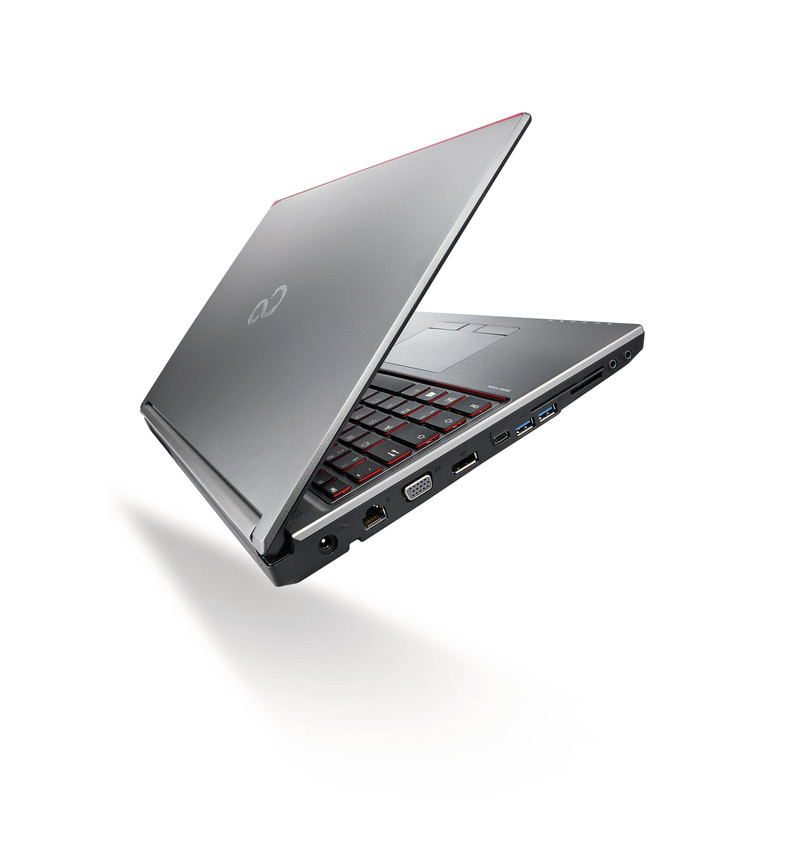

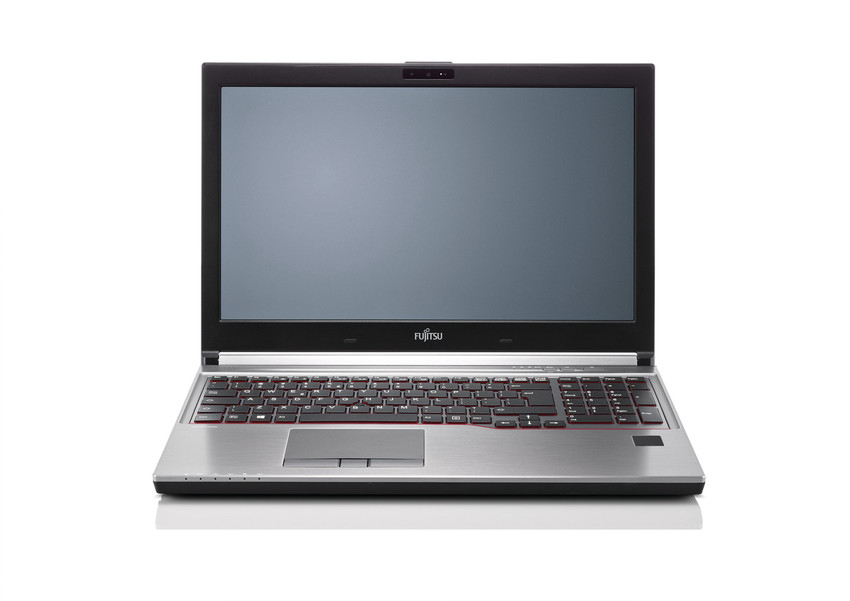

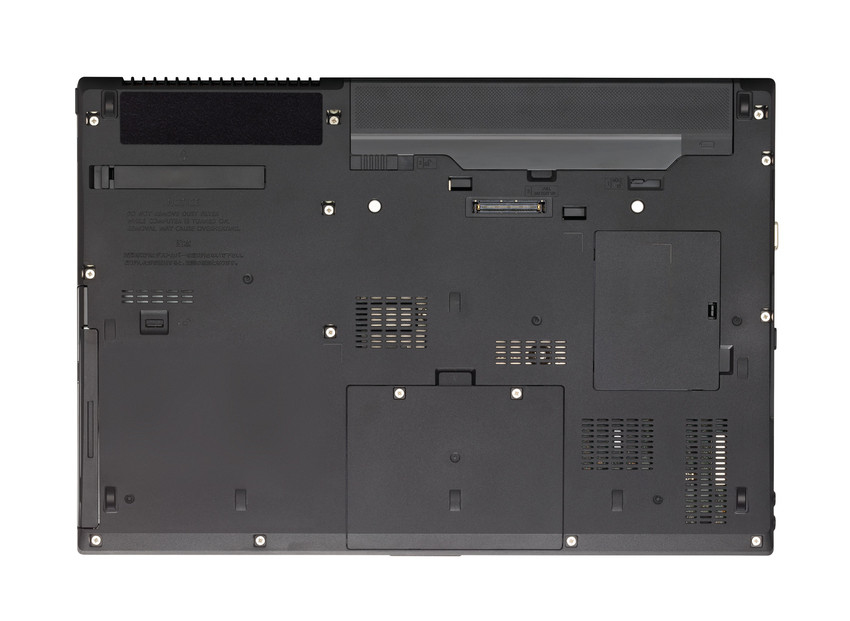

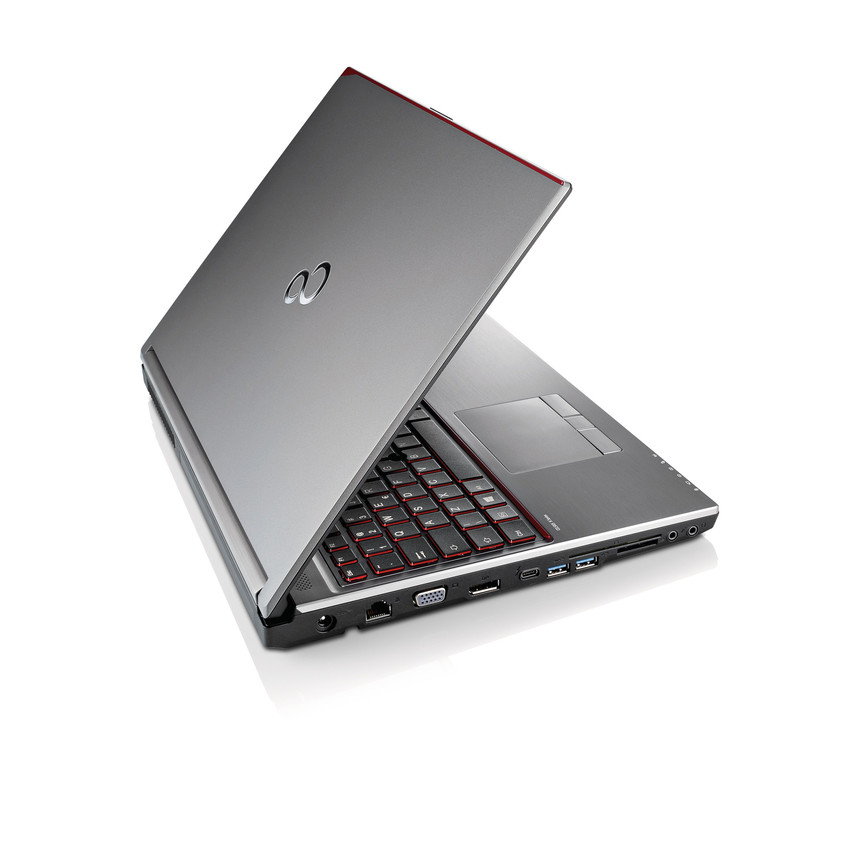

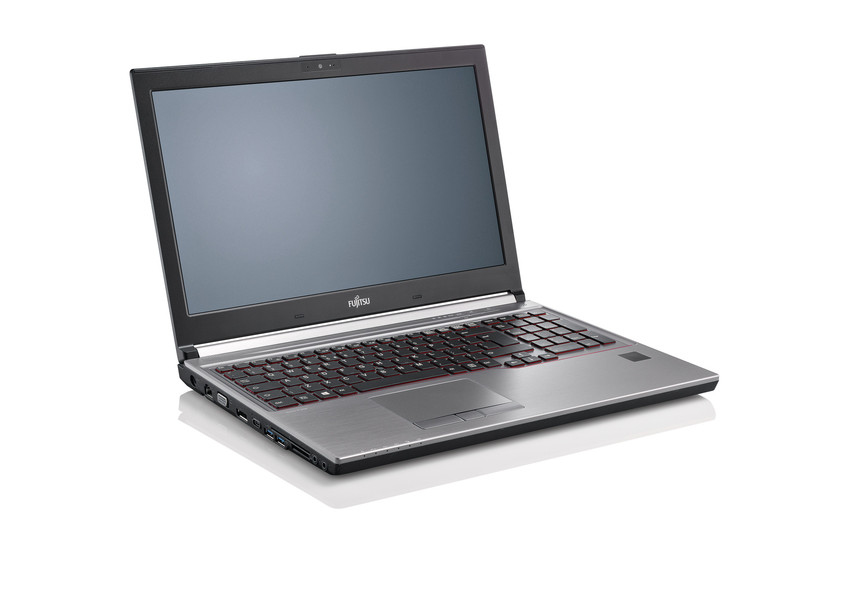

Fujitsu CELSIUS H760 Intel® Xeon® E3 v5 E3-1505MV5 Mobile workstation

39.6 cm (15.6") 4K Ultra HD 32 GB DDR4-SDRAM 512 GB SSD NVIDIA® Quadro® M2000M Wi-Fi 5 (80

Model H760Part no. VFY:H7600W482UGBEAN 4057185640633

180 specifications Checked yesterday

Display39.6 cm (15.6")
Resolution3840 x 2160 pixels
ProcessorIntel® Xeon® E3 v5
Memory32 GB
Storage512 GB
GraphicsNVIDIA® Quadro® M2000M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 3840 x 2160 pixels
Processor: Intel® Xeon® E3 v5
Memory: 32 GB
Storage: 512 GB
Graphics: NVIDIA® Quadro® M2000M

Brand: Fujitsu
Category: Laptop
Model: H760
Part numbers: VFY:H7600W482UGB, VFY:H7600W481UGB, VFY:H7600W27SBNC, LKN:H7600W0002PT, LKN:H7600W0006PT, LKN:H7600W0005PT +34 more
EAN / UPC: 4057185640633, 4057185640640, 4057185640657, 4057185640664 +31 more
Also known as: Fujitsu CELSIUS H760 Intel® Xeon® E3 v5 E3-1505MV5 Mobile workstation 39.6 cm (15.6") 4K Ultra HD 32 GB DDR4-SDRAM 512 GB SSD NVIDIA® Quadro® M2000M Wi-Fi 5 (80

Specifications

180 specifications in 21 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Black, Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	3840 x 2160 pixels
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Display brightness	300 cd/m²
Contrast ratio (typical)	700:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 v5
Processor model	E3-1505MV5
Processor cores	4
Processor threads	8
Processor boost frequency	3.7 GHz
Processor frequency	2.8 GHz
System bus rate	8 GT/s
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	BGA 1440
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E3-1500M v5
Processor codename	Skylake
Bus type	DMI3
Stepping	R0
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2133 MHz
Memory form factor	SO-DIMM
Memory slots	4x SO-DIMM
Maximum internal memory	64 GB
Maximum internal memory (64-bit)	64 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	2
SSD capacity	256 GB
SSD interface	SATA III
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® M2000M
Discrete graphics card memory	4 GB
On-board graphics card model	Intel® HD Graphics P530
Maximum on-board graphics card memory	1.7 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x191D

Audio

Specification	Value
Audio chip	Realtek ALC255
Audio system	MaxxAudio
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	4G
4G standard	LTE
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.1
SIM card support	Yes

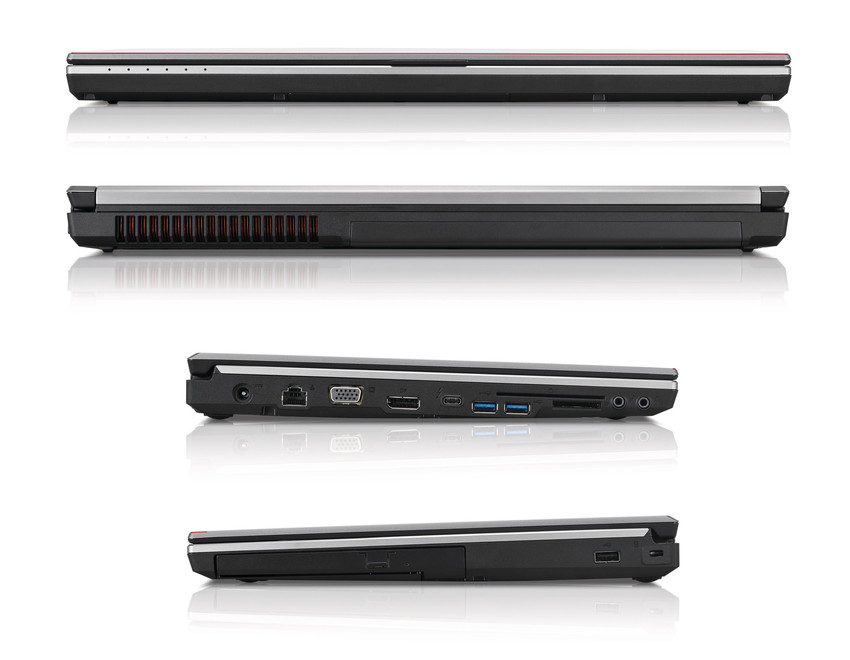

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Micro-USB 2.0 ports quantity	0
Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	1
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	1
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
Docking connector	Yes
SmartCard slot	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Full-size keyboard	Yes
Number of touchpad buttons	3

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	89608
Processor code	SR2FN
Processor package size	42 x 28 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Number of battery cells	6
Battery capacity	6700 mAh

Power

Specification	Value
AC adapter power	150 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	7.89 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, HDD, Supervisor, User

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	cULus, FCC Class B part 15C/E + 22 + 24, Medical EMC standard IEC60601

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.75 kg
Width	380 mm
Depth	257 mm
Height (front)	2.48 cm
Height (rear)	3.19 cm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
Warranty card	Yes
