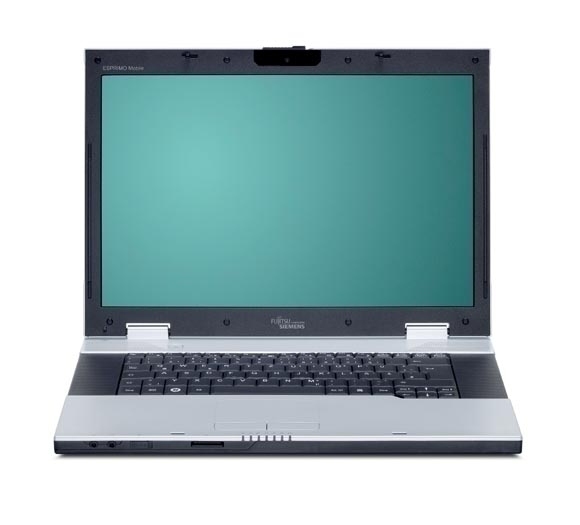

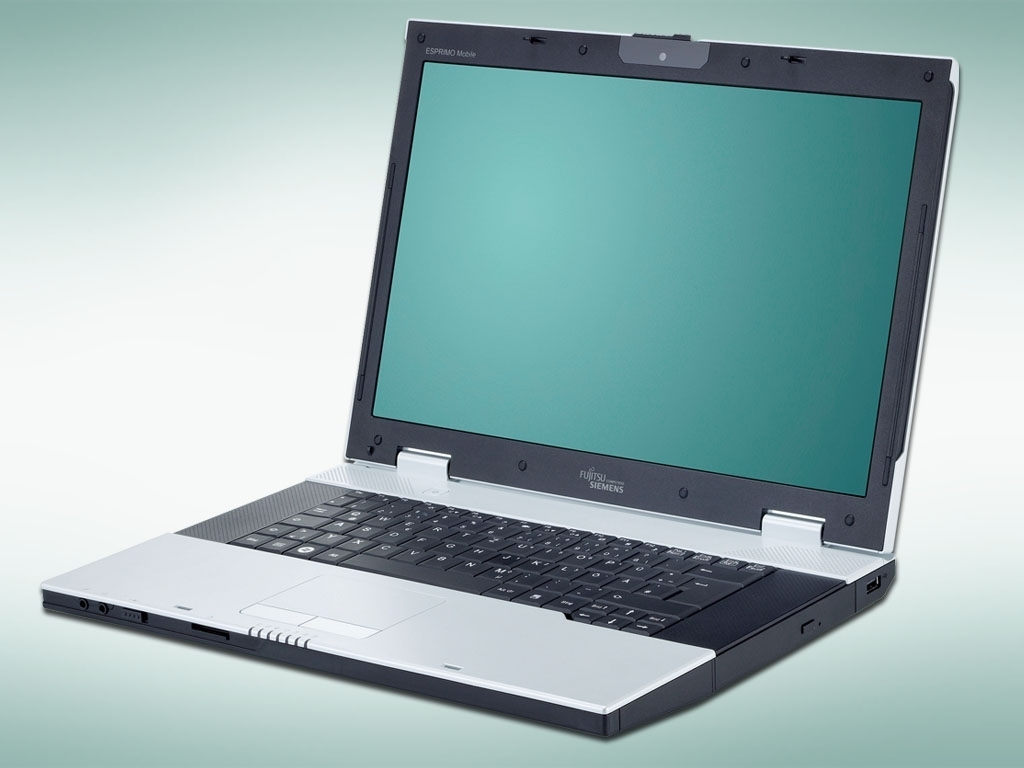

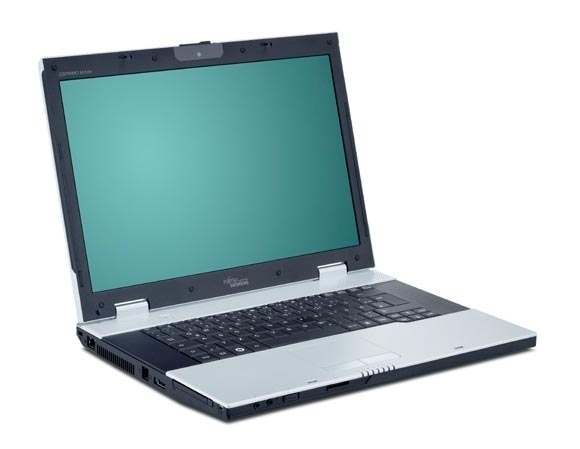

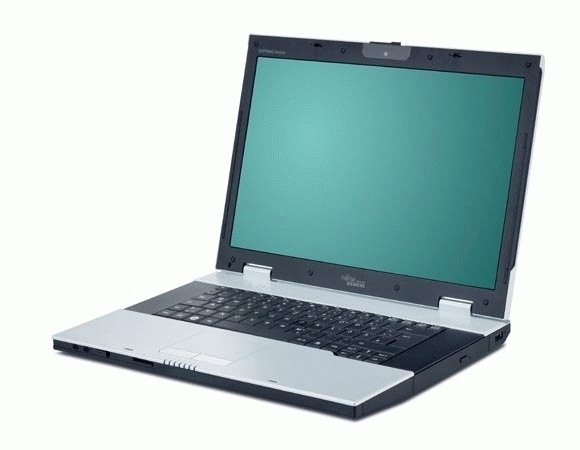

Fujitsu ESPRIMO Mobile V6545

Model ESPRIMO Mobile V6545Part no. VFY:V6545MPPM1FREAN 4049699141324

141 specifications Checked yesterday

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory3 GB
Storage320 GB
GraphicsAMD Mobility Radeon HD 3450

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 3 GB
Storage: 320 GB
Graphics: AMD Mobility Radeon HD 3450

Brand: Fujitsu
Category: Laptop
Model: ESPRIMO Mobile V6545
Part numbers: VFY:V6545MPPM1FR, VFY:V6545MPPN1FR, VFY:V6545MXAH4DE, VFY:V6545MXAM1DE, VFY:V6545MXAK5IT, V6545MXAL2IT +19 more
EAN / UPC: 4049699141324, 4049699125973, 4333643825102, 4333643844592 +9 more
Also known as: Fujitsu ESPRIMO Mobile V Series ESPRIMO Mobile V6545 Intel® Core™2 Duo P8400 39.1 cm (15.4") 3 GB DDR2-SDRAM 320 GB AMD Mobility Radeon HD 3450 Windows Vista Bu

Specifications

141 specifications in 21 groups

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	P8400
Processor cores	2
Processor threads	2
Processor frequency	2.26 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Processor socket	Socket 478
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo P8000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	25 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	8.5
ECC supported by processor	No

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	320 GB
Number of HDDs installed	1
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon HD 3450
Discrete graphics card memory	0.25 GB
On-board graphics card model	Not available
Maximum graphics card memory	1.227 GB
Maximum resolution	1920 x 1440 pixels

Audio

Specification	Value
Number of built-in speakers	2

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Networking features	Gigabit Ethernet, Wireless LAN, Bluetooth
Networking type	Gigabit Ethernet, Fast Ethernet, Ethernet
Wireless technology	IEEE 802.11a/g/n
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	2.0+EDR
Networking manufacturer	Realtek RTL8111C

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Line-in	Yes
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® PM45 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	85
Keyboard keystroke	2.5 mm
Keyboard key pitch	1.9 cm

Software

Specification	Value
Operating system installed	Windows Vista Business
Bundled software	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	35569
Processor code	SL3BU
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4400 mAh
Battery life (max)	2.5 h

Power

Specification	Value
AC adapter power	90 W
AC adapter input voltage	100 - 240 V
AC adapter output current	4.5 A
AC adapter output voltage	20 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	20 - 85%

Certificates

Specification	Value
Certification	CB, CB!, CE, EC Directive 89/336/EEC, RoHS

Weight & dimensions

Specification	Value
Weight	2.8 kg
Width	363 mm
Depth	259 mm
Height (front)	2.8 cm
Height (rear)	3.7 cm

Video

Specification	Value
Video adapter features	DirectX 10, DualView
External video modes refresh rate (max)	60 Hz

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92 MDC1.5
BIOS flash ROM	Phoenix SecureCore
Supplied AC adapter type	AC
