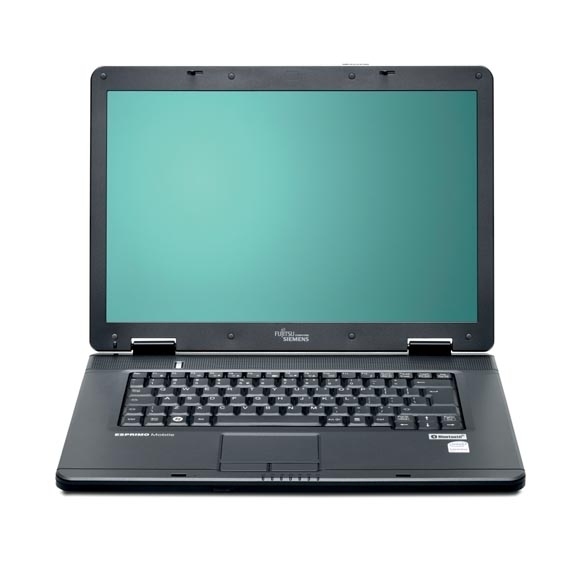

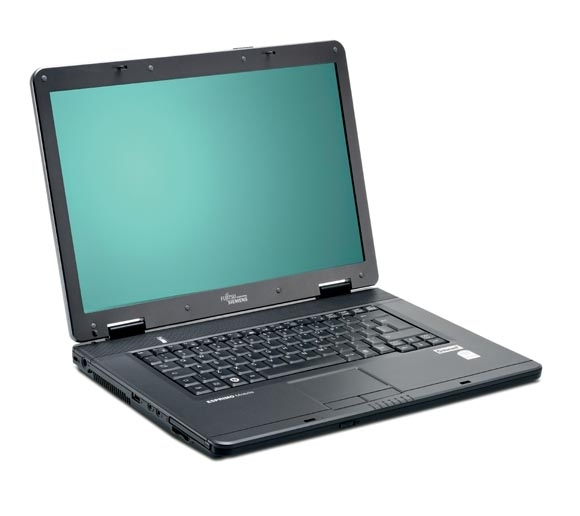

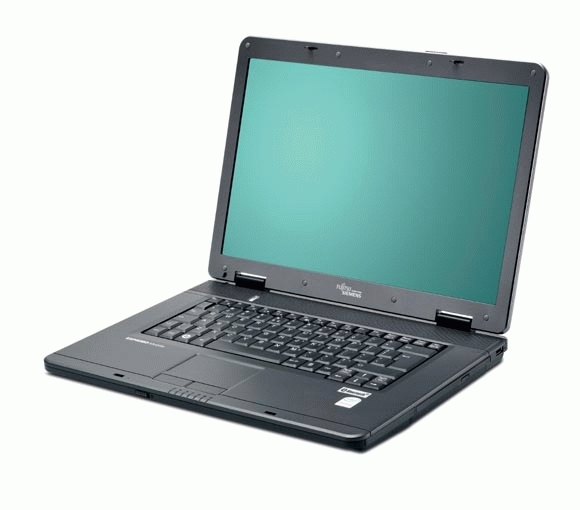

Fujitsu ESPRIMO Mobile V5505

Model ESPRIMO Mobile V5505Part no. VFY:EM7BV5505AK6CZEAN 4333643412784

140 specifications Checked 3 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory1 GB
Storage120 GB
GraphicsIntel® GMA X3100

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 120 GB
Graphics: Intel® GMA X3100

Brand: Fujitsu
Category: Laptop
Model: ESPRIMO Mobile V5505
Part numbers: VFY:EM7BV5505AK6CZ, VFY:EM7BV5505AL4CZ, VFY:EM7BV5505AJ4NC, VFY:EM7BV5505AL4NC, VFY:EM7BV5505AL4BE, VFY:EM7BV5505AL4NL +34 more
EAN / UPC: 4333643412784, 4333643413019, 4333643409722, 4333643460853 +13 more
Also known as: Fujitsu ESPRIMO Mobile V Series ESPRIMO Mobile V5505 Intel® Core™2 Duo T5450 39.1 cm (15.4") 1 GB DDR2-SDRAM 120 GB Intel® GMA X3100 Windows Vista Business

Specifications

140 specifications in 21 groups

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T5450
Processor cores	2
Processor threads	2
Processor frequency	1.66 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 479
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T5000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Processor core voltage (AC)	1.075 - 1.175 V
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	667 MHz
Memory layout (slots x size)	1 x 1 GB
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	120 GB
Number of HDDs installed	1
HDD interface	SATA
HDD speed	5400 RPM
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA X3100
Maximum graphics card memory	0.358 GB
Maximum resolution	1920 x 1440 pixels

Audio

Specification	Value
Number of built-in speakers	2
Audio system manufacturer	Conexant

Camera

Specification	Value
Front camera	No

Optical drive

Specification	Value
Optical drive removable	No

Network

Specification	Value
Networking features	Gigabit Ethernet, Wireless LAN, Bluetooth
Wireless technology	IEEE 802.11a/g/n
Bluetooth	Yes
Bluetooth version	2.0+EDR
Networking manufacturer	Realtek

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	0
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	85
Keyboard keystroke	2 mm
Keyboard key pitch	1.9 cm

Software

Specification	Value
Operating system installed	Windows Vista Business
Drivers included	Yes
Trial software	Norton Internet Security
Bundled software	Adobe Acrobat Reader Bluetooth Toshiba Stack

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	30787
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4400 mAh
Battery capacity	48 Wh
Battery life (max)	3 h

Power

Specification	Value
AC adapter power	90 W
AC adapter input voltage	100 - 240 V
AC adapter output current	4.5 A
AC adapter output voltage	20 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 85%

Weight & dimensions

Specification	Value
Weight	2.7 kg
Width	364 mm
Depth	259 mm
Height	37 mm
Dimensions (WxDxH)	364 x 259 x 37 mm

Video

Specification	Value
Video adapter features	DirectX 9, DualView, Pixelshader 2.0
External video modes refresh rate (max)	60 Hz

Hard drive

Specification	Value
Storage drive controller	Serial ATA-150

Other features

Specification	Value
Infrared data port	No
Compliance industry standards	WMI / CIM / WBEM/PXE
Internal modem	No
BIOS flash ROM	Phoenix First BIOS
Supplied AC adapter type	AC
