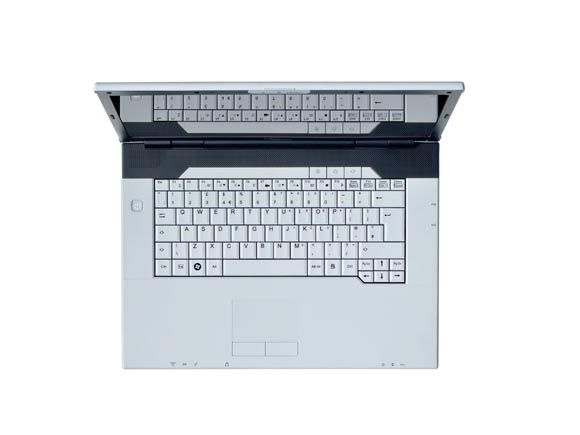

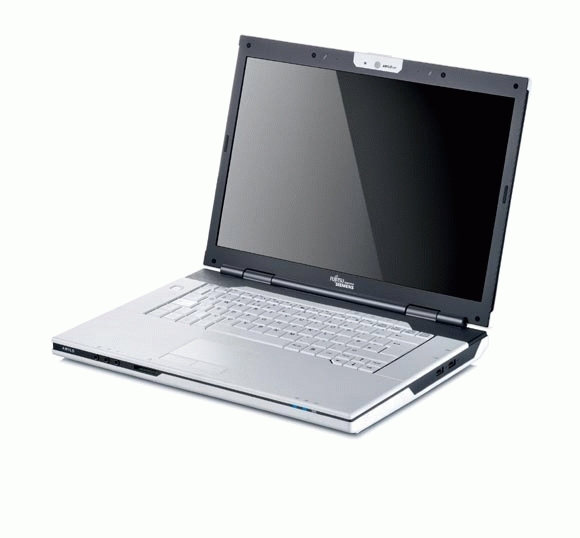

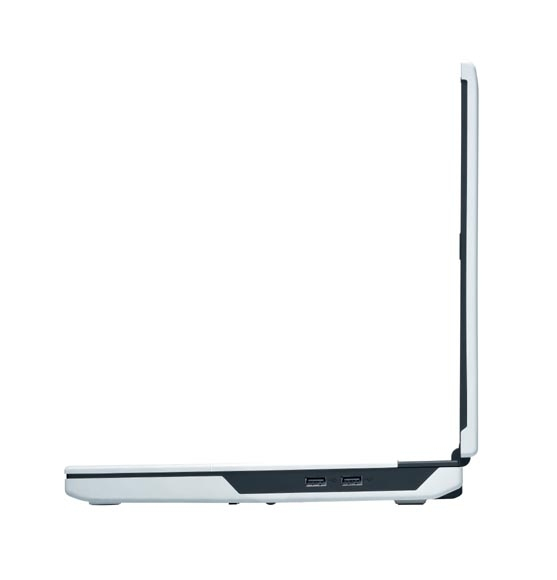

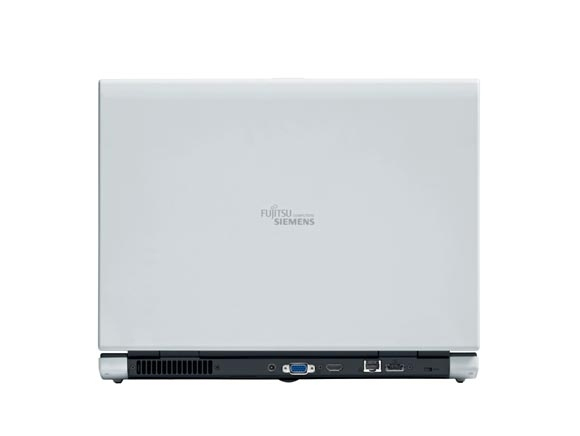

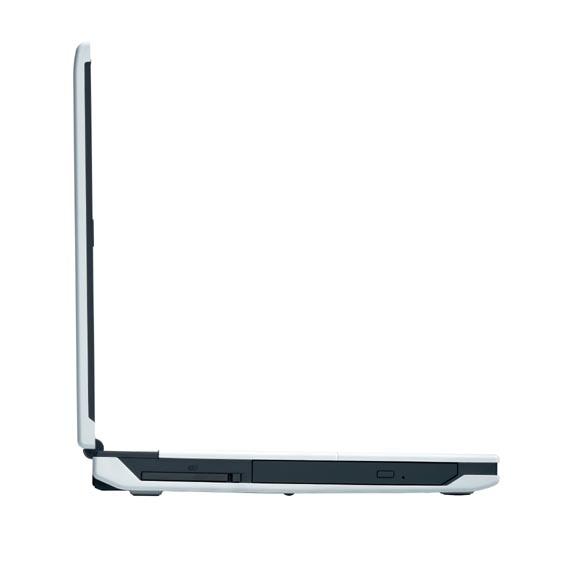

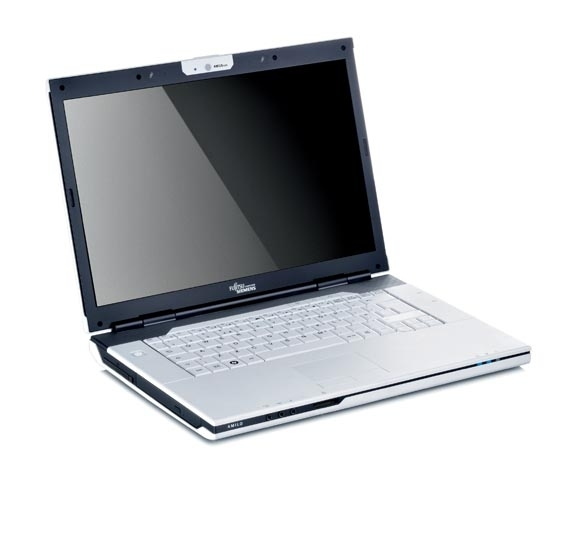

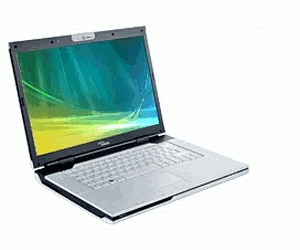

Fujitsu AMILO Pi 3540

Model AMILO Pi 3540Part no. CCE:GER-110138-010EAN 4049699016073

114 specifications Checked 4 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory4 GB
Storage320 GB
GraphicsNVIDIA® GeForce® 9300M GS

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 4 GB
Storage: 320 GB
Graphics: NVIDIA® GeForce® 9300M GS

Brand: Fujitsu
Category: Laptop
Model: AMILO Pi 3540
Part numbers: CCE:GER-110138-010, CCE:GER-110138-014, CCE:GBR-110138-005, CCE:GBR-110138-006, CCE:PI3540N0001NL, SPA-110138-009 +9 more
EAN / UPC: 4049699016073, 4049699029028, 4049699039225, 4049699039232 +5 more
Also known as: Fujitsu AMILO Pi 3540 Intel® Core™2 Duo P7350 39.1 cm (15.4") 4 GB DDR2-SDRAM 320 GB NVIDIA® GeForce® 9300M GS Windows Vista Home Premium

Specifications

114 specifications in 17 groups

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Display brightness	200 cd/m²
Display response rise/fall	16 ms
Contrast ratio (typical)	400:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	P7350
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Processor socket	Socket 479
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo P7000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R0
Thermal Design Power (TDP)	25 W
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 9300M GS
Maximum graphics card memory	0.256 GB

Audio

Specification	Value
Audio system	HD 7.1
Number of built-in speakers	2
Speaker power	1.5 W

Network

Specification	Value
Networking features	Ethernet/Fast Ethernet
Wireless technology	IEEE 802.11b/g/n
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	Yes
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® PM45 Express

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows Vista Home Premium

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	36750
Processor code	SLGE3
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	2200 mAh

Power

Specification	Value
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	3.2 kg
Width	358 mm
Depth	256 mm
Height (front)	3.7 cm
Height (rear)	4.1 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	No
Supplied AC adapter type	AC
