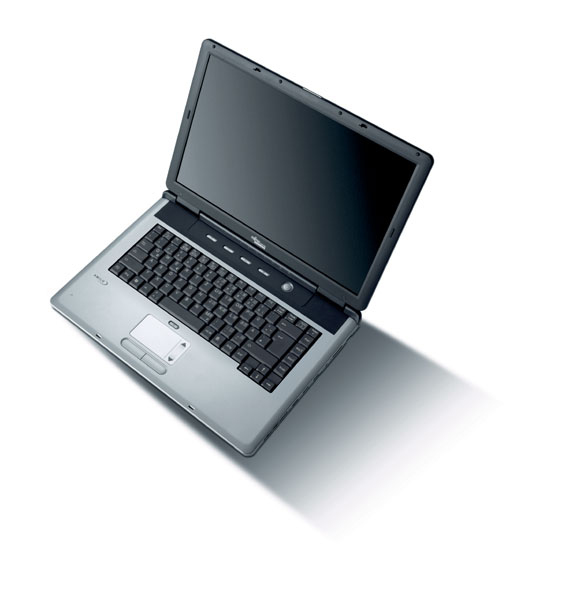

Fujitsu AMILO Pi 1536

Model AMILO Pi 1536Part no. CCN:GER-110103-009EAN 4333643009564

123 specifications Checked yesterday

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory1 GB
Storage120 GB
GraphicsAMD Mobility Radeon X1400

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 120 GB
Graphics: AMD Mobility Radeon X1400

Brand: Fujitsu
Category: Laptop
Model: AMILO Pi 1536
Part numbers: CCN:GER-110103-009, BAT:DE-NEAS07-PI1, CUZ:N-CRE-1536-007, CCN:CRE-110103-003, CCN:CRE-110103-002, LKN:GBR-159900-016 +2 more
EAN / UPC: 4333643009564, 4045827786153, 4045827843641, 4045827965848
Also known as: Fujitsu AMILO Pi 1536 Intel® Core™2 Duo T5600 Laptop 39.1 cm (15.4") 1 GB DDR2-SDRAM 120 GB AMD Mobility Radeon X1400 Windows XP Home Edition

Specifications

123 specifications in 20 groups

Design

Specification	Value
Product type	Laptop

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T5600
Processor cores	2
Processor threads	2
Processor frequency	1.83 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T5000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	B2
Thermal Design Power (TDP)	34 W
Tjunction	100 °C
Processor core voltage (AC)	1.0375 - 1.30 V
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	11
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory slots	2x SO-DIMM

Storage

Specification	Value
Total storage capacity	120 GB
HDD interface	SATA
HDD speed	5400 RPM

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon X1400
Maximum graphics card memory	0.128 GB

Audio

Specification	Value
Audio system	Azalia Codec (7.1 SPDIF)
Number of built-in speakers	2

Camera

Specification	Value
Front camera	No

Optical drive

Specification	Value
CD read speed	24x
CD write speed	24x
CD rewrite speed	16x
DVD-R Double Layer write speed	4x
DVD+R Double Layer write speed	2.4x
DVD+RW speed	6x
DVD-RW speed	6x
DVD read speed	8x

Network

Specification	Value
Networking features	Ethernet/Fast Ethernet/Gigabit Ethernet
Wireless technology	IEEE 802.11a/b/g
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	Yes
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	Yes
Microphone in	Yes
Docking connector	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
I/O ports	1 x ExpressCard 34/54
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 945PM Express

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows XP Home Edition

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	27254
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4400 mAh
Battery life (max)	2 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Weight & dimensions

Specification	Value
Weight	3.1 kg
Width	360 mm
Depth	269 mm
Height	37 mm
Dimensions (WxDxH)	360 x 269 x 37 mm

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92
Supplied AC adapter type	AC
