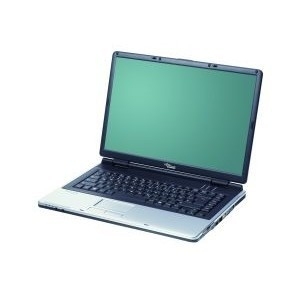

Fujitsu AMILO Pi 1505 Intel T5300

Model AMILO Pi 1505 Intel T5300Part no. BAT:CZ1-NEAS07-PI2

122 specifications Checked 3 days ago

Display39.1 cm (15.4")
ProcessorIntel® Core™2 Duo
Memory0.5 GB
Storage200 GB
GraphicsIntel® GMA 950
Battery4000 mAh

See all specifications

Overview

Display: 39.1 cm (15.4")
Processor: Intel® Core™2 Duo
Memory: 0.5 GB
Storage: 200 GB
Graphics: Intel® GMA 950
Battery: 4000 mAh

Brand: Fujitsu
Category: Laptop
Model: AMILO Pi 1505 Intel T5300
Part number: BAT:CZ1-NEAS07-PI2
Also known as: Fujitsu AMILO Pi 1505 Intel T5300 Intel® Core™2 Duo 39.1 cm (15.4") 0.5 GB DDR2-SDRAM 200 GB Intel® GMA 950 Windows Vista Home Premium

Specifications

122 specifications in 20 groups

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display brightness	180 cd/m²
Contrast ratio (typical)	300:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T5300
Processor cores	2
Processor threads	2
Processor frequency	1.73 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	533 MHz
Processor socket	Socket 479
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T5000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	L2
Thermal Design Power (TDP)	34 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	13
ECC supported by processor	No

Memory

Specification	Value
Internal memory	0.5 GB
Internal memory type	DDR2-SDRAM

Storage

Specification	Value
Total storage capacity	200 GB
HDD interface	SATA
HDD speed	5400 RPM
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 950
Maximum graphics card memory	0.128 GB

Audio

Specification	Value
Audio system	7.1 SPDIF
Number of built-in speakers	2

Camera

Specification	Value
Front camera	No

Optical drive

Specification	Value
CD write speed	24x
CD-RW write speed	20x
DVD-R write speed	6x
DVD-RW write speed	4x
DVD+R write speed	6x
DVD+R Double Layer write speed	2.4x
DVD+RW write speed	4x
DVD-ROM read speed	8x

Network

Specification	Value
Wireless technology	Yes
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	2
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	Yes
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 945GM Express

Keyboard

Specification	Value
Pointing device	Touchpad
Hot keys	7

Software

Specification	Value
Operating system installed	Windows Vista Home Premium
Bundled software	-Microsoft Works -Vista DVD Playback Pack -Nero 7 Essential -Adobe Reader -Norton Internet Security Suite

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	29758
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4000 mAh
Battery life (max)	4 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Weight	2.8 kg
Width	358 mm
Depth	255 mm
Dimensions (WxDxH)	358 x 255 x 36 mm

Other features

Specification	Value
Infrared data port	No
Compliance industry standards	IEEE 802.11 a/b/g
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92
