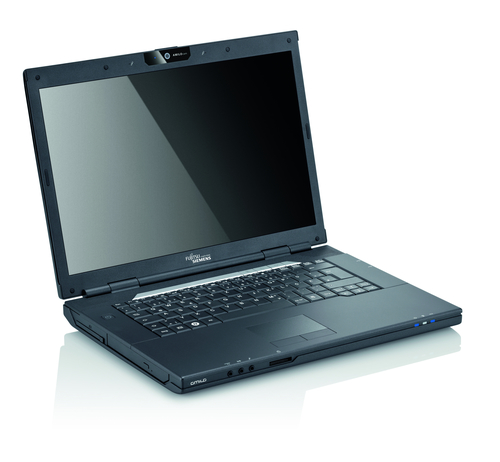

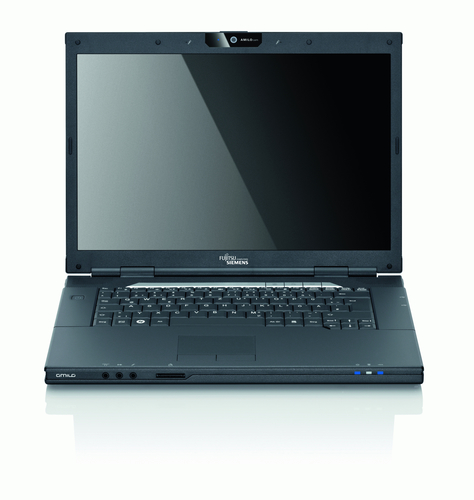

Fujitsu AMILO Notebook Pi 3540

Model AMILO Notebook Pi 3540Part no. CCE:PI3540N0003NL

148 specifications Checked 2 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel Pentium Mobile
Memory4 GB
Storage250 GB
GraphicsNVIDIA® GeForce® 9300M GS

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel Pentium Mobile
Memory: 4 GB
Storage: 250 GB
Graphics: NVIDIA® GeForce® 9300M GS

Brand: Fujitsu
Category: Laptop
Model: AMILO Notebook Pi 3540
Part number: CCE:PI3540N0003NL
Also known as: Fujitsu AMILO Notebook Pi 3540 Intel Pentium Mobile T3400 39.1 cm (15.4") 4 GB DDR2-SDRAM 250 GB NVIDIA® GeForce® 9300M GS Windows Vista Home Premium Black

Specifications

148 specifications in 22 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Display surface	Matt
Display response rise/fall	16 ms
Contrast ratio (typical)	400:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	T3400
Processor cores	2
Processor threads	2
Processor frequency	2.16 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Pentium T3000 Series for Mobile
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	13
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 2 GB
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD-RW
Card reader integrated	Yes
Compatible memory cards	MiniSD, MMC, SD, SDHC, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 9300M GS
Discrete graphics card memory	0.25 GB
Maximum graphics card memory	1.279 GB
Maximum resolution	1920 x 1080 pixels

Audio

Specification	Value
Audio system	Realtek ALC888
Number of built-in speakers	2
Speaker power	3 W

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP
Video capturing speed	30 fps

Optical drive

Specification	Value
CD read speed	24x
CD-R write speed	24x
Optical drive interface	SATA
CD-RW write speed	16x
DVD-R write speed	8x
DVD-R Double Layer write speed	6x
DVD-RW write speed	6x
DVD+R write speed	8x
DVD+R Double Layer write speed	6x
DVD+RW write speed	8x
DVD-RAM write speed	5x
DVD read speed	8x

Network

Specification	Value
Networking features	Fast Ethernet
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® PM45 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	85
Hot keys	Yes

Software

Specification	Value
Operating system installed	Windows Vista Home Premium
Trial software	Microsoft Office Home & Student
Bundled software	Microsoft Works, Adobe Acrobat Reader, Windows Mail, Windows Calendar, Microsoft Internet Explorer, Nero Essentials S, Vista DVD Playback Pack, Windows Media Player
Compatible operating systems	Microsoft Windows Vista Home Basic 32-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	35583
Processor code	SLB3P
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	2200 mAh
Battery life (max)	2.33 h
Battery recharge time	1.58 h

Power

Specification	Value
AC adapter power	90 W
AC adapter input voltage	110 - 240 V
AC adapter output current	4.5 A
AC adapter output voltage	20 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 90%

Certificates

Specification	Value
Certification	CE, R&TTE, RoHS

Weight & dimensions

Specification	Value
Weight	3.2 kg
Width	358 mm
Depth	256 mm
Height (front)	3.7 cm
Height (rear)	4.1 cm

Other features

Specification	Value
Infrared data port	No
Power consumption (standby)	1.5 W
Internal modem	No
Supplied AC adapter type	AC
