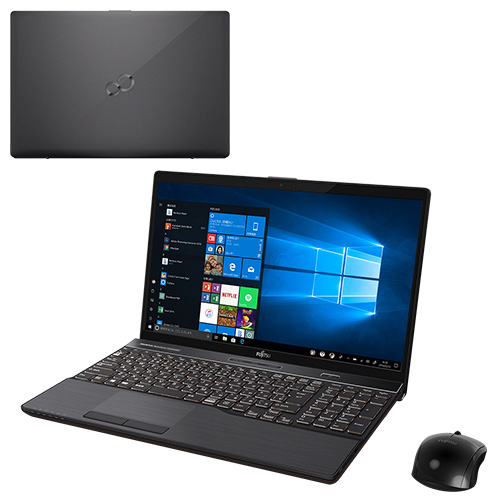

Fujitsu LIFEBOOK AH77/D1 Intel® Core™ i7 i7-8565U Laptop

LIFEBOOK AH77/D1 Intel® Core™ i7 i7-8565U Laptop

39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 1.12 TB HDD+SSD Wi-Fi 5 (802.11ac) Windows 10 Home Black

Model AH77/D1Part no. FMVA77D1BEAN 4549210368624

95 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage1.12 TB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 1.12 TB
Graphics: Not available

Brand: Fujitsu
Category: Laptop
Model: AH77/D1
Part numbers: FMVA77D1B, FMVA77D1L, FMVA77D1W
EAN / UPC: 4549210368624, 4549210368631, 4549210368648
Also known as: Fujitsu LIFEBOOK AH77/D1 Intel® Core™ i7 i7-8565U Laptop 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 1.12 TB HDD+SSD Wi-Fi 5 (802.11ac) Windows 10 Home Black

Specifications

95 specifications in 16 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8565U
Processor cores	4
Processor boost frequency	4.6 GHz
Processor frequency	1.8 GHz
Processor cache	8 MB
Bus type	OPI
Configurable TDP-up frequency	2 GHz
Configurable TDP-up	25 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 4 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1.12 TB
Storage media	HDD+SSD
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	5400 RPM
Total SSDs capacity	128 GB
Number of SSDs installed	1
SSD capacity	128 GB
Optical drive type	Blu-Ray DVD Combo
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Headphone outputs	1
Line-in	Yes
Microphone in	Yes

Keyboard

Specification	Value
Numeric keypad	Yes
Keyboard number of keys	108

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	45 Wh

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Weight	2.3 kg
Width	361 mm
Depth	244 mm
Height	27.1 mm
