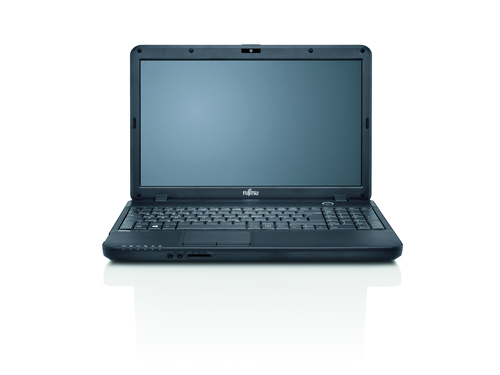

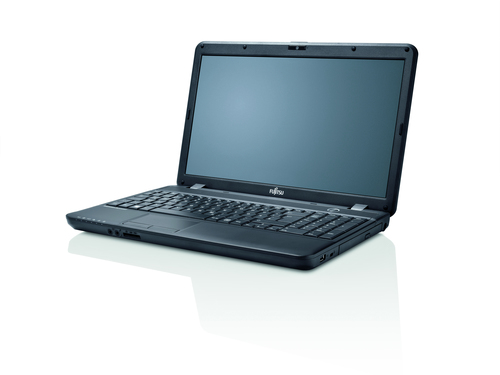

Fujitsu LIFEBOOK AH502 Intel® Pentium® 2020M Laptop

39.6 cm (15.6") HD 4 GB DDR3-SDRAM 500 GB HDD Wi-Fi 4 (802.11n) Windows 8 Black

Model AH502Part no. VFY:AH502M41B5ESEAN 4053026421867

174 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Pentium®
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Pentium®
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: Fujitsu
Category: Laptop
Model: AH502
Part numbers: VFY:AH502M41B5ES, VFY:AH502M52A5ID, VFY:AH502M5212GB, VFY:AH502M5102GB, VFY:AH502MC2A5RU, VFY:AH502MC2B5RU +11 more
EAN / UPC: 4053026421867, 4053026443104, 4053026451208, 4053026442688 +2 more
Also known as: Fujitsu LIFEBOOK AH502 Intel® Pentium® 2020M Laptop 39.6 cm (15.6") HD 4 GB DDR3-SDRAM 500 GB HDD Wi-Fi 4 (802.11n) Windows 8 Black

Specifications

174 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	HD
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	200 cd/m²
Contrast ratio (typical)	400:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	2020M
Processor cores	2
Processor threads	2
Processor frequency	2.4 GHz
System bus rate	5 GT/s
Processor cache	2 MB
Processor cache type	Smart Cache
Processor socket	PGA988
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Pentium 2000 series for Mobile
Processor codename	Ivy Bridge
Bus type	DMI
FSB Parity	No
Stepping	L1
Thermal Design Power (TDP)	35 W
Tjunction	90 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	24
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	5400 RPM
HDD size	2.5"
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	SD, SDHC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Optical drive

Specification	Value
Disc types supported	CD, DVD

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
Integrated 4G WiMAX	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel® HM70 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Windows keys	Yes
Number of hot keys	106

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Smart Connect Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	No
Intel® Rapid Start Technology	No
Intel® Smart Cache	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	71142
Processor code	SR0U1
Processor package size	37.5 x 37.5 (rPGA988B)
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	4400 mAh
Battery capacity	48 Wh
Battery life (max)	6 h

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	20 V
Power auto-sensing	Yes
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection	Yes
Password protection type	BIOS, HDD, Supervisor

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	20 - 85%

Weight & dimensions

Specification	Value
Weight	2.5 kg
Width	378 mm
Depth	252 mm
Height	36.5 mm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Manual	Yes
Quick start guide	Yes
Warranty card	Yes
