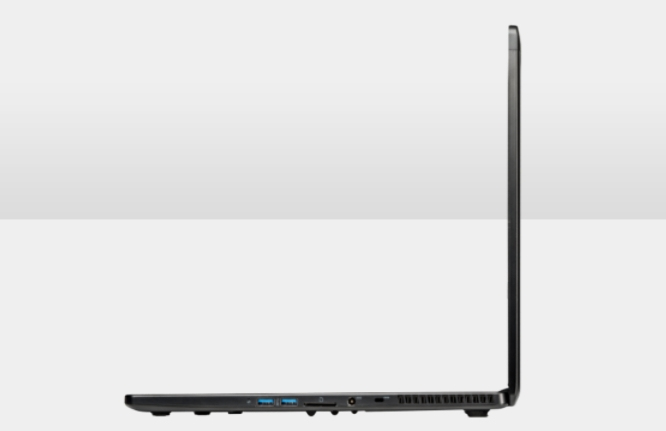

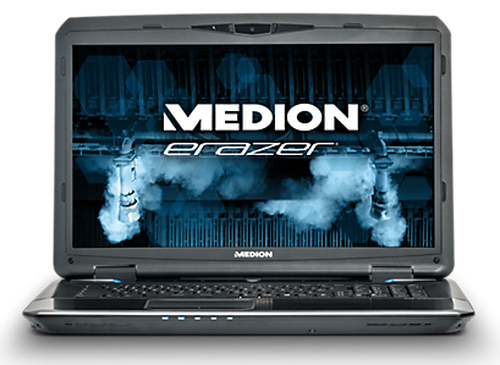

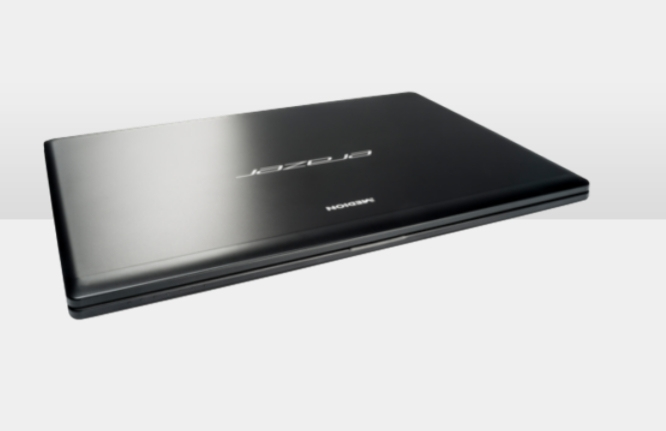

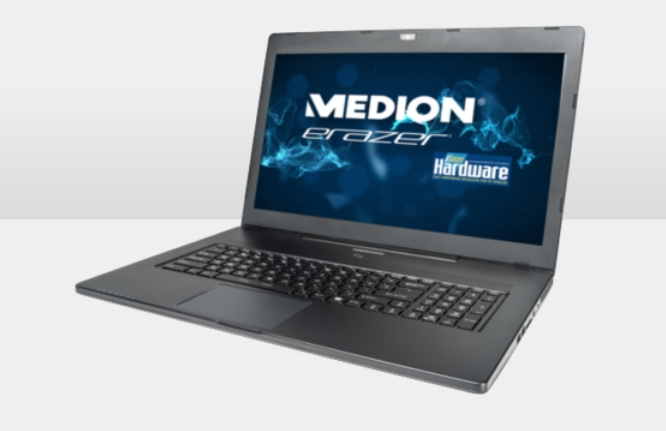

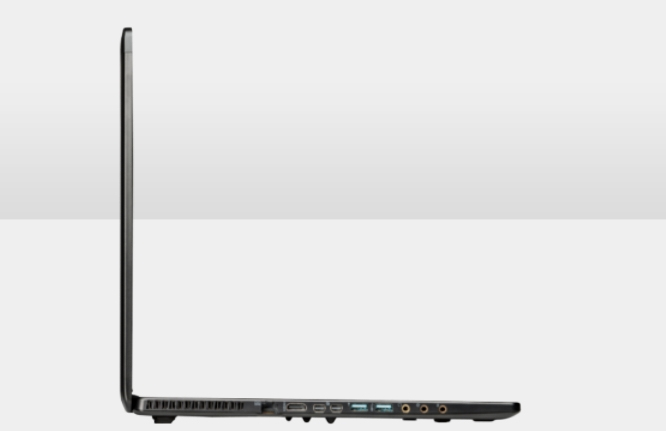

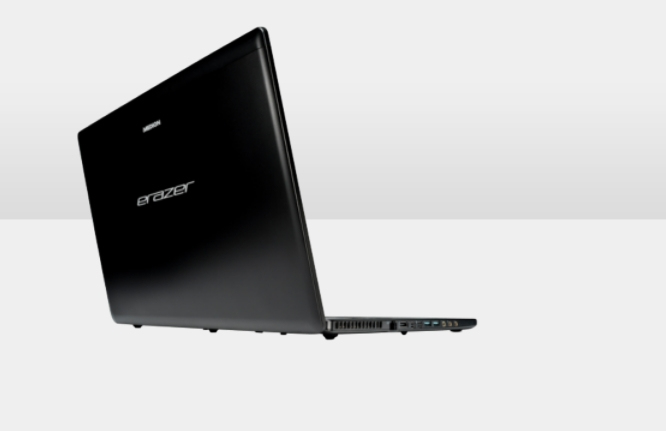

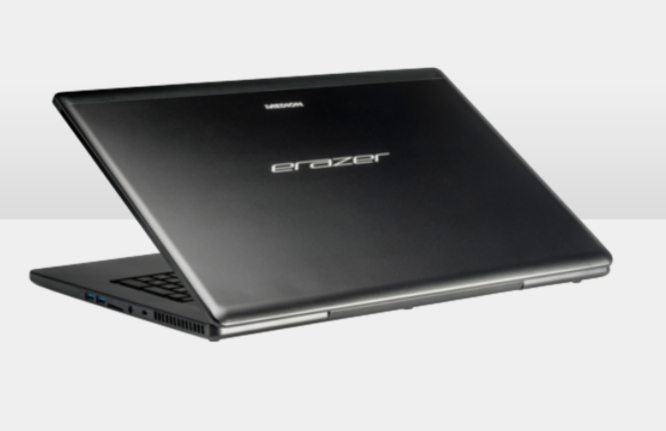

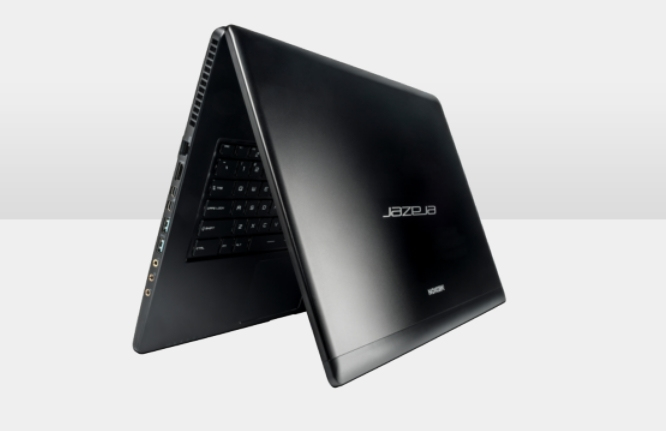

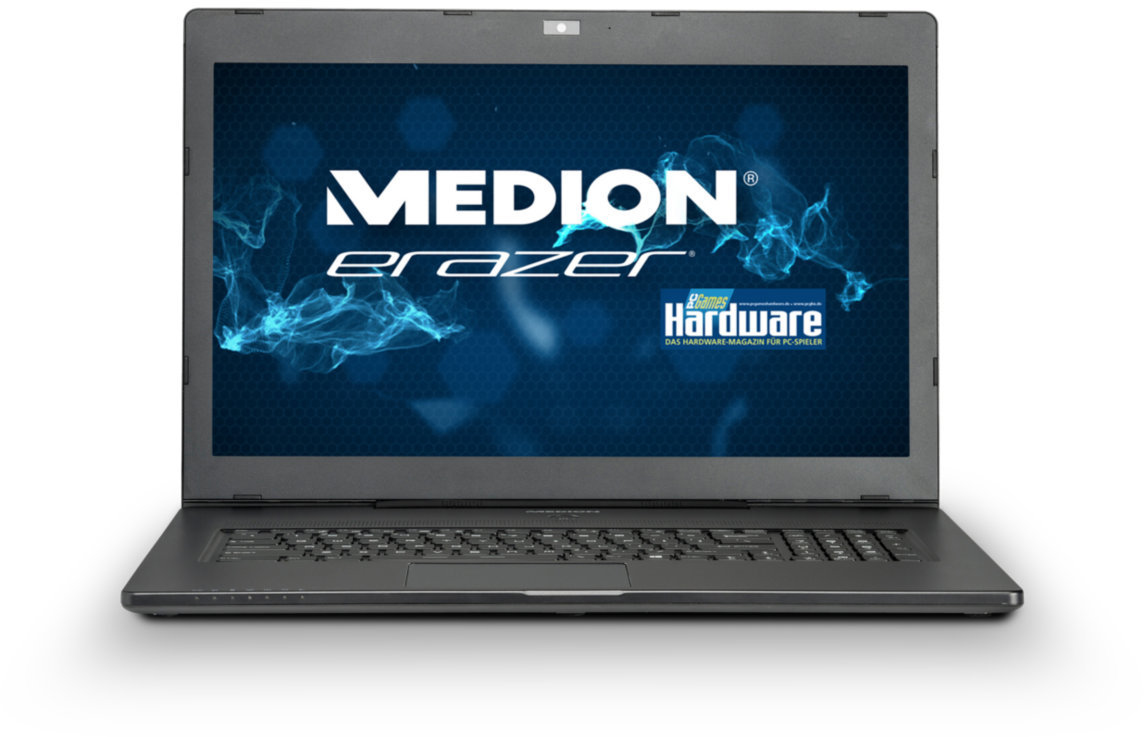

ERAZER X7613 slim

Model X7613 slimPart no. 30017367EAN 4015625987953

165 specifications Checked 2 days ago

Display43.9 cm (17.3")
Resolution1600 x 900 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage1 TB
GraphicsNVIDIA® GeForce® GTX 860M

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1600 x 900 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® GTX 860M

Brand: ERAZER
Category: Laptop
Model: X7613 slim
Part numbers: 30017367, 30017373, 30018217, 30018218
EAN / UPC: 4015625987953, 4015625987960, 4015625990571, 4015625990588
Also known as: ERAZER X7613 slim Intel® Core™ i7 i7-4710HQ Laptop 43.9 cm (17.3") HD+ 8 GB DDR3L-SDRAM 1 TB HDD NVIDIA® GeForce® GTX 860M Wi-Fi 4 (802.11n) Windows 8.1 Black Q

Specifications

165 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1600 x 900 pixels
Touchscreen	No
HD type	HD+
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4710HQ
Processor cores	4
Processor threads	8
Processor boost frequency	3.5 GHz
Processor frequency	2.5 GHz
System bus rate	5 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	BGA 1364
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4700 Mobile series
Processor codename	Haswell
Bus type	DMI2
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	47 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 860M
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.3
On-board graphics card ID	0x416
Number of discrete graphics cards installed	1
Number of discrete graphics cards supported	1

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Built-in subwoofer	Yes
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	2
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	Yes
Microphone in	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Motherboard chipset	Intel® HM87

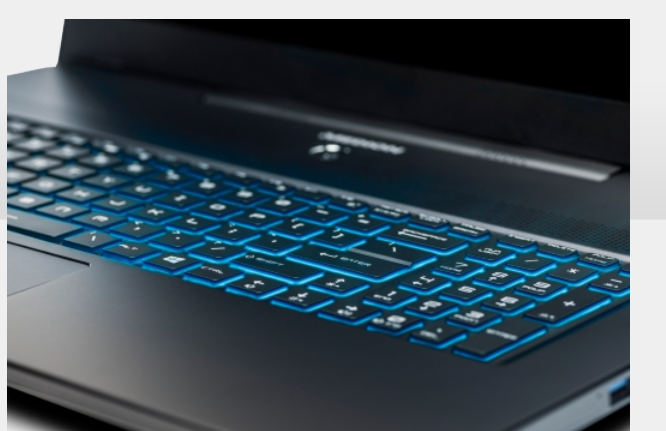

Keyboard

Specification	Value
Numeric keypad	Yes
Windows keys	Yes
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit
Drivers included	Yes
Trial software	Office 365 Home Premium, McAfee LiveSafe 2014
Bundled software	Cyberlink Power2Go, Cyberlink PowerDVD, Cyberlink Youcam

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	No
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	2.0
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Processor ARK ID	78930
Processor code	SR1PX
Processor package size	37.5 x 32 x 1.6 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Number of battery cells	6
Battery capacity	5400 mAh

Power

Specification	Value
AC adapter power	150 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Certificates

Specification	Value
Wi-Fi certified	Yes

Weight & dimensions

Specification	Value
Weight	2.68 kg
Width	418 mm
Depth	288 mm
Height	23 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Warranty card	Yes
