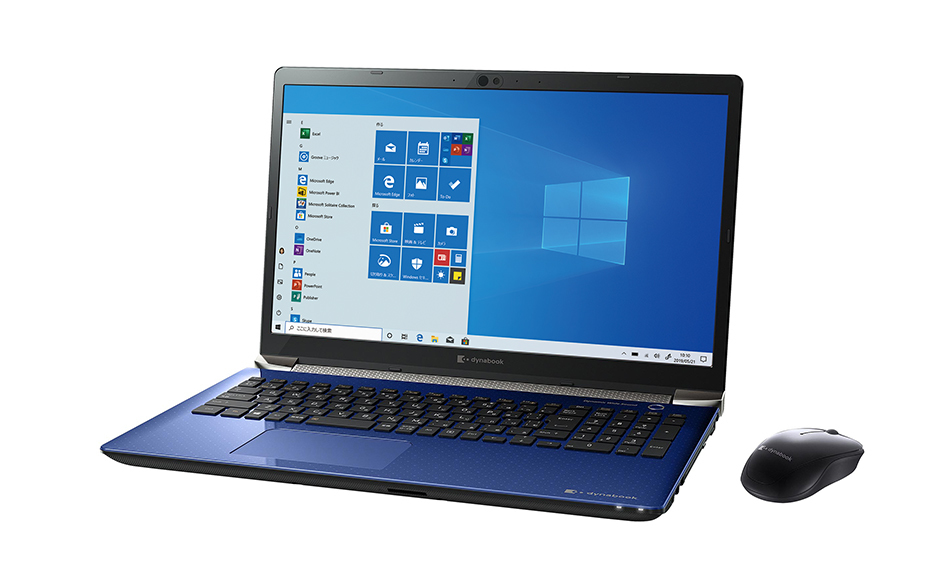

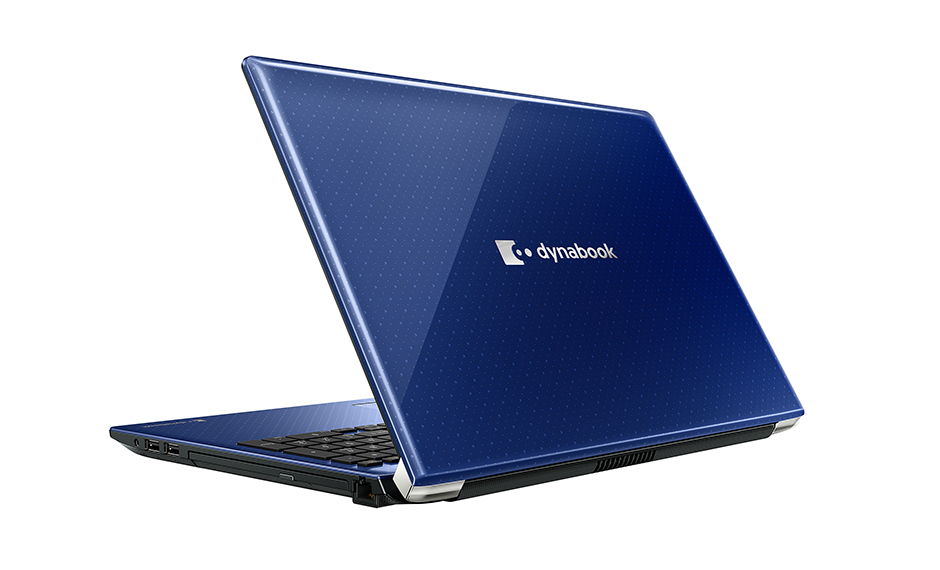

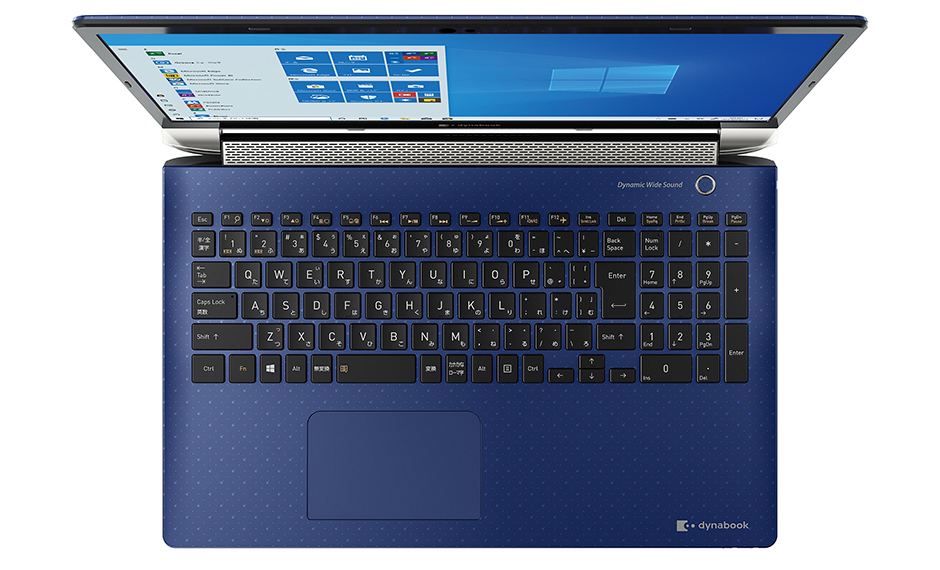

Dynabook T9 Intel® Core™ i7 i7-8565U Laptop

T9 Intel® Core™ i7 i7-8565U Laptop

40.9 cm (16.1") 16 GB DDR4-SDRAM 1.25 TB HDD+SSD Wi-Fi 5 (802.11ac) Windows 10 Home Blue Japanese

Model T9Part no. P2T9LPBLEAN 4974019985060

117 specifications Checked today

Display40.9 cm (16.1")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1.25 TB
GraphicsNot available

See all specifications

Overview

Display: 40.9 cm (16.1")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1.25 TB
Graphics: Not available

Brand: Dynabook
Category: Laptop
Model: T9
Part number: P2T9LPBL
EAN / UPC: 4974019985060
Also known as: Dynabook T9 Intel® Core™ i7 i7-8565U Laptop 40.9 cm (16.1") 16 GB DDR4-SDRAM 1.25 TB HDD+SSD Wi-Fi 5 (802.11ac) Windows 10 Home Blue Japanese

Specifications

117 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Blue
Form factor	Clamshell

Display

Specification	Value
Display diagonal	40.9 cm (16.1")
Display resolution	1920 x 1080 pixels
Touchscreen	No
Panel type	TFT
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8565U
Processor cores	4
Processor boost frequency	4.6 GHz
Processor frequency	1.8 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	OPI
Configurable TDP-up frequency	2 GHz
Configurable TDP-up	25 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1.25 TB
Storage media	HDD+SSD
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	5400 RPM
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express
Optical drive type	Blu-Ray DVD Combo
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 620

Audio

Specification	Value
Audio system	DTS Studio Sound
Speakers manufacturer	Onkyo
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Keyboard number of keys	106
Keyboard language	Japanese
Keyboard keystroke	1.5 mm
Keyboard key pitch	1.9 cm

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Pre-installed software	Microsoft Office Home & Business 2019

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	9 h
Battery recharge time	2.5 h

Power

Specification	Value
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Windows Hello	Yes
Password protection	Yes
Password protection type	BIOS, HDD

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Weight	2.4 kg
Width	379 mm
Depth	256.5 mm
Height	23.7 mm

Packaging content

Specification	Value
Mouse included	Yes
Cables included	AC
Manual	Yes
Power cord included	Yes
Warranty card	Yes

Other features

Specification	Value
Power consumption (typical)	9 W
