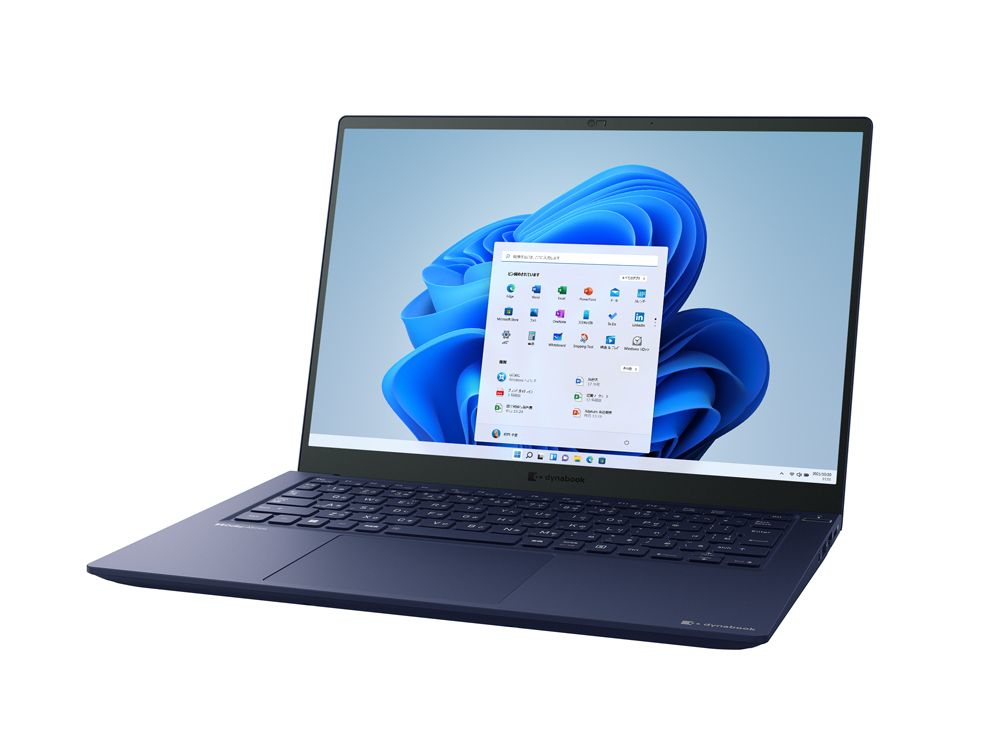

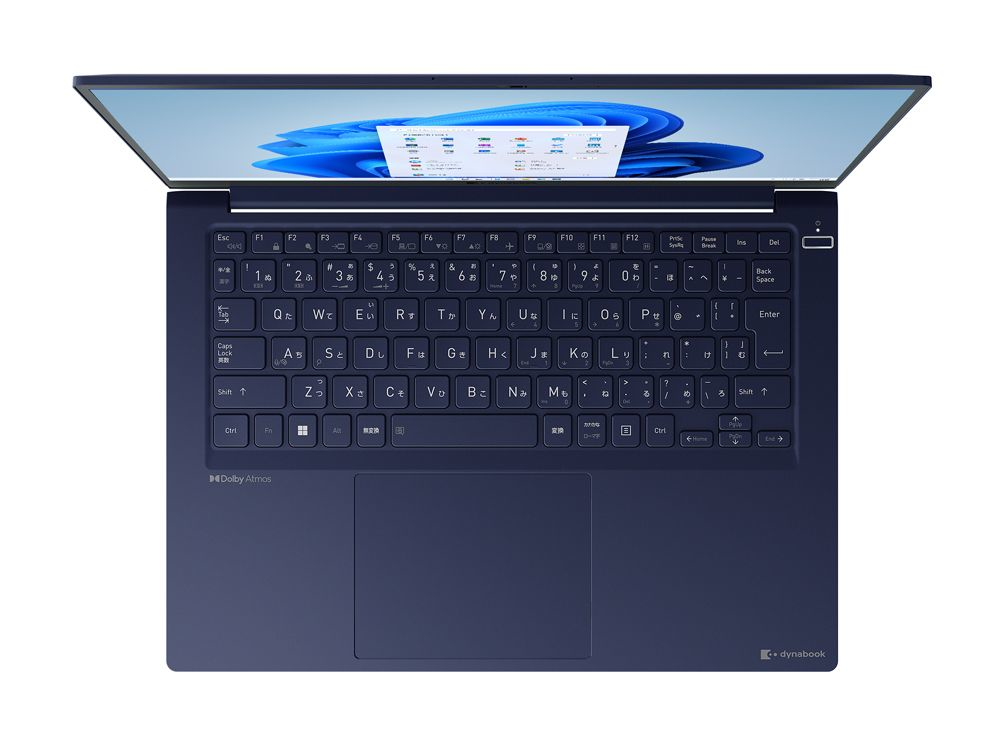

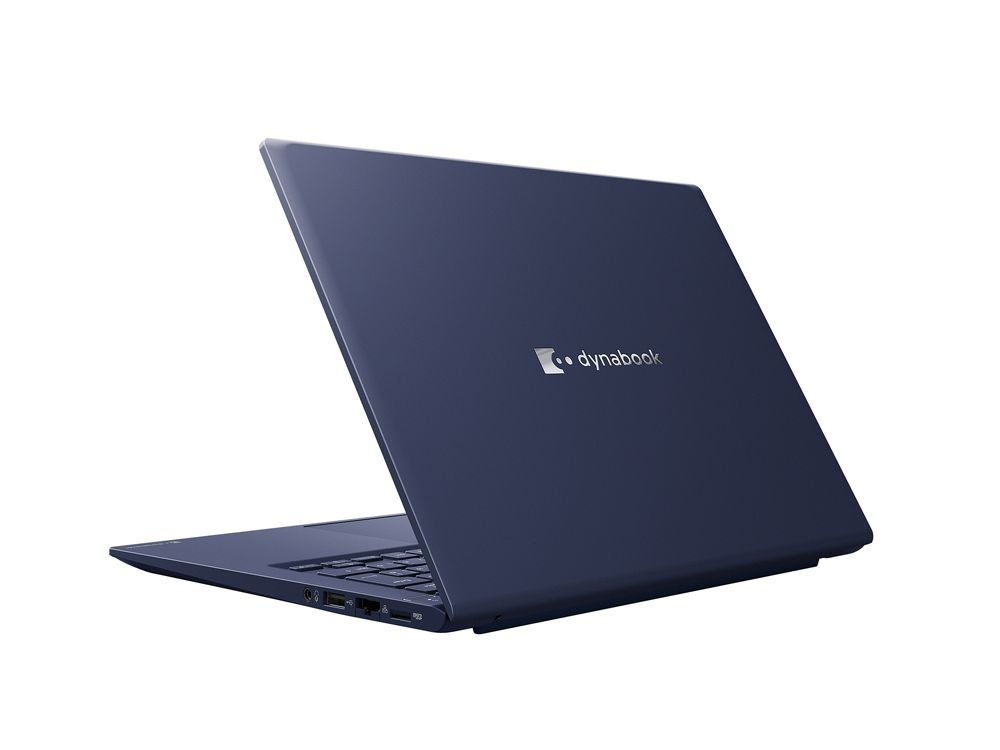

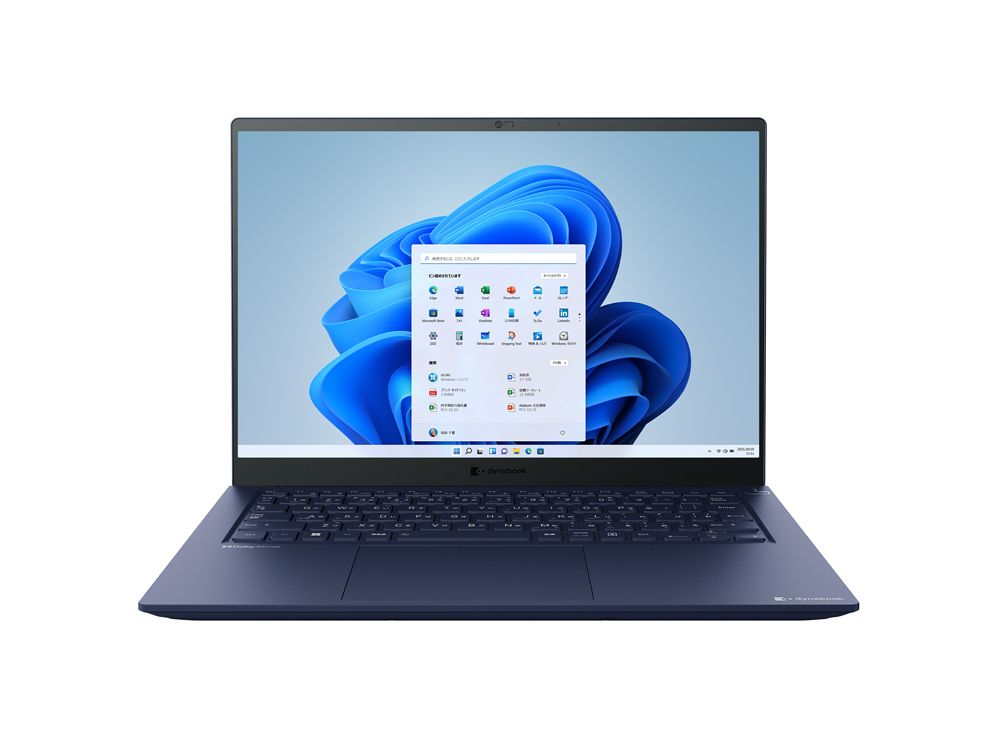

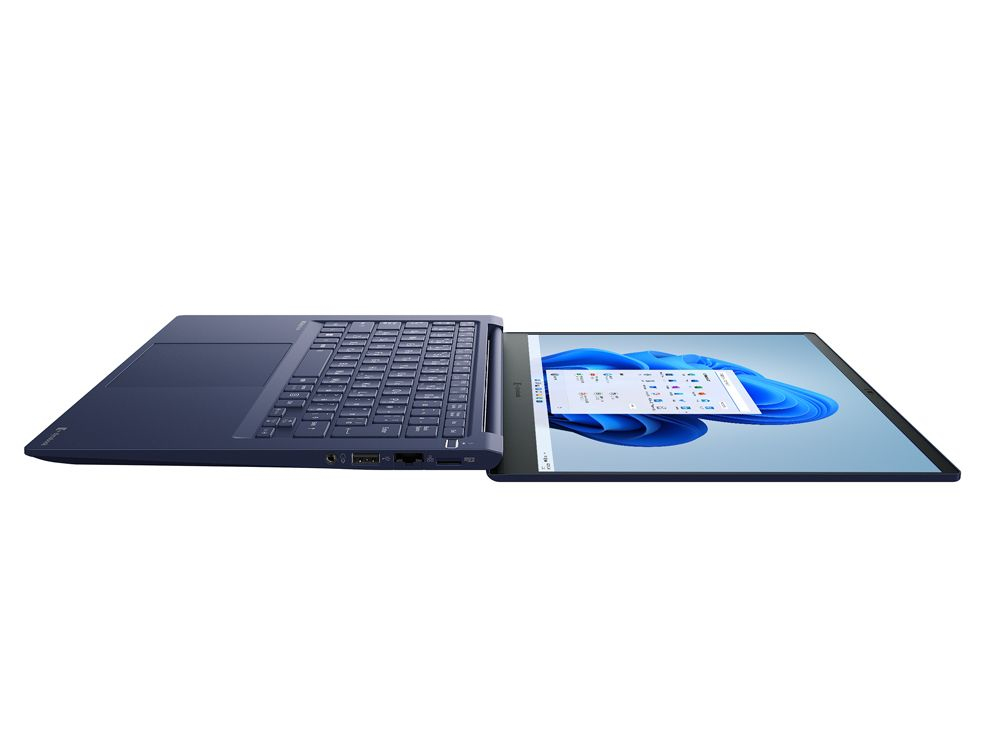

Dynabook RZ/LV Intel® Core™ i7 i7-1260P Laptop

RZ/LV Intel® Core™ i7 i7-1260P Laptop

35.6 cm (14") WUXGA 16 GB LPDDR5-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Blue

Model RZ/LVPart no. W6RZLV7CBL

102 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: Dynabook
Category: Laptop
Model: RZ/LV
Part numbers: W6RZLV7CBL, W6RZLV7CAL, W6RZLV7BBL, W6RZLV7BAL, W6RZLV5CBL, W6RZLV7RAL +2 more
Also known as: Dynabook RZ/LV Intel® Core™ i7 i7-1260P Laptop 35.6 cm (14") WUXGA 16 GB LPDDR5-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Blue

Specifications

102 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Blue
Colour name	Dark Tech Blue
Form factor	Clamshell

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	TFT
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-1260P
Processor cores	12
Processor threads	16
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.4 GHz
Processor cache	18 MB
Processor cache type	Smart Cache
Configurable TDP-down	20 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	On-board
Memory layout (slots x size)	1 x 16 GB
Memory slots	Not available
Maximum internal memory	16 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics
On-board graphics card memory	8 GB

Audio

Specification	Value
Audio system	Dolby Atmos
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB4 Gen 2x2 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	White
Keyboard number of keys	86
Physical layout	JIS
Keyboard keystroke	1.5 mm
Keyboard key pitch	1.9 cm

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Intel® High Definition Audio (Intel® HD Audio)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	20.5 h
Battery recharge time	3.5 h

Power

Specification	Value
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, HDD

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Weight	940 g
Width	312.4 mm
Depth	224 mm
Height	15.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
Quick start guide	Yes
Warranty card	Yes

Other features

Specification	Value
Power consumption (typical)	7 W
