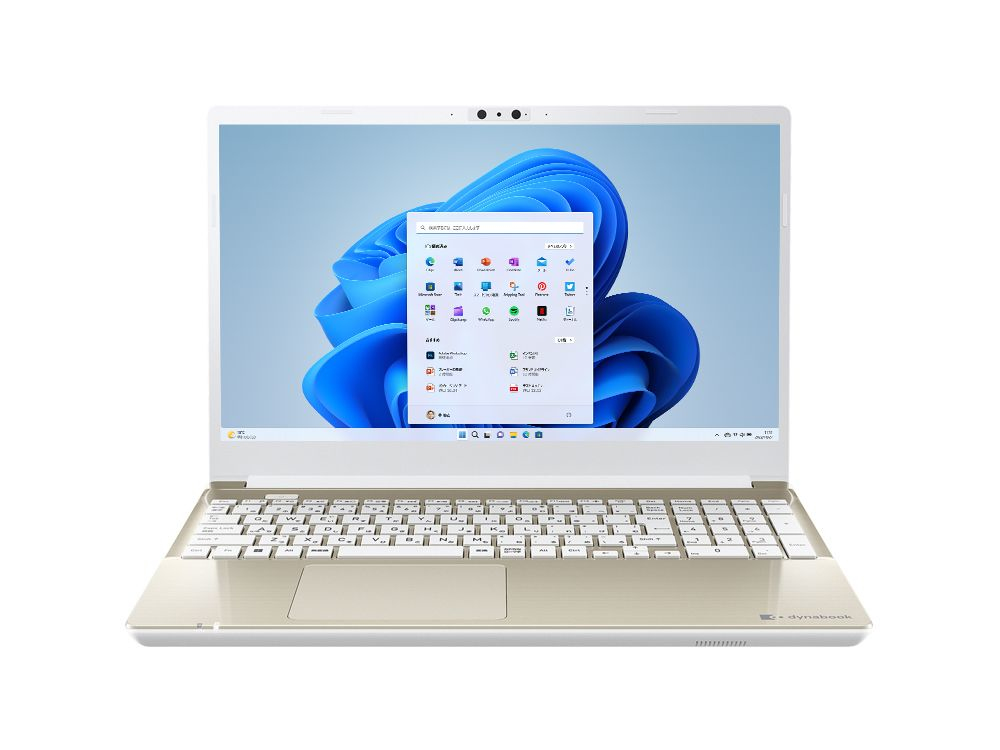

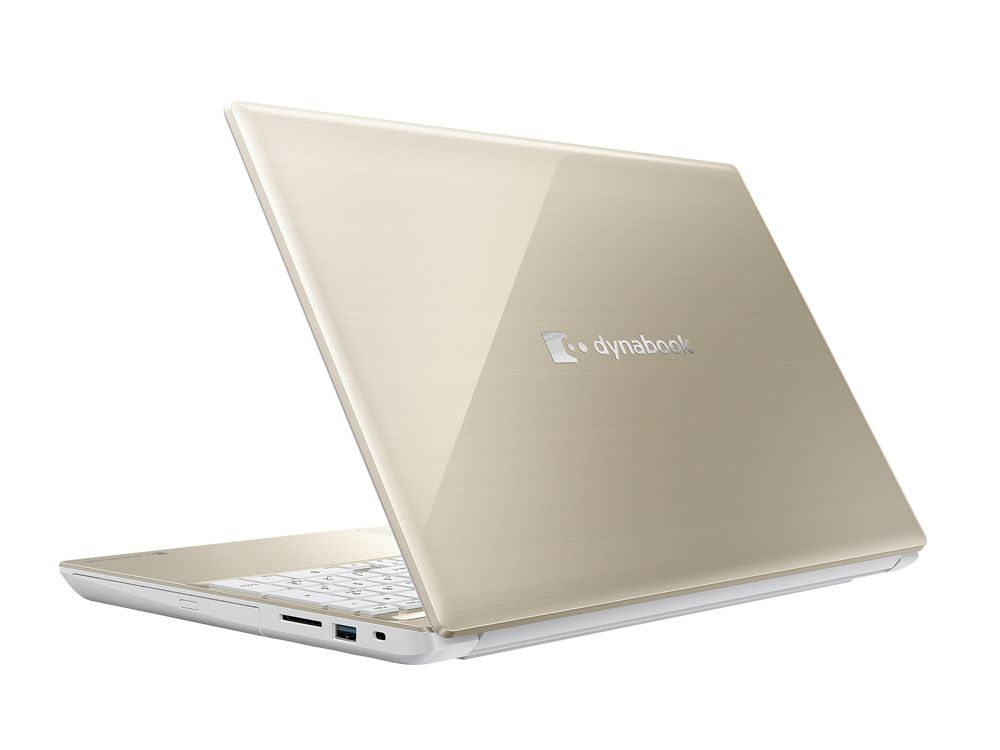

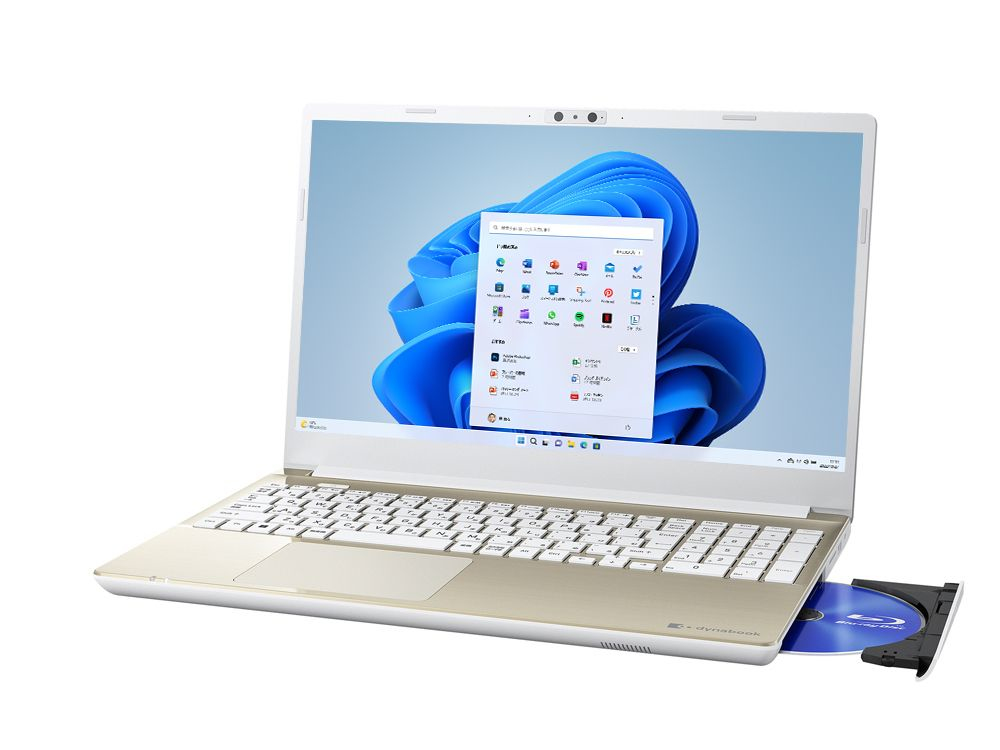

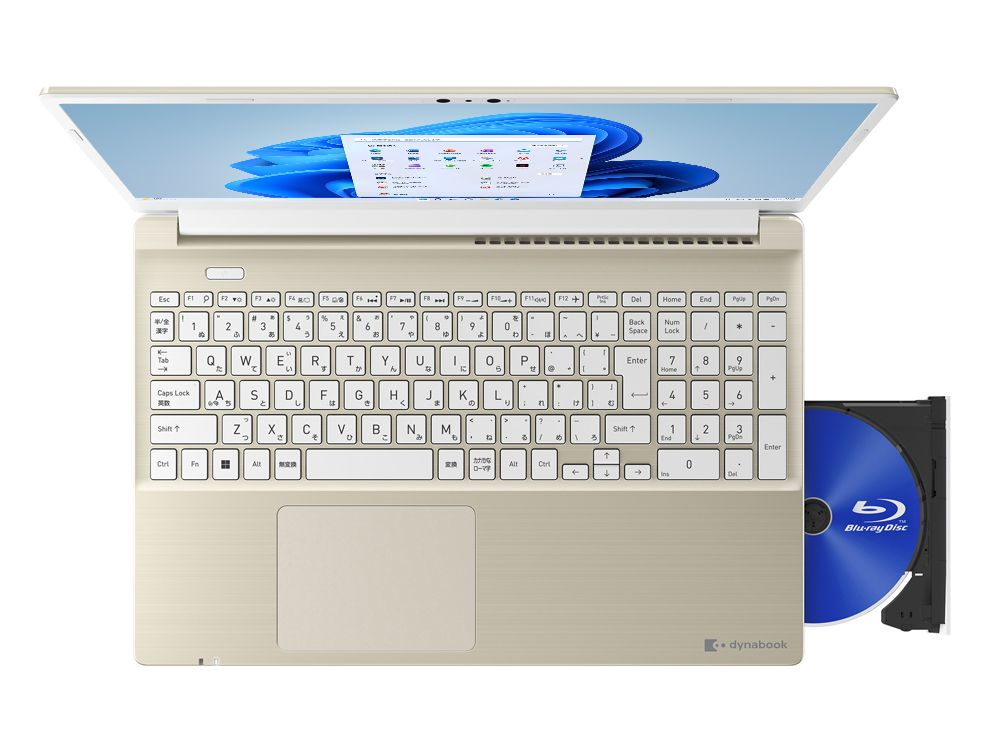

Dynabook AZ/HW Intel® Core™ i5 i5-1340P Laptop

AZ/HW Intel® Core™ i5 i5-1340P Laptop

39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Gold, White QWERTY Englis

Model AZ/HWPart no. W6AZHW7BAG

105 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: Dynabook
Category: Laptop
Model: AZ/HW
Part numbers: W6AZHW7BAG, W6AZHW5BAG, W6AZHW5CAG, W6AZHW7CBG, W6AZHW7BBG, W6AZHW7CAG
Also known as: Dynabook AZ/HW Intel® Core™ i5 i5-1340P Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Gold, White QWERTY Englis

Specifications

105 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Gold, White
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	TFT
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Anti-glare screen	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	13th gen Intel® Core™ i5
Processor model	i5-1340P
Processor cores	12
Processor threads	16
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.6 GHz
Efficient-core Max Turbo Frequency	3.4 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Configurable TDP-down	20 W
Maximum turbo power	64 W
Processor base power	28 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB
Memory channels	Dual-channel
ECC	No

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
Optical drive type	Blu-Ray ROM
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics
Graphics card Open GL support	Yes

Audio

Specification	Value
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Wi-Fi data rate (max)	2400 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Combo headphone/mic port	Yes
HDCP	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Keyboard

Specification	Value
Pointing device	Clickpad
Numeric keypad	Yes
Keyboard number of keys	105
Keyboard layout	QWERTY
Keyboard language	English, Japanese
Physical layout	JIS

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Bundled software	Microsoft Office Home & Business 2021、Microsoft 365 Basic

Processor special features

Specification	Value
CPU configuration (max)	1

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	21.5 Wh
Battery life (max)	9.5 h
Battery recharge time	3 h

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Face recognition	Yes
Password protection	Yes
Password protection type	BIOS, HDD

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Weight	1.98 kg
Width	361 mm
Depth	244 mm
Height	23.8 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
Warranty card	Yes
