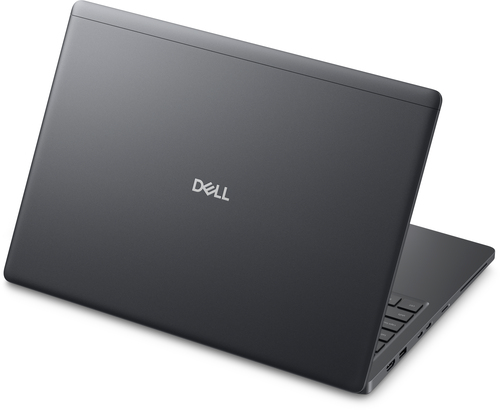

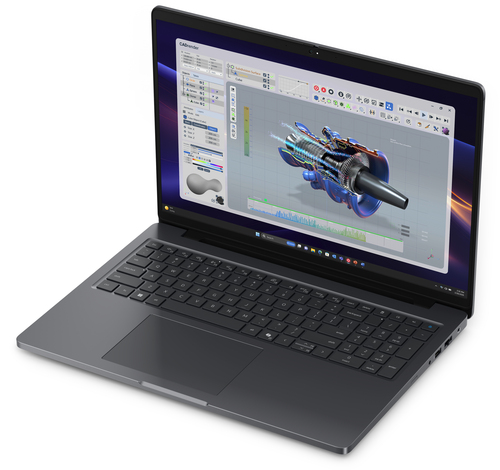

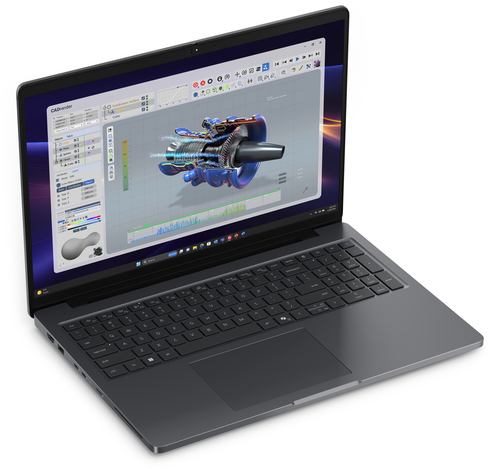

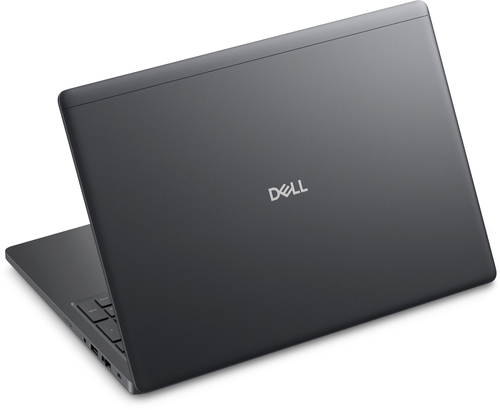

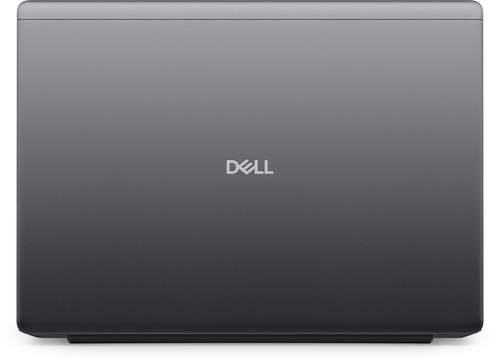

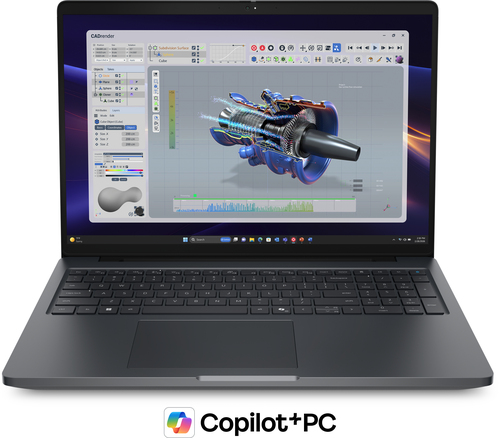

Pro Precision 5 16 PW516261 Copilot+ PC Intel Core Ultra 9 386H Mobile workstation

40.6 cm (16") Full HD+ 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX PRO 2000

Model PW516261Part no. 3400022902037.1_4EAN 5397321036845

143 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorIntel Core Ultra 9
Memory32 GB
Storage1 TB
GraphicsNVIDIA RTX PRO 2000 Blackwell

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: Intel Core Ultra 9
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA RTX PRO 2000 Blackwell

Brand: Dell
Category: Laptop
Model: PW516261
Part numbers: 3400022902037.1_4, RW96R, HJVPD, D4KHD, 5RW08, CTO931R2_PW516261_AU +34 more
EAN / UPC: 5397321036845, 5397321036746, 5397184977781, 5397321036807 +32 more
Also known as: DELL Pro Precision 5 16 PW516261 Copilot+ PC Intel Core Ultra 9 386H Mobile workstation 40.6 cm (16") Full HD+ 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX PRO 2000

Specifications

143 specifications in 20 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	Full HD+
Panel type	WVA
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	400 cd/m²
Colour gamut	45%
RGB colour space	NTSC
Display response rise/fall	35 ms
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor generation	Intel® Core™ Ultra (Series 3)
Processor model	386H
Processor cores	16
Processor threads	16
Processor boost frequency	4.9 GHz
Performance cores	4
Efficient cores	8
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.9 GHz
Efficient-core Max Turbo Frequency	3.7 GHz
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.6 GHz
Low Power Efficient-core Base Frequency	1600 MHz
Processor cache	18 MB
Processor cache type	Smart Cache
Processor socket	FCBGA2540
Maximum turbo power	80 W
Processor base power	25 W

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	Yes
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	50 TOPs
GPU performance up to	40 TOPs

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	LPCAMM2
Memory layout (slots x size)	1 x 32 GB
Maximum internal memory	64 GB
Memory channels	Dual-channel
Memory data transfer rate	8533 MT/s

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2230 (22 x 30 mm)
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX PRO 2000 Blackwell
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Ray tracing acceleration	Yes

Audio

Specification	Value
Audio chip	Realtek ALC3333
Number of built-in speakers	2
Speaker power	5 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	8.29 MP
Front camera HD type	Quad HD
Front camera resolution	2560 x 1440 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 7 (802.11be), 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Wi-Fi data rate (max)	5760 Mbit/s
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 7 BE211
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes

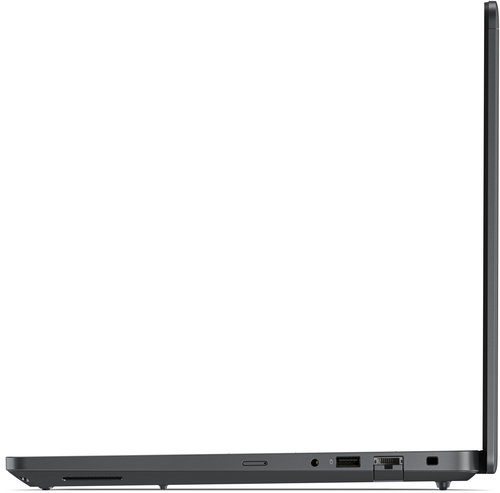

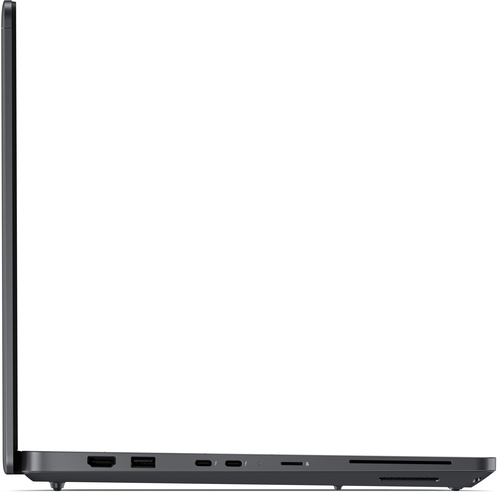

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
PowerShare	Yes

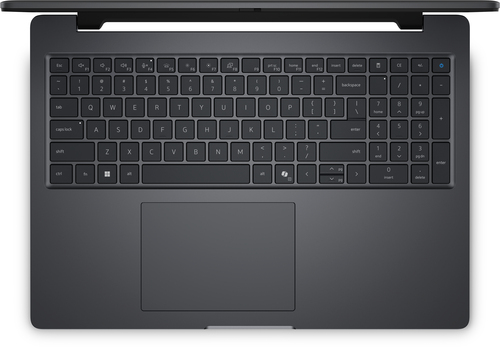

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Copilot key	Yes

Software

Specification	Value
Operating system installed	Windows 11 Pro

Brand-specific features

Specification	Value
Brand specific technologies	HDR Camera, Control Vault 3+, Presence Detection, Express Charge Boost capable

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	6
Battery capacity	96 Wh
Battery voltage	11.7 V
Battery weight	220 g

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Type-C required charging power (max)	59 W
USB Type-C required charging power (min)	27 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Wedge
Dell ControlVault	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	2.16 kg
Width	358 mm
Depth	256 mm
Height (front)	1.38 cm
Height (rear)	1.84 cm

Packaging content

Specification	Value
AC adapter included	No
