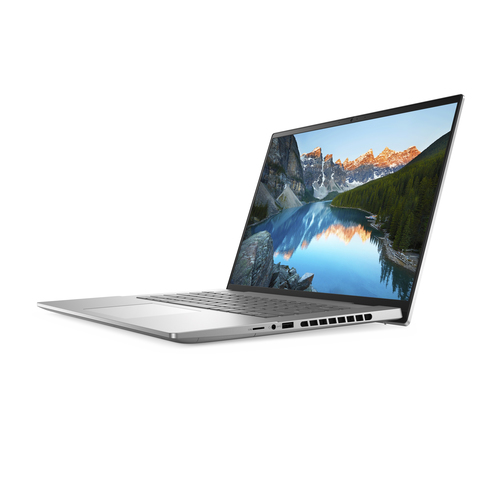

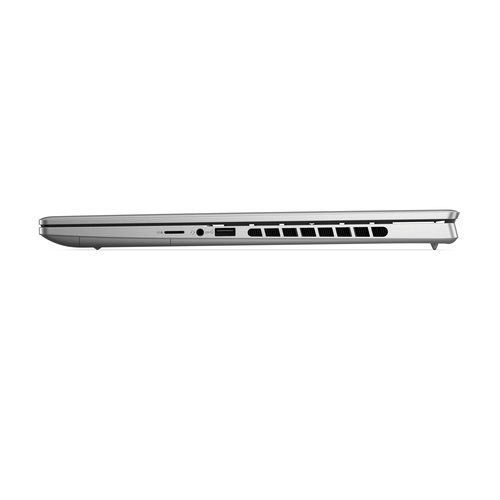

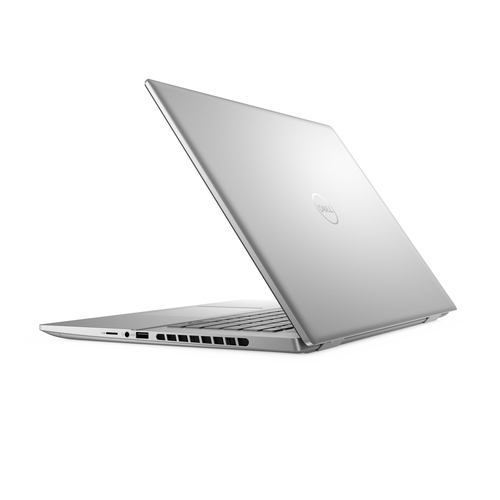

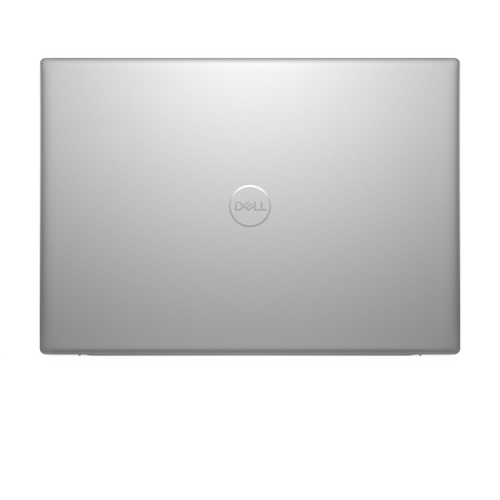

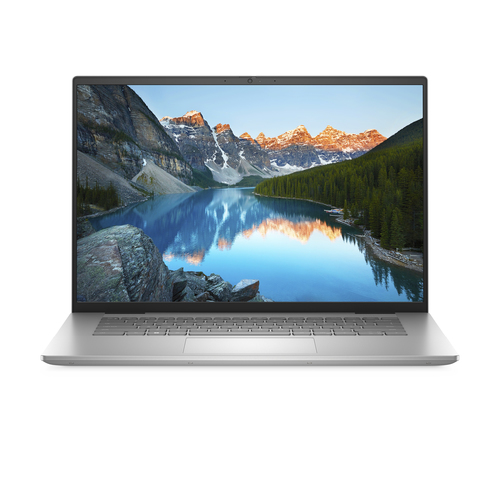

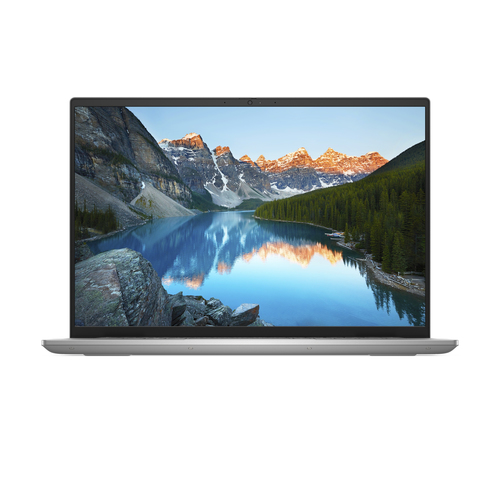

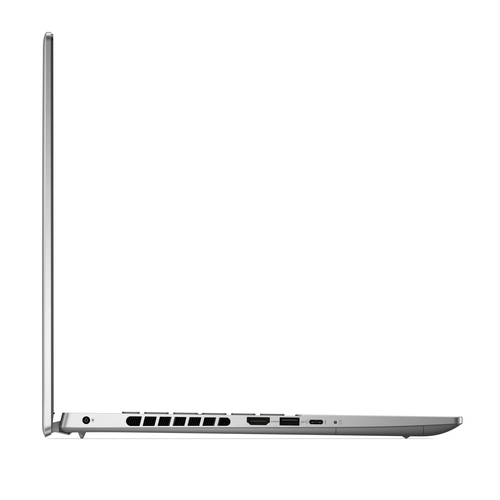

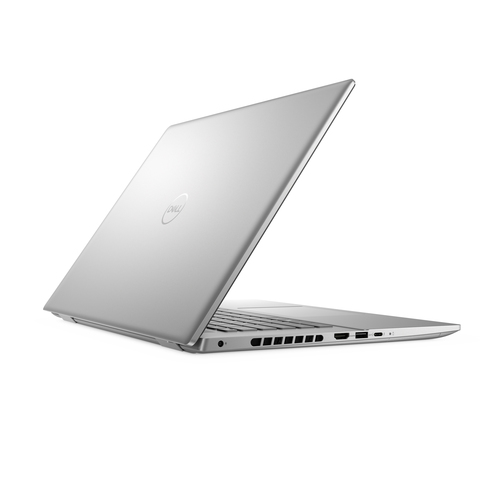

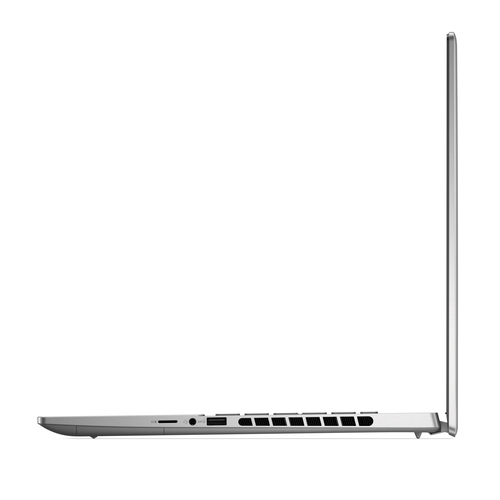

Dell Plus 7630
Dell

Plus 7630

Model Plus 7630Part no. QUAKEN16_RPLH_2401_4004_SPP_HOMEAN 5397184882818

132 specifications Checked today
  • Display40.6 cm (16")
  • Resolution2560 x 1600 pixels
  • ProcessorIntel® Core™ i7
  • Memory16 GB
  • Storage1 TB
  • GraphicsNVIDIA GeForce RTX 4060
See all specifications

Overview

Display
40.6 cm (16")
Resolution
2560 x 1600 pixels
Processor
Intel® Core™ i7
Memory
16 GB
Storage
1 TB
Graphics
NVIDIA GeForce RTX 4060
Brand
Dell
Category
Laptop
Model
Plus 7630
Part numbers
QUAKEN16_RPLH_2401_4004_SPP_HOM, QUAKEN16_RPLH_2405_8004D_HOM, QUAKEN16_RPLH_2405_8005D_HOM, QUAKEN16_RPLH_2405_8006D_HOM, QUAKEN16_RPLH_2405_8007D_HOM, QUAKEN16_RPLH_2405_8009D_HOM +1 more
EAN / UPC
5397184882818
Also known as
DELL Inspiron Plus 7630 Intel® Core™ i7 i7-13700H Laptop 40.6 cm (16") 2.5K 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6E (802.11ax) Windows 11 Hom

Specifications

132 specifications in 19 groups

Design

Product typeLaptop
Product colourSilver
Form factorClamshell

Display

Display diagonal40.6 cm (16")
Display resolution2560 x 1600 pixels
TouchscreenNo
HD type2.5K
Panel typeWVA
LED backlightYes
Native aspect ratio16:10
Anti-glare screenYes
Display brightness300 cd/m²
Pixel density189 ppi
Pixel pitch0.134 x 0.134 mm
Colour gamut100%
RGB colour spacesRGB
Display response rise/fall35 ms
Maximum refresh rate120 Hz
Contrast ratio (typical)1200:1

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation13th gen Intel® Core™ i7
Processor modeli7-13700H
Processor cores14
Processor boost frequency5 GHz
Performance cores6
Efficient cores8
Performance-core Max Turbo Frequency5 GHz
Efficient-core Max Turbo Frequency3.7 GHz
Processor cache24 MB
Processor cache typeSmart Cache
Configurable TDP-down35 W
Maximum turbo power115 W
Processor base power45 W

Memory

Internal memory16 GB
Internal memory typeDDR5-SDRAM
Memory clock speed4800 MHz
Memory form factorSO-DIMM
Memory layout (slots x size)2 x 8 GB
Memory slots2x SO-DIMM
Maximum internal memory64 GB

Storage

Total storage capacity1 TB
Storage mediaSSD
Total SSDs capacity1 TB
Number of SSDs installed1
SSD capacity1 TB
NVMeYes
SSD interfacePCI Express
SSD form factorM.2
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

On-board graphics cardYes
Discrete graphics cardYes
Discrete GPU manufacturerNVIDIA
Discrete graphics card modelNVIDIA GeForce RTX 4060
Discrete graphics card memory8 GB
Discrete graphics memory typeGDDR6
On-board graphics card familyIntel Iris Xe Graphics
On-board graphics card modelIntel Iris Xe Graphics

Audio

Audio systemMaxxAudio Pro
Number of built-in speakers4
Speakers manufacturerWaves
Built-in microphoneYes
Number of microphones2

Camera

Front cameraYes
Front camera resolution (numeric)2.07 MP
Front camera HD typeFull HD
Front camera resolution1920 x 1080 pixels
Video capturing speed30 fps
Privacy cameraYes
Privacy typePrivacy shutter

Network

Mobile network connectionNo
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
Antenna type2x2
Wi-Fi data rate (max)2400 Mbit/s
WLAN controller manufacturerIntel
WLAN controller modelIntel Wi-Fi 6E AX211
Ethernet LANNo
BluetoothYes

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
HDMI ports quantity1
HDMI version2.0
Thunderbolt 4 ports quantity1
Intel® Thunderbolt 4Yes
Combo headphone/mic portYes
Power adapter barrel connector4.5 mm
USB Type-C DisplayPort Alternate ModeYes

Keyboard

Pointing deviceTouchpad
Keyboard backlitYes
Numeric keypadNo
Keyboard languageHebrew

Software

Operating system installedWindows 11 Home
Operating system architecture64-bit
Operating system languageMultilingual
Trial softwareMcAfee 12 Months Business Security,Microsoft Office Trial
Bundled softwareWindows System Driver

Processor special features

CPU configuration (max)1

Battery

Battery technologyLithium Polymer (LiPo)
Number of battery cells6
Battery capacity86 Wh
Battery voltage11.4 V
Battery recharge time4 h
Battery weight340 g

Power

AC adapter power130 W
AC adapter frequency50/60 Hz
AC adapter input voltage100 - 240 V
AC adapter output current6.67 A
AC adapter output voltage19.5 V
DC-in jackYes
USB Power Delivery (USB PD)Yes

Security

Fingerprint readerYes
Trusted Platform Module (TPM)Yes

Operational conditions

Operating temperature (T-T)0 - 35 °C
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3048 m
Non-operating altitude0 - 10668 m
Operating shock110 G
Non-operating shock160 G
Operating vibration0.66 G
Non-operating vibration1.3 G

Weight & dimensions

Weight2.22 kg
Width356.8 mm
Depth251.7 mm
Height (front)1.71 cm
Height (rear)1.79 cm

Packaging content

Cables includedAC
