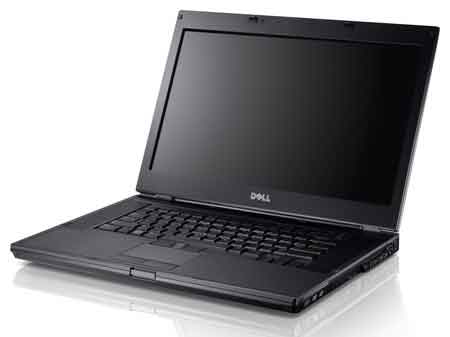

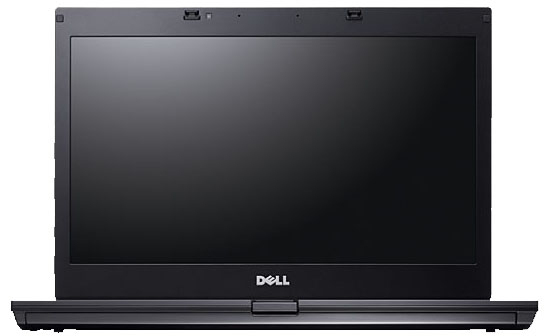

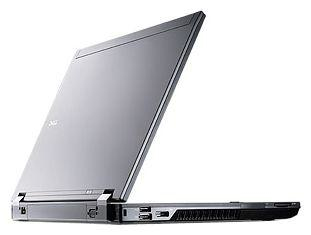

Dell Latitude E6510

Model Latitude E6510Part no. LATITUDE_E6510_002

136 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
GraphicsNVIDIA® NVS™ 3100M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Graphics: NVIDIA® NVS™ 3100M

Brand: Dell
Category: Laptop
Model: Latitude E6510
Part numbers: LATITUDE_E6510_002, E6510-K333NL, L651071, E6510-E333BE, E6510-K311BE, E6510-K333BE +4 more
Also known as: DELL Latitude E6510 Intel® Core™ i5 i5-580M 39.6 cm (15.6") 4 GB DDR3-SDRAM 500 GB NVIDIA® NVS™ 3100M Windows 7 Professional Black

Specifications

136 specifications in 19 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-580M
Processor cores	2
Processor threads	4
Processor boost frequency	3.33 GHz
Processor frequency	2.66 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1288
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-500 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	K0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	20
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Memory layout (slots x size)	2 x 2 GB
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
Optical drive type	DVD-RW
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® NVS™ 3100M
Graphics card family	NVIDIA
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	766 MHz

Audio

Specification	Value
Number of built-in speakers	2

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	2.0+EDR
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® QM57 Express

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows 7 Professional

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	49652
Processor code	SLC29
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Trusted Platform Module (TPM)	Yes
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.51 kg
Width	374.3 mm
Depth	253.4 mm
Height (front)	2.71 cm
Height (rear)	3.35 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
