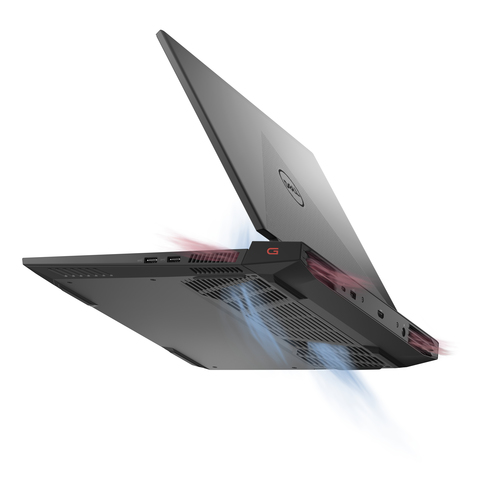

Dell G15 5520

G15 5520

Model G15 5520Part no. 5520-2006EAN 5397184672006

150 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage512 GB
GraphicsNVIDIA GeForce RTX 3050 Ti

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA GeForce RTX 3050 Ti

Brand: Dell
Category: Laptop
Model: G15 5520
Part numbers: 5520-2006, 5520-1047, 5520-1054, 5520-1061, 5520-1078, 5520-2013
EAN / UPC: 5397184672006, 5397184671047, 5397184671054, 5397184671061 +2 more
Also known as: DELL G15 5520 Intel® Core™ i5 i5-12500H Laptop 39.6 cm (15.6") Full HD 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 3050 Ti Wi-Fi 6 (802.11ax) Windows 11 Home

Specifications

150 specifications in 23 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Form factor	Clamshell
Market positioning	Gaming
Introduction year	2022

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	250 cd/m²
Pixel density	141 ppi
Pixel pitch	0.17925 x 0.17925 mm
Colour gamut	45%
RGB colour space	NTSC
Display response rise/fall	35 ms
Maximum refresh rate	120 Hz
Contrast ratio (typical)	800:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	12th gen Intel® Core™ i5
Processor model	i5-12500H
Processor cores	12
Processor cache	18 MB
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	Intel
Discrete graphics card model	NVIDIA GeForce RTX 3050 Ti
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3254
Audio system	Nahimic 3D
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	McAfee® 30 day Trial;Microsoft® Office 30 Day Trial - Excludes Office License

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	56 Wh
Battery voltage	13.2 V
Battery recharge time	4 h
Battery weight	250 g

Power

Specification	Value
AC adapter power	180 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	6.23 A
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m

Weight & dimensions

Specification	Value
Weight	2.81 kg
Width	357.3 mm
Depth	272.1 mm
Height (front)	2.13 cm
Height (rear)	2.53 cm

Packaging data

Specification	Value
Package width	79 mm
Package depth	515 mm
Package height	345 mm
Package weight	4.15 kg
Package material	Corrugated cardboard, Paper molded pulp, Low-density polyethylene (LDPE)

Recycling data

Specification	Value
Paper molded pulp content per package	200 g
Bamboo molded pulp content per package	0 g
Wheat straw molded pulp content per package	0 g
Grey board content per package	0 g
Corrugated cardboard content per package	424 g
Corrugated cardboard content per shipping (inner) case	380 g
Corrugated cardboard content per box for accessories	44 g
Corrugated cardboard content per sleeve for accessories	0 g
Polyethylene terephthalate (PET) content per package	0 g
High-density polyethylene (HDPE) content per package	0 g
Low-density polyethylene (LDPE) content per package	12 g
Polypropylene (PP) content per package	0 g
Polystyrene (PS) content per package	0 g
Other materials content per package	6 g

Packaging content

Specification	Value
Cables included	AC

Logistics data

Specification	Value
Maximum number of stacking cartons	6 pc(s)
Products per pallet layer	27 pc(s)
Layers per pallet	3 pc(s)
Products per pallet	81 pc(s)
Pallet gross width	100 cm
Pallet gross length	120 cm
Pallet gross weight	343.8 kg
Pallet volume weight	235 kg
Products per intermodal container (20ft)	1350 pc(s)
Products per intermodal container (40ft, HC)	3402 pc(s)

Other features

Specification	Value
EPEAT rating	97.2%
