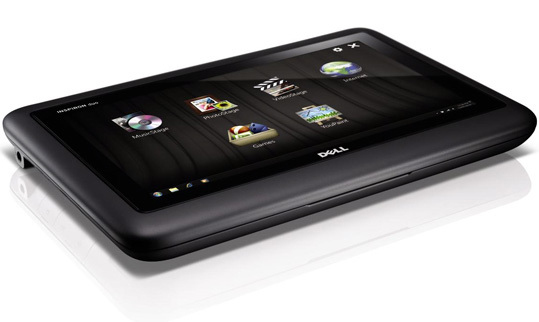

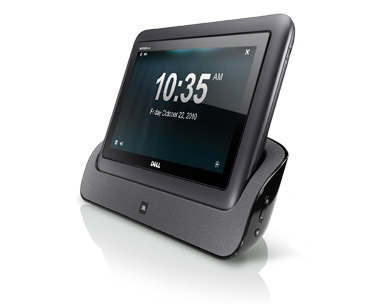

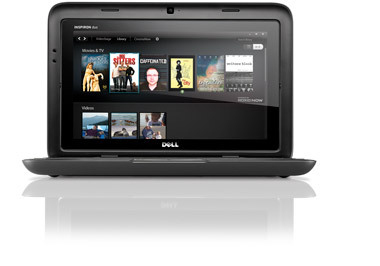

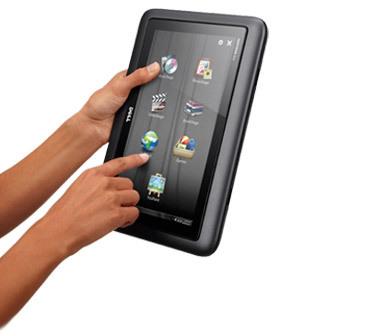

Dell Inspiron Mini Duo Intel Atom® N570 Hybrid (2-in-1)

25.6 cm (10.1") Touchscreen HD 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Premium Black, Grey

Model DuoPart no. 1090-0297EAN 5397063090297

101 specifications Checked 2 days ago

Display25.6 cm (10.1")
Resolution1366 x 768 pixels
ProcessorIntel Atom®
Memory2 GB
Storage320 GB
GraphicsNot available

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1366 x 768 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 320 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: Duo
Part number: 1090-0297
EAN / UPC: 5397063090297
Also known as: DELL Inspiron Mini Duo Intel Atom® N570 Hybrid (2-in-1) 25.6 cm (10.1") Touchscreen HD 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Premium Black, Grey

Specifications

101 specifications in 20 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black, Grey
Form factor	Convertible (Ferris Wheel)

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	HD
Touch technology	Multi-touch
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	N570
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
System bus rate	2.5 GT/s
Processor cache	1 MB
Processor cache type	L2
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Pineview
Thermal Design Power (TDP)	8.5 W
Number of Processing Die Transistors	17 M
Processing Die size	87 mm²

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM

Storage

Specification	Value
Total storage capacity	320 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® GMA 3150
On-board graphics card base frequency	200 MHz

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	1 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
Thunderbolt ports quantity	0
Thunderbolt 3 ports quantity	0
Headphone outputs	1
Microphone in	Yes

Performance

Specification	Value
Motherboard chipset	Intel® NM10 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	32-bit

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	55637
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	29 Wh

Power

Specification	Value
AC adapter power	30 W
AC adapter frequency	50 - 60 Hz
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Password protection	Yes
Password protection type	BIOS, User

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.54 kg
Width	285 mm
Depth	194.5 mm
Height (front)	2.62 cm
Height (rear)	2.87 cm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
Quick start guide	Yes
