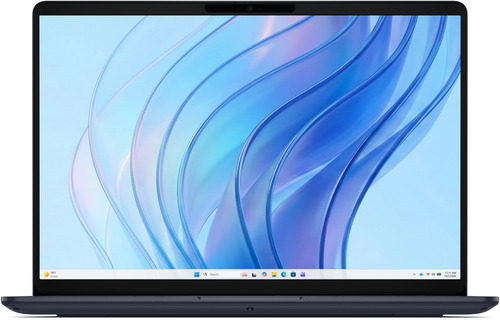

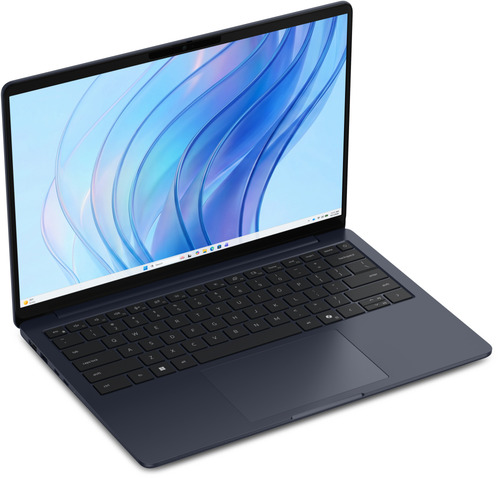

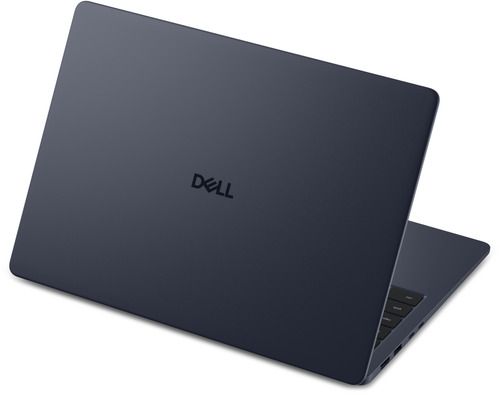

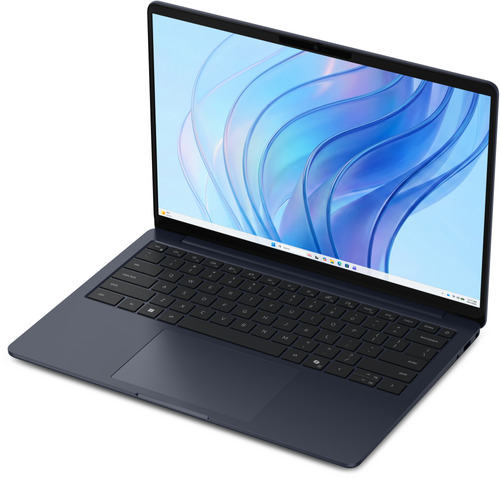

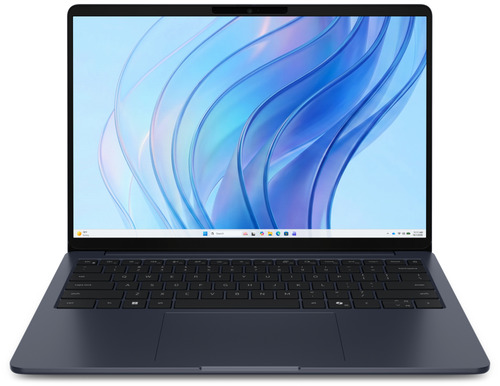

Dell D14261 Intel Core 5 320 Laptop

D14261 Intel Core 5 320 Laptop

35.6 cm (14") Full HD+ 8 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Blue QWERTY US English

Model D14261Part no. USED14261HCTO01

126 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorIntel Core 5
Memory8 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: Intel Core 5
Memory: 8 GB
Storage: 512 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: D14261
Part numbers: USED14261HCTO01, USED14261HCTO02, USED14261HCTO03
Also known as: DELL D14261 Intel Core 5 320 Laptop 35.6 cm (14") Full HD+ 8 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Blue QWERTY US English

Specifications

126 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Blue
Colour name	Celestial Blue
Form factor	Clamshell
Housing material	Plastic

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	Full HD+
Panel type	IPS
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	400 cd/m²
Pixel density	161 ppi
Colour gamut	45%
RGB colour space	NTSC
Display response rise/fall	35 ms
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core 5
Processor generation	Intel Core (Series 3)
Processor model	320
Processor cores	6
Processor threads	6
Processor boost frequency	4.6 GHz
Performance cores	2
Efficient cores	0
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.6 GHz
Low Power Efficient-core Max Turbo Frequency	3.4 GHz
Performance-core base frequency	1.5 GHz
Low Power Efficient-core Base Frequency	1400 MHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	FCBGA1516
Maximum turbo power	35 W
Processor base power	15 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	16 TOPs
GPU performance up to	20 TOPs

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	32 GB
Memory channels	Single-channel
Memory data transfer rate	5600 MT/s

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2230 (22 x 30 mm)
SSD form factor	M.2

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3356B
Number of built-in speakers	2
Speaker power	4 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
Charging port type	USB Type-C
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Keyboard layout	QWERTY
Keyboard language	US English

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	McAfee+ Premium 30-day trial, Activate Your Microsoft 365 For A 30 Day Trial

Battery

Specification	Value
Number of battery cells	3
Battery capacity	41 Wh
Battery voltage	11.45 V
Battery weight	190 g

Power

Specification	Value
AC adapter power	45 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Wedge

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 65%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	40 G
Non-operating shock	105 G
Operating vibration	0.26 G
Non-operating vibration	1.37 G

Weight & dimensions

Specification	Value
Weight	1.4 kg
Width	313.3 mm
Depth	222 mm
Height	17.7 mm
Height (front)	1.14 cm
Height (rear)	1.43 cm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
