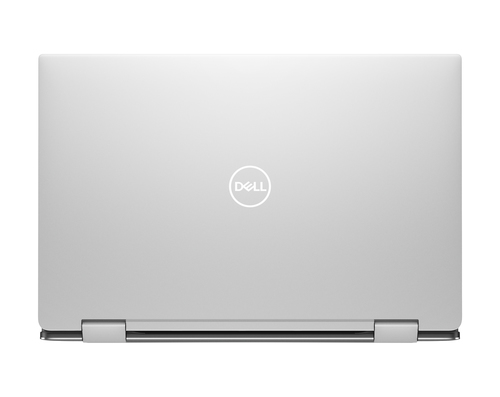

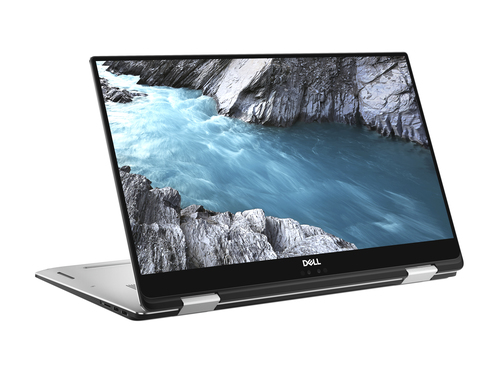

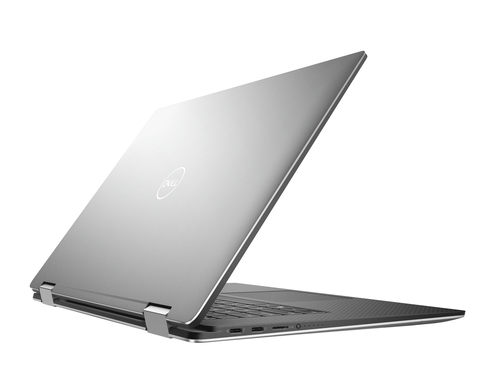

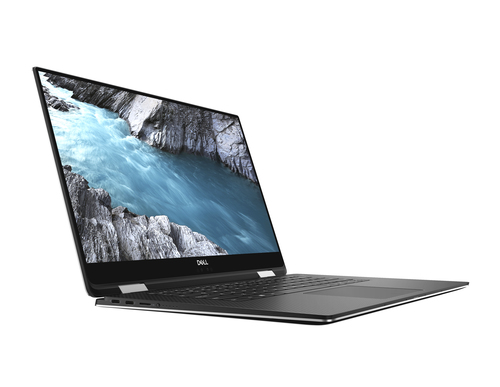

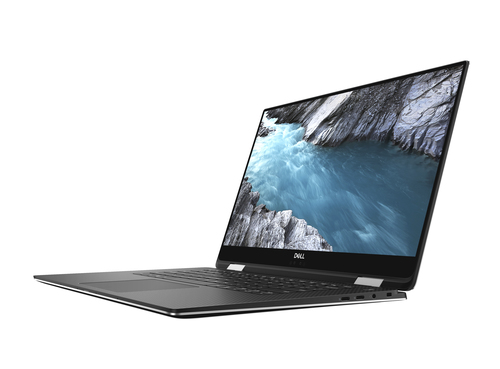

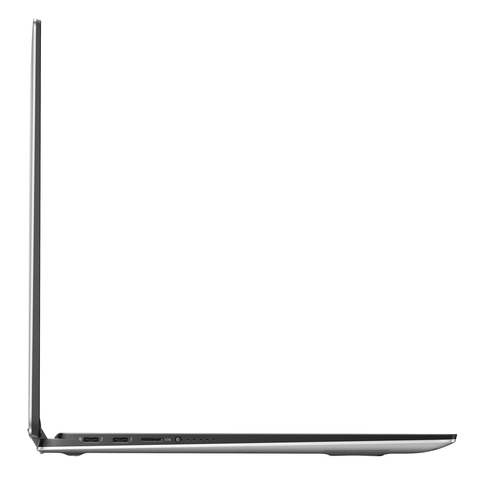

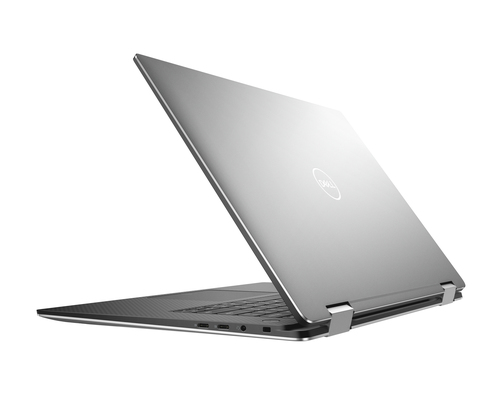

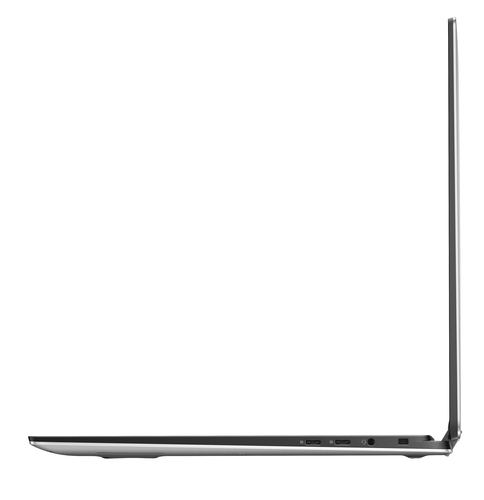

Dell XPS 15 9575 Intel® Core™ i7 i7-8705G Hybrid (2-in-1)

39.6 cm (15.6") Touchscreen 4K Ultra HD 16 GB DDR4-SDRAM 512 GB SSD AMD Radeon RX Vega M GL Windows 10

Model 9575Part no. P38F8EAN 5397184087701

169 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution3840 x 2160 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsAMD Radeon RX Vega M GL

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 3840 x 2160 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: AMD Radeon RX Vega M GL

Brand: Dell
Category: Laptop
Model: 9575
Part numbers: P38F8, 571RJ, 8KH3C, JR62D, CN95701, CN95702 +34 more
EAN / UPC: 5397184087701, 5397184087718, 5397184087749, 5397184163795 +33 more
Also known as: DELL XPS 15 9575 Intel® Core™ i7 i7-8705G Hybrid (2-in-1) 39.6 cm (15.6") Touchscreen 4K Ultra HD 16 GB DDR4-SDRAM 512 GB SSD AMD Radeon RX Vega M GL Windows 10

Specifications

169 specifications in 21 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Silver
Colour name	Silver
Form factor	Convertible (Folder)
Housing material	Aluminium, Carbon fibre

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	3840 x 2160 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	4K Ultra HD
Touch technology	Multi-touch
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Display bezel technology	InfinityEdge
Pixel pitch	0.08964 x 0.08964 mm

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8705G
Processor cores	4
Processor threads	8
Processor boost frequency	4.1 GHz
Processor frequency	3.1 GHz
System bus rate	8 GT/s
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	BGA 2270
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake G
Bus type	DMI
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
Maximum number of PCI Express lanes	8
PCI Express configurations	2x4
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory form factor	On-board
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon RX Vega M GL
Discrete graphics card memory	4 GB
Discrete graphics memory type	HBM2
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
Number of discrete graphics cards installed	1

Audio

Specification	Value
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speakers manufacturer	Waves
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Front camera signal format	720p
Video capturing speed	30 fps

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Antenna type	2x2
WLAN controller model	Killer Wireless-AC 1435
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	0
Thunderbolt 3 ports quantity	2
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Number of Thunderbolt 3 ports with PowerShare support	2

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Windows keys	Yes
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Drivers included	Yes
Trial software	Microsoft Office
Bundled software	McAfee LiveSafe

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	130411
Processor package size	31 x 58.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	75 Wh
Battery voltage	11.4 V
Battery recharge time	4 h
Battery charge indicator	Yes

Power

Specification	Value
AC adapter power	130 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	6.5 A
AC adapter output voltage	20 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Noble
Fingerprint reader	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2 kg
Width	354 mm
Depth	235 mm
Height	16 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes

Other features

Specification	Value
Machined aluminium design	Yes
USB Power Delivery revision	2.0
On/off button	Yes
