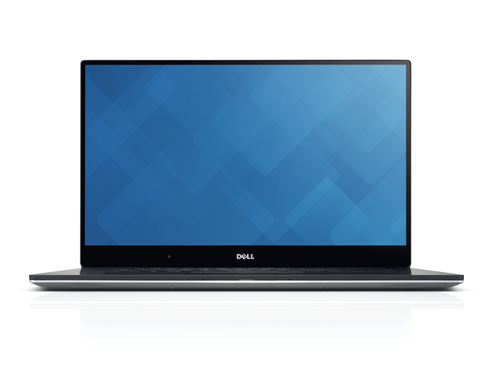

Dell XPS 15 9560 Intel® Core™ i3 i3-7100H Laptop

39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 532 GB HDD+SSD Windows 10 Home Black, Silver

Model 9560Part no. W51711603MYW10EAN 5397064018450

158 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i3
Memory8 GB
Storage532 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i3
Memory: 8 GB
Storage: 532 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 9560
Part numbers: W51711603MYW10, 3HWYH, GNTM7, MG2PV, CAX15W107S1637, CAX15W10P7S1608 +34 more
EAN / UPC: 5397064018450, 5397064018443, 5397063996865, 5397063996872 +33 more
Also known as: DELL XPS 15 9560 Intel® Core™ i3 i3-7100H Laptop 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 532 GB HDD+SSD Windows 10 Home Black, Silver

Specifications

158 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Silver
Form factor	Clamshell
Housing material	Aluminium, Carbon fibre
Market positioning	Business

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Dual-screen	No

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	7th gen Intel® Core™ i3
Processor model	i3-7100H
Processor cores	2
Processor threads	4
Processor frequency	3 GHz
System bus rate	8 GT/s
Processor cache	3 MB
Processor lithography	14 nm
Processor codename	Kaby Lake
Bus type	DMI3
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB
Maximum internal memory (64-bit)	32 GB

Storage

Specification	Value
Total storage capacity	532 GB
Storage media	HDD+SSD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA III
HDD speed	7200 RPM
HDD size	2.5"
Number of SSDs installed	1
SSD capacity	32 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	950 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x591B

Audio

Specification	Value
Audio chip	Realtek ALC3266
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speakers manufacturer	Waves
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt™ 3 Technology	Yes
Combo headphone/mic port	Yes
Docking connector	No
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	2

Performance

Specification	Value
Motherboard chipset	Intel® HM175

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	97126
Processor package size	42 x 28 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery capacity	56 Wh

Power

Specification	Value
AC adapter power	130 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Non-operating altitude	-15.2 - 10668 m

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.8 kg
Width	357 mm
Depth	235 mm
Height (front)	1.1 cm
Height (rear)	1.7 cm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
Quick start guide	Yes
Warranty card	Yes
