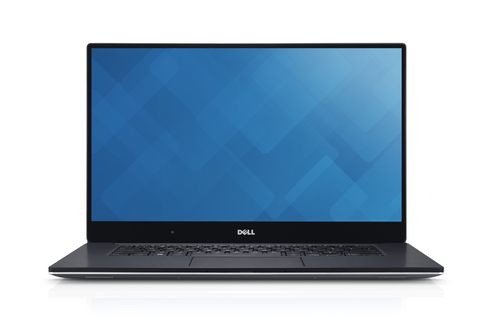

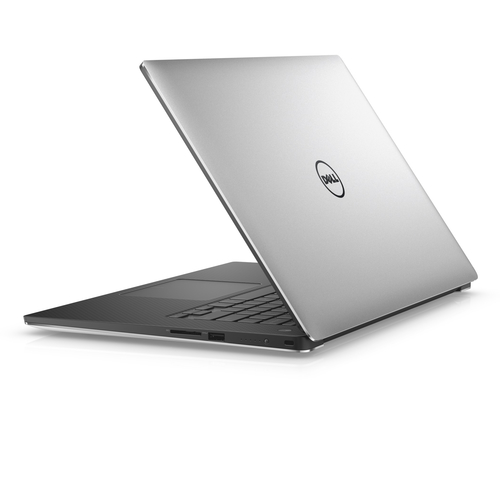

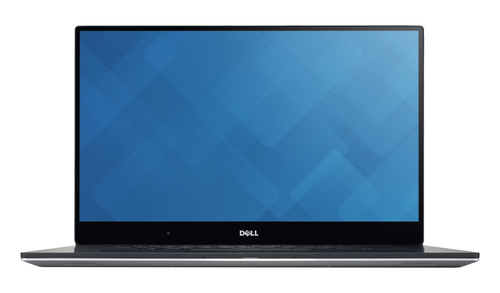

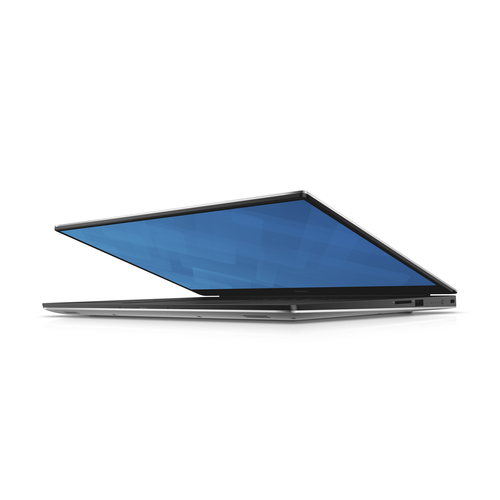

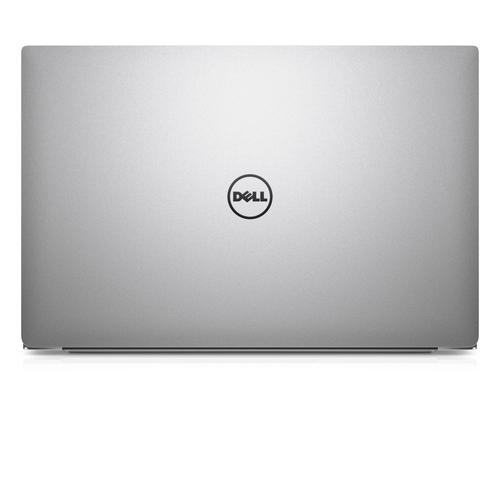

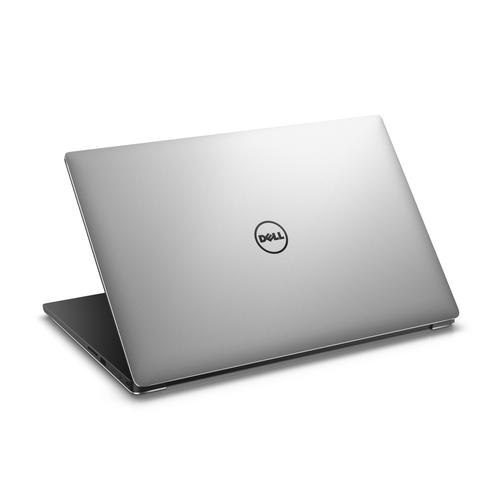

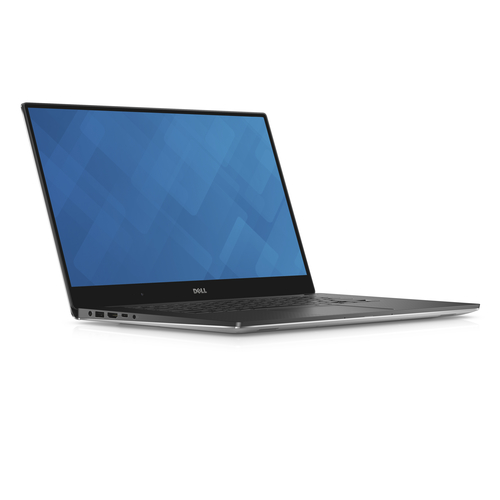

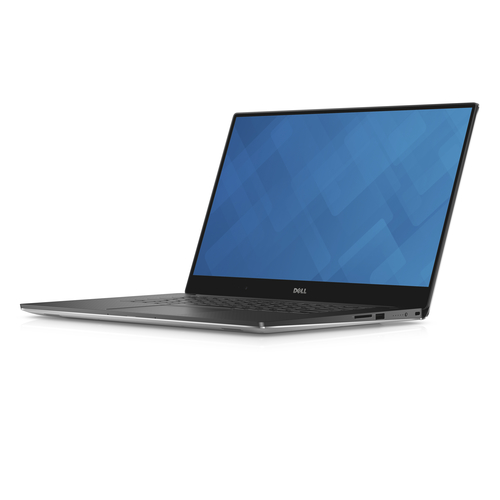

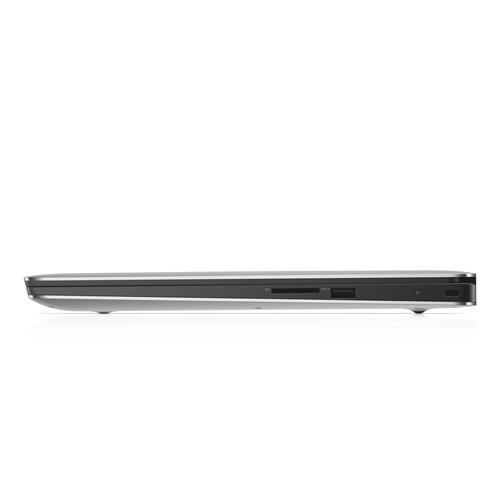

XPS 15 9550 Intel® Core™ i7 i7-6700HQ Laptop

39.6 cm (15.6") Touchscreen 4K Ultra HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 960M Windows 10 Home

Model 9550Part no. Y510998AUEAN 5397063874477

178 specifications Checked today

Display39.6 cm (15.6")
Resolution3840 x 2160 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNVIDIA® GeForce® GTX 960M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 3840 x 2160 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA® GeForce® GTX 960M

Brand: Dell
Category: Laptop
Model: 9550
Part numbers: Y510998AU, XPS9550-4444SLV, CAX15W10PH1624, CAX15W10PH1625, CAX15W10PH1627, CAX15W10PH1630 +34 more
EAN / UPC: 5397063874477, 884116204343, 5397063759293, 5397063524952 +45 more
Also known as: DELL XPS 15 9550 Intel® Core™ i7 i7-6700HQ Laptop 39.6 cm (15.6") Touchscreen 4K Ultra HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 960M Windows 10 Home

Specifications

178 specifications in 22 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Silver
Form factor	Clamshell
Housing material	Aluminium, Carbon fibre

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	3840 x 2160 pixels
Touchscreen	Yes
HD type	4K Ultra HD
LED backlight	Yes
Native aspect ratio	16:9
Dual-screen	No

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	6th gen Intel® Core™ i7
Processor model	i7-6700HQ
Processor cores	4
Processor threads	8
Processor boost frequency	3.5 GHz
Processor frequency	2.6 GHz
System bus rate	8 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	BGA 1440
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-6700 Mobile series
Processor codename	Skylake
Bus type	DMI3
Stepping	R0
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2133 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB
Maximum internal memory (64-bit)	32 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDIO, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 960M
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.7 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x191B
Number of discrete graphics cards installed	1

Audio

Specification	Value
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speakers manufacturer	Waves
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt 3 ports quantity	1
Thunderbolt™ 3 Technology	Yes
Combo headphone/mic port	Yes
Docking connector	No
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	2

Performance

Specification	Value
Motherboard chipset	Intel® HM170

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	88967
Processor code	SR2FQ
Processor package size	42 x 28 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	84 Wh
Battery voltage	11.4 V
Battery recharge time	4 h

Power

Specification	Value
AC adapter power	130 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	6.67 A
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G
