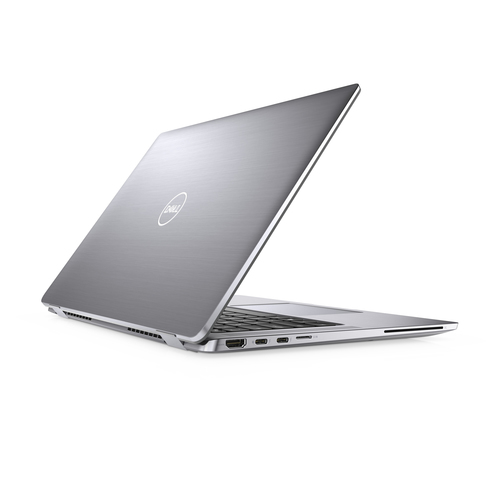

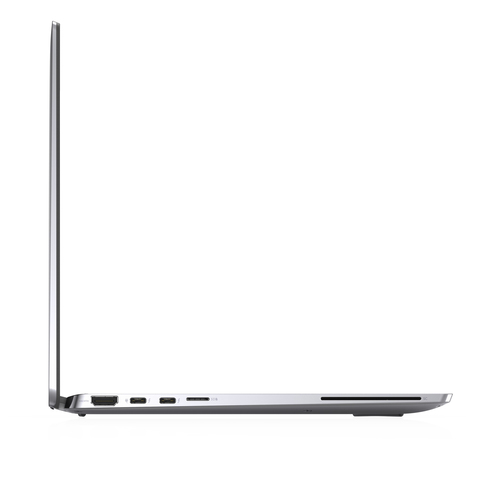

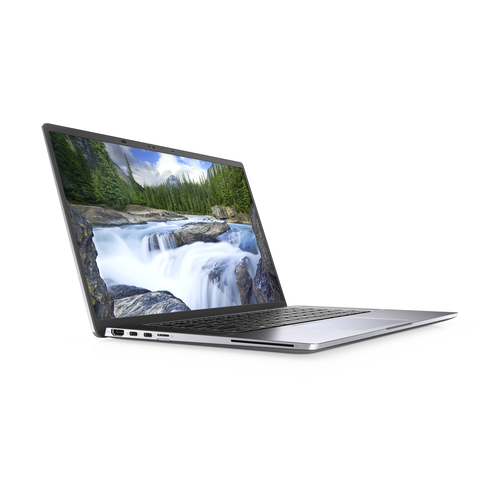

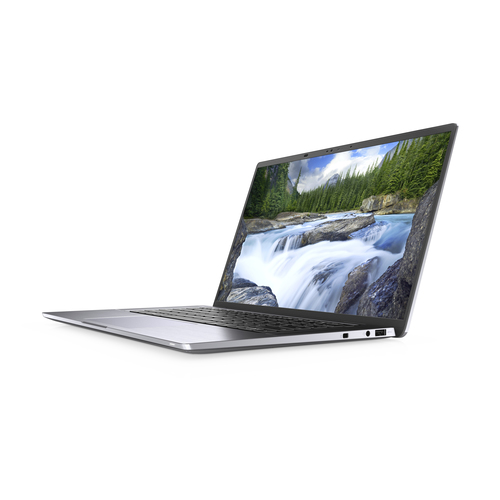

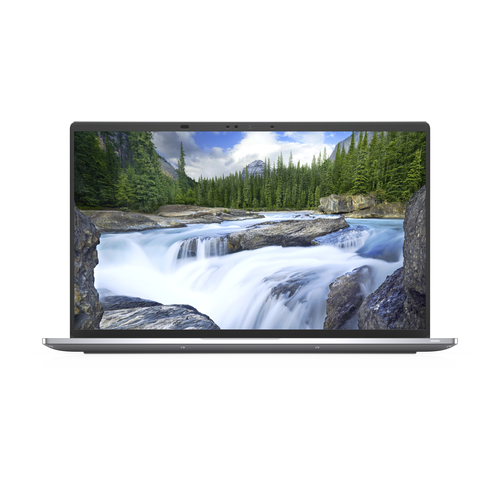

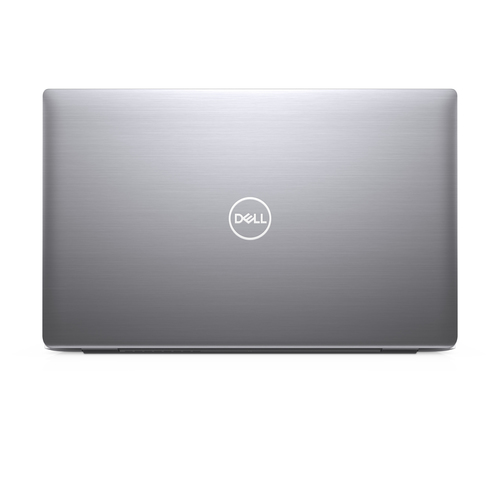

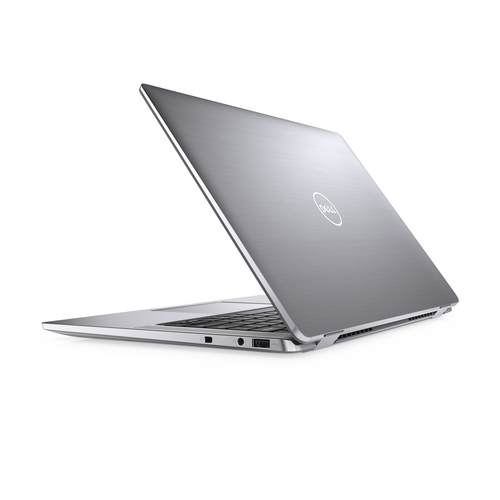

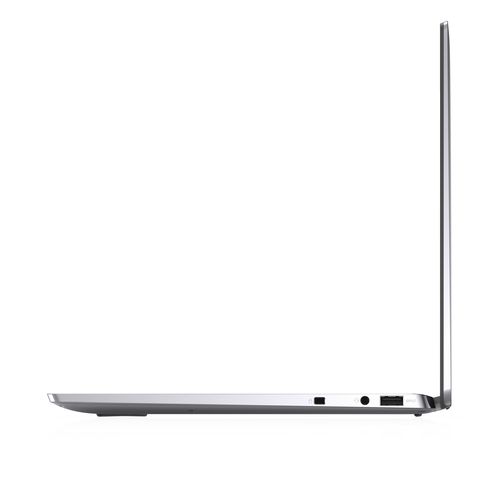

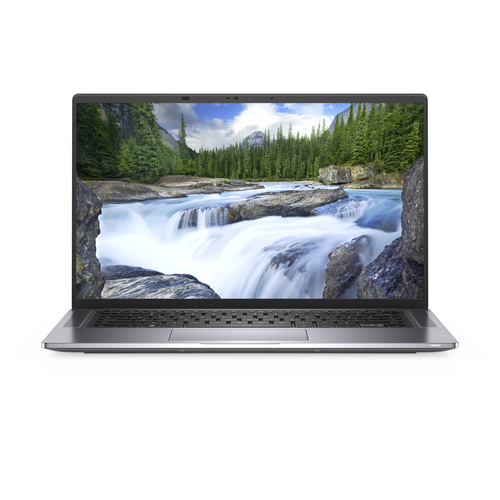

Dell Latitude 9520 Intel® Core™ i5 i5-1145G7 Laptop

Latitude 9520 Intel® Core™ i5 i5-1145G7 Laptop

38.1 cm (15") Full HD 16 GB LPDDR4x-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro Grey US English

Model 9520Part no. 04D10EAN 5397184557778

127 specifications Checked today

Display38.1 cm (15")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 38.1 cm (15")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 256 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 9520
Part numbers: 04D10, 4Y2DG, 67YX7, KXWN6, 5FYTX, WNG7Y +34 more
EAN / UPC: 5397184557778, 884116411741, 884116425496, 884116425502 +56 more
Also known as: DELL Latitude 9520 Intel® Core™ i5 i5-1145G7 Laptop 38.1 cm (15") Full HD 16 GB LPDDR4x-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro Grey US English

Specifications

127 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Form factor	Clamshell
Market positioning	Business
Intel® vPro™ Platform Eligibility	Yes

Display

Specification	Value
Display diagonal	38.1 cm (15")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	400 cd/m²
Pixel density	147 ppi
Colour gamut	100%
Display diagonal (metric)	38 cm
RGB colour space	sRGB
Display response rise/fall	35 ms
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1200:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	11th gen Intel® Core™ i5
Processor model	i5-1145G7
Processor cores	4
Processor threads	8
Processor boost frequency	4.4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	BGA 1449

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR4x-SDRAM
Memory clock speed	4267 MHz
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express
SSD form factor	M.2
SSD performance class	35
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio chip	Realtek ALC711-CG
Audio system	MaxxAudio
Number of built-in speakers	2
Speaker power	2.5 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.9 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6 AX201
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	1
HDMI version	2.0
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
PowerShare	Yes
Number of USB ports with PowerShare support	1

Performance

Specification	Value
Ambient light sensor	Yes

Keyboard

Specification	Value
Pointing device	SinglePoint
Keyboard backlit	Yes
Numeric keypad	No
Keyboard language	US English

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	English, Spanish, French

Brand-specific features

Specification	Value
Brand specific technologies	Express Charge Boost capable, Control Vault 3+

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	49 Wh
Battery voltage	7.6 V
Battery recharge time	4 h
Battery weight	240 g

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Wedge
Fingerprint reader	Yes
Dell ControlVault	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Gold

Weight & dimensions

Specification	Value
Weight	1.4 kg
Width	340.2 mm
Depth	215.8 mm
Height (front)	9.13 mm
Height (rear)	1.48 cm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Packaging content	E4 Power Cord 1M for US
