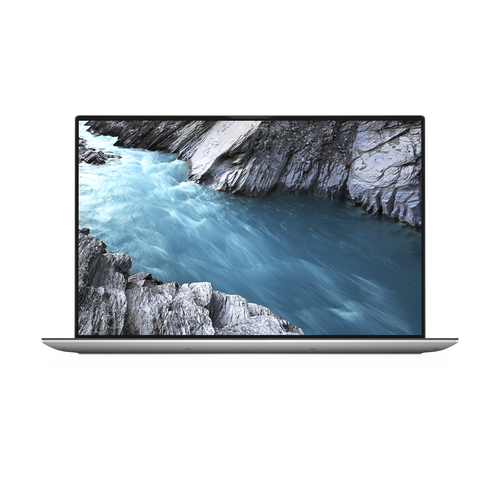

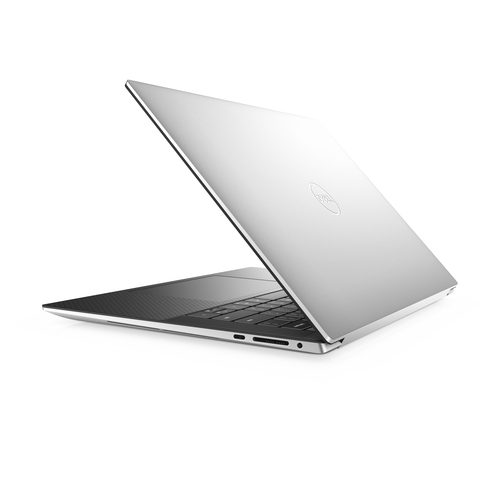

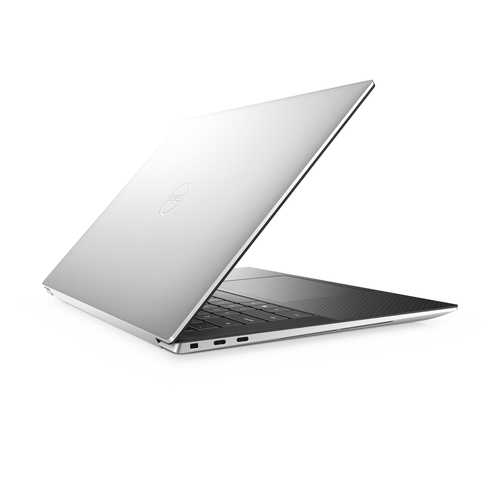

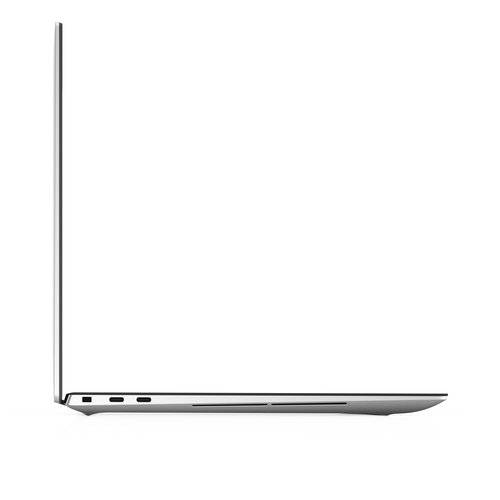

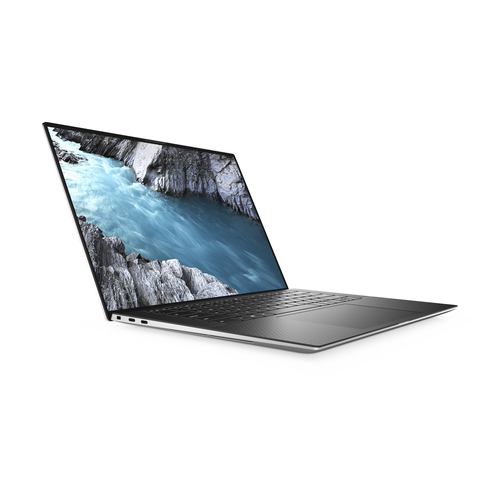

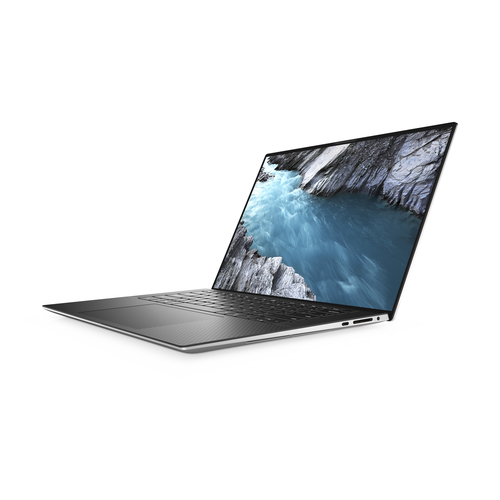

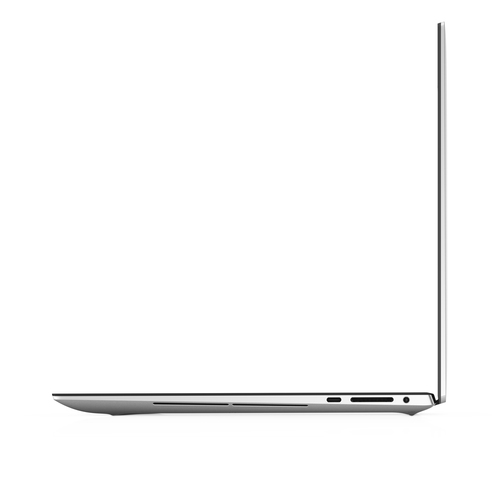

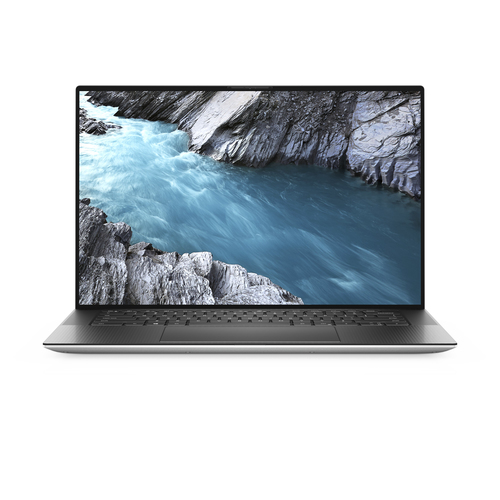

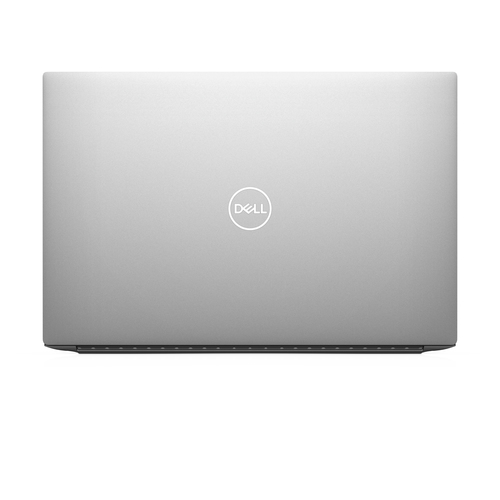

XPS 15 9500 Intel® Core™ i5 i5-10300H Laptop

39.6 cm (15.6") Full HD+ 8 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 1650 Ti Wi-Fi 6 (802.11ax) Windows 10

Model 9500Part no. BNX9502EAN 5397184472002

182 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage512 GB
GraphicsNVIDIA® GeForce® GTX 1650 Ti

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 512 GB
Graphics: NVIDIA® GeForce® GTX 1650 Ti

Brand: Dell
Category: Laptop
Model: 9500
Part numbers: BNX9502, 3YFWX, 40K5J, 49DT3, 7GY5C, D4DGC +34 more
EAN / UPC: 5397184472002, 5397184406724, 5397184406748, 5397184406731 +46 more
Also known as: DELL XPS 15 9500 Intel® Core™ i5 i5-10300H Laptop 39.6 cm (15.6") Full HD+ 8 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 1650 Ti Wi-Fi 6 (802.11ax) Windows 10

Specifications

182 specifications in 25 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Silver
Colour name	Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	Full HD+
LED backlight	Yes
Native aspect ratio	16:10
Display brightness	500 cd/m²
Pixel density	145 ppi
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	10th gen Intel® Core™ i5
Processor model	i5-10300H
Processor cores	4
Processor threads	8
Processor boost frequency	4.5 GHz
Processor frequency	2.5 GHz
System bus rate	8 GT/s
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	BGA 1440
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Comet Lake
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2933 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 4 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 1650 Ti
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® UHD Graphics
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x9BC4

Audio

Specification	Value
Audio chip	Realtek ALC3281-CG
Audio system	MaxxAudio Pro
Number of built-in speakers	4
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller model	Killer Wireless-AX 1650
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	0
Thunderbolt 3 ports quantity	2
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	Intel WM490

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard layout	QWERTY
Keyboard language	Nordic

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Operating system language	Norwegian
Bundled software	Financial Tracker & Retail Information

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Processor ARK ID	201839
Processor package size	42 x 28 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	86 Wh
Battery voltage	11.4 V
Battery recharge time	3 h
Battery weight	340 g

Power

Specification	Value
AC adapter power	130 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	6.5 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.05 kg
Width	344.4 mm
Depth	230.3 mm
Height (front)	7.7 mm
Height (rear)	1.8 cm

Packaging data

Specification	Value
Package width	112.1 mm
Package depth	425.7 mm
Package height	307.3 mm
Package weight	4.12 kg
Package material	Grey board, Corrugated cardboard, Bamboo molded pulp, High-Density Polyethylene (HDPE), Polypropylene (PP)

Recycling data

Specification	Value
Paper molded pulp content per package	0 g
Bamboo molded pulp content per package	105 g
Wheat straw molded pulp content per package	0 g
Grey board content per package	746 g
Corrugated cardboard content per package	726 g
Corrugated cardboard content per shipping (inner) case	632 g
Corrugated cardboard content per box for accessories	67 g
Corrugated cardboard content per sleeve for accessories	27 g
Polyethylene terephthalate (PET) content per package	0 g
High-density polyethylene (HDPE) content per package	5 g
Low-density polyethylene (LDPE) content per package	0 g
Polypropylene (PP) content per package	16 g
Polystyrene (PS) content per package	0 g
Other materials content per package	0 g

Packaging content

Specification	Value
Cables included	AC

Logistics data

Specification	Value
Maximum number of stacking cartons	23 pc(s)
Products per pallet layer	8 pc(s)
Layers per pallet	9 pc(s)
Products per pallet	72 pc(s)
Pallet gross width	100 cm
Pallet gross length	120 cm
Pallet gross weight	304.3 kg
Pallet volume weight	581.1 kg
Products per intermodal container (40ft, HC)	3003 pc(s)

Other features

Specification	Value
EPEAT rating	98.69%
