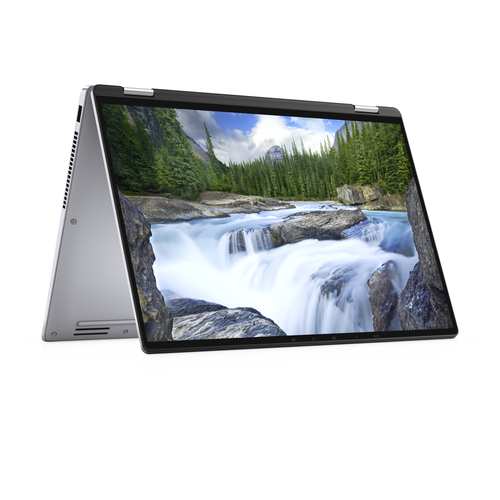

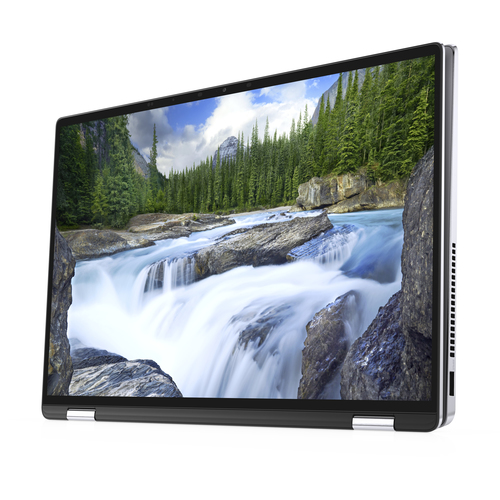

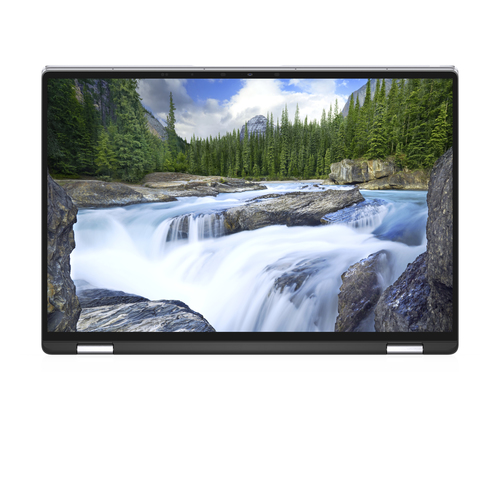

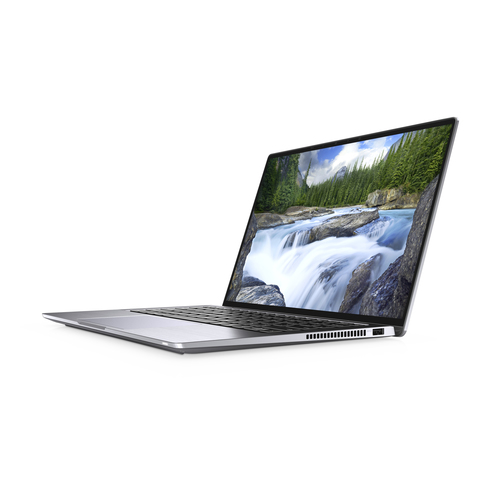

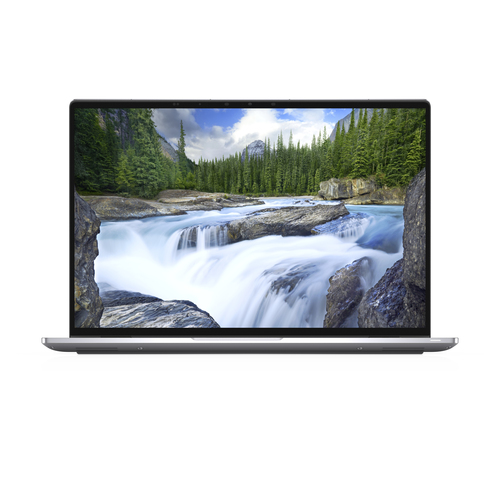

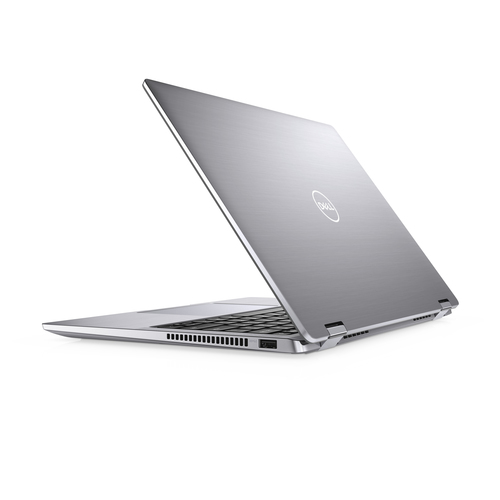

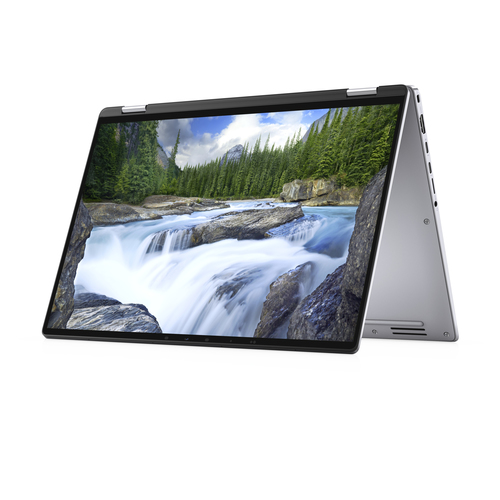

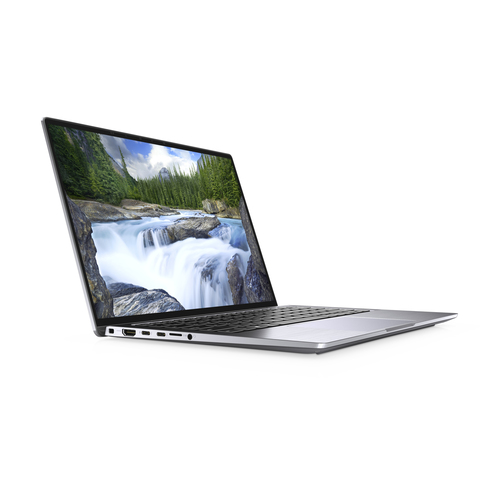

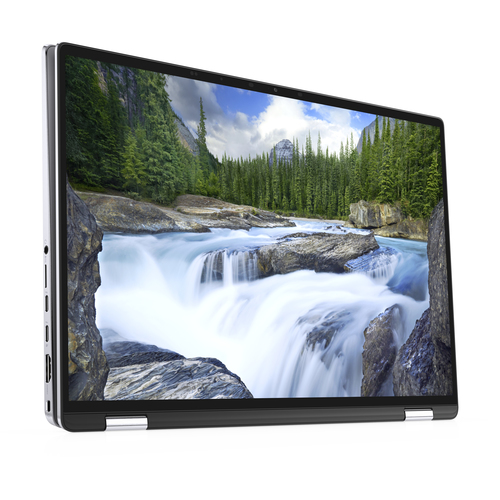

Dell 9420 2-in-1

9420 2-in-1

Model 9420 2-in-1Part no. NJN17EAN 5397184557044

143 specifications Checked today

Display35.6 cm (14")
Resolution2560 x 1600 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 2560 x 1600 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 9420 2-in-1
Part numbers: NJN17, L9422IN1I7TGS161TW11D3PSXCTO, L9422IN1I7TGS16512W11D3PSXCTO, 1Y41M, 8PN77, 8PNGF +21 more
EAN / UPC: 5397184557044, 5397184557181, 5397184631959, 5397184632062 +15 more
Also known as: DELL Latitude 9420 2-in-1 Intel® Core™ i7 i7-1185G7 Hybrid (2-in-1) 35.6 cm (14") Touchscreen Quad HD+ 16 GB LPDDR4x-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows

Specifications

143 specifications in 21 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Grey
Form factor	Convertible (Folder)
Housing material	Aluminium
Market positioning	Business
Intel® vPro™ Platform Eligibility	Yes

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	2560 x 1600 pixels
Touchscreen	Yes
HD type	Quad HD+
LED backlight	Yes
Native aspect ratio	16:10
Display brightness	500 cd/m²
Pixel density	216 ppi
Pixel pitch	0.1178 x 0.1178 mm
Colour gamut	100%
Display diagonal (metric)	35.56 cm
RGB colour space	sRGB
Display response rise/fall	35 ms
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	11th gen Intel® Core™ i7
Processor model	i7-1185G7
Processor cores	4
Processor boost frequency	4.8 GHz
Processor cache	12 MB
Configurable TDP-up frequency	3 GHz
Configurable TDP-up	28 W
Configurable TDP-down	12 W
Configurable TDP-down frequency	1.2 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR4x-SDRAM
Memory clock speed	4267 MHz
Memory form factor	On-board
Maximum internal memory	16 GB
ECC	No

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio chip	Realtek ALC711-CG
Audio system	MaxxAudio Pro
Number of built-in speakers	4
Speakers manufacturer	Waves
Speaker power	10 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX210
Bluetooth	Yes
Bluetooth version	5.2
MIMO	Yes
MIMO type	Multi User MIMO

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Thunderbolt technology	Yes
USB4 Gen 2x2 ports quantity	2
HDMI ports quantity	1
HDMI version	2.0
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
PowerShare	Yes
Number of USB ports with PowerShare support	1

Performance

Specification	Value
Ambient light sensor	Yes
Gyroscope	Yes
Proximity sensor	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard language	Italian

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	Multilingual
Trial software	Microsoft Office

Processor special features

Specification	Value
Intel® Evo™ Platform Verified	Yes
CPU configuration (max)	1
Embedded options available	No
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Number of battery cells	3
Battery capacity	60 Wh
Battery voltage	11.4 V
Battery recharge time	4 h
Fast charging	Yes
Battery weight	260 g

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes
USB charging voltage	5,9,15,20 V

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	140 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Certificates

Specification	Value
Wi-Fi certified	Yes

Weight & dimensions

Specification	Value
Weight	1.4 kg
Width	310.6 mm
Depth	215.2 mm
Height (front)	8.43 mm
Height (rear)	1.39 cm

Packaging content

Specification	Value
Cables included	AC
