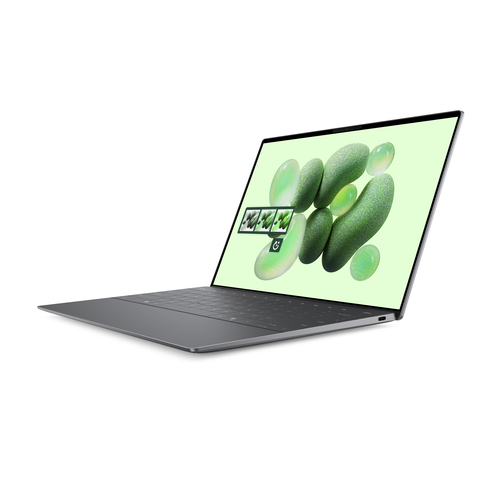

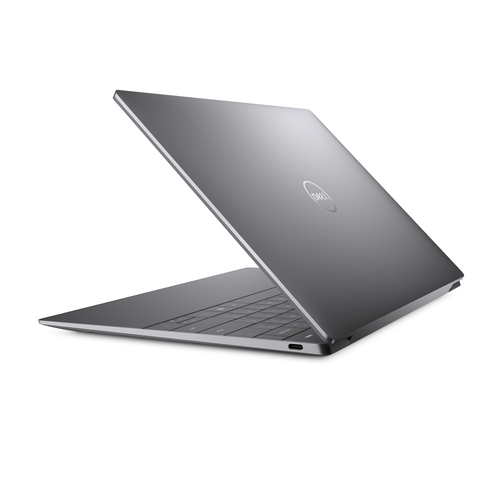

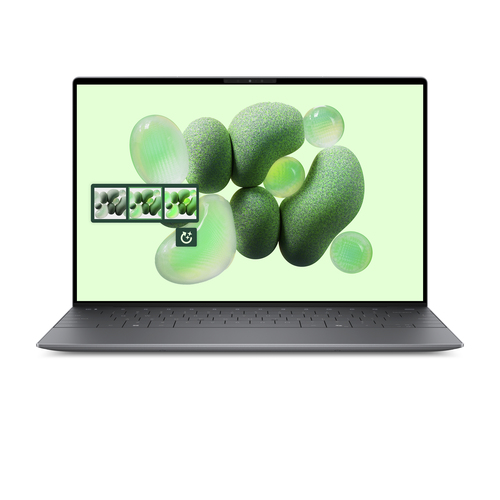

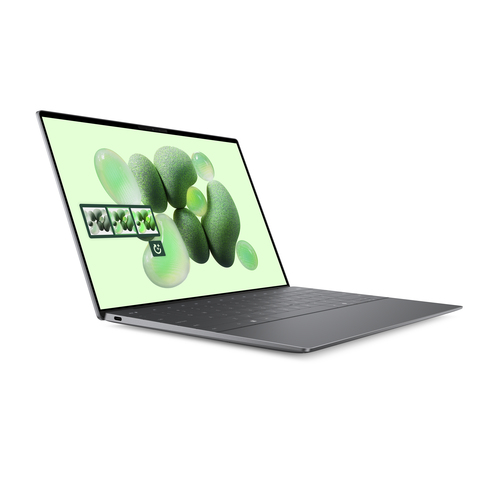

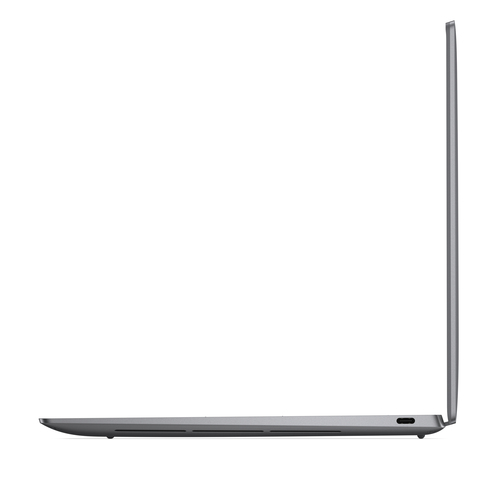

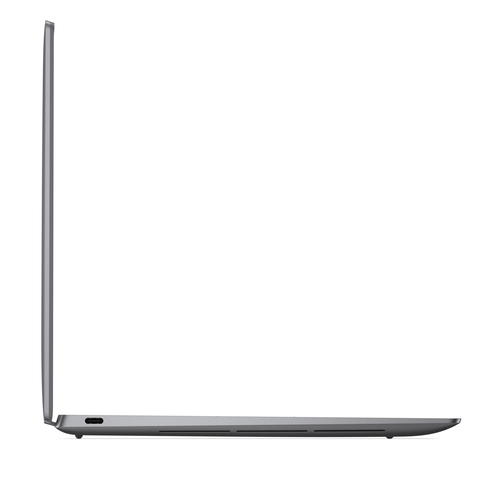

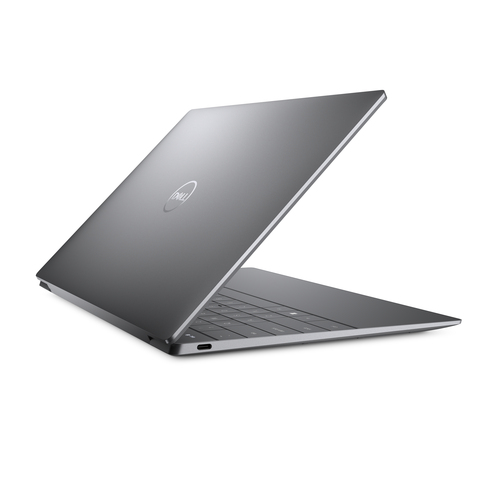

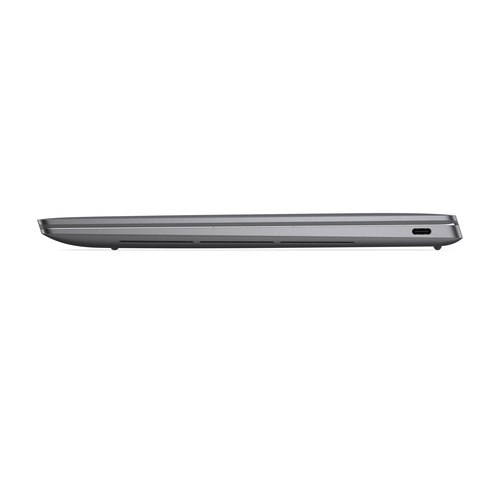

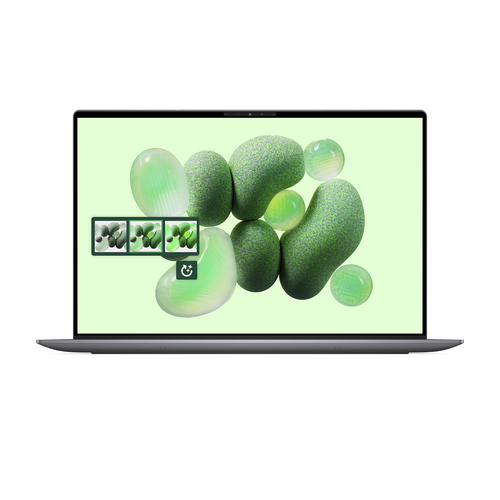

Dell XPS 13 9345 Snapdragon X1E-80-100 Laptop

XPS 13 9345 Snapdragon X1E-80-100 Laptop

34 cm (13.4") Full HD+ 32 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 7 (802.11be) Windows 11 Pro Graphite

Model 9345Part no. USEXCHCTO9345QCM02EAN 5397184955543

118 specifications Checked today

Display34 cm (13.4")
Resolution1920 x 1200 pixels
ProcessorSnapdragon
Memory32 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 34 cm (13.4")
Resolution: 1920 x 1200 pixels
Processor: Snapdragon
Memory: 32 GB
Storage: 1 TB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 9345
Part numbers: USEXCHCTO9345QCM02, USEXCHCTO9345QCM01, TRIBUTO_QC_25011100P, 9345-4331, 9345-5543, TRIBUTO_QC_2501_1100P +34 more
EAN / UPC: 5397184955543, 5397184983058, 5902002282031, 5397184945209 +14 more
Also known as: DELL XPS 13 9345 Snapdragon X1E-80-100 Laptop 34 cm (13.4") Full HD+ 32 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 7 (802.11be) Windows 11 Pro Graphite

Specifications

118 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Graphite
Form factor	Clamshell
Housing material	Aluminium
Market positioning	Premium
Introduction year	2024

Display

Specification	Value
Display diagonal	34 cm (13.4")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	Full HD+
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Pixel density	169.3 ppi
Colour gamut	100%
Display diagonal (metric)	33.96 cm
Low Blue Light technology	Yes
RGB colour space	sRGB
Maximum refresh rate	120 Hz
Contrast ratio (typical)	2000:1

Processor

Specification	Value
Processor manufacturer	Qualcomm
Processor family	Snapdragon
Processor model	X1E-80-100
Processor cores	12
Processor boost frequency	4 GHz
Processor frequency	3.4 GHz
Performance cores	8
Efficient cores	4
Processor cache	42 MB

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Qualcomm Hexagon
NPU performance up to	45 TOPs

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	32 GB
Memory channels	Dual-channel
Memory data transfer rate	8448 MT/s

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Qualcomm Adreno GPU

Audio

Specification	Value
Audio chip	Qualcomm WSA8845
Number of built-in speakers	4
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2.07 MP
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Antenna type	2x2
Wi-Fi data rate (max)	5760 Mbit/s
WLAN controller manufacturer	Qualcomm
WLAN controller model	Qualcomm FastConnect 7800
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	2
HDMI ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Ambient light sensor	Yes
Hall sensor	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Touch Bar	Yes
Copilot key	Yes

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	55 Wh
Battery voltage	11.55 V
Battery weight	219 g

Power

Specification	Value
AC adapter power	60 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3 A
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes
USB charging voltage	5,9,15,20 V

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Climate +, EPEAT Gold

Weight & dimensions

Specification	Value
Weight	1.24 kg
Width	295.3 mm
Depth	199.1 mm
Height	15.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
