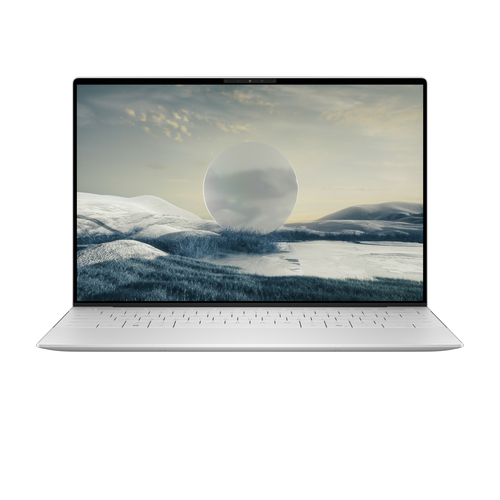

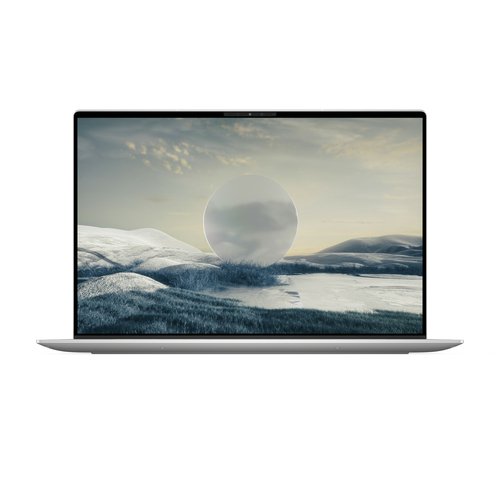

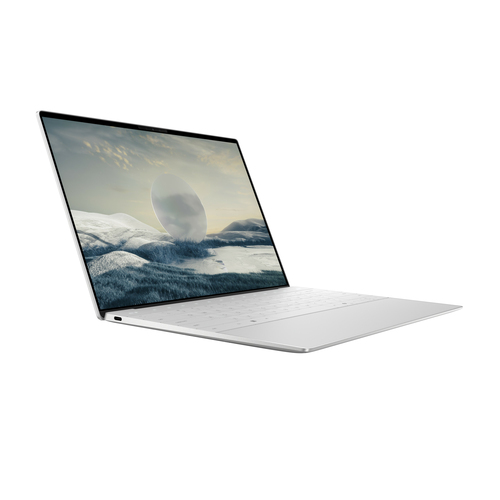

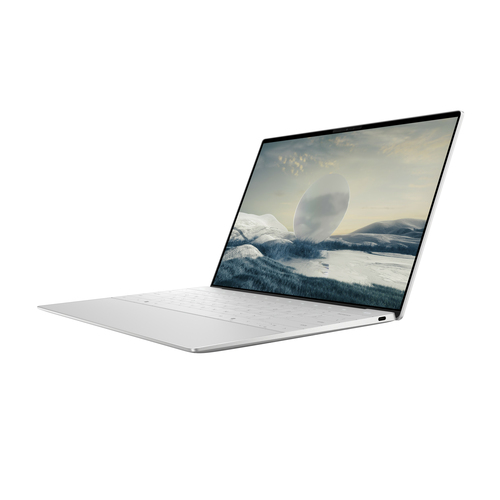

Dell XPS 13 9340 Intel Core Ultra 7 155H Laptop

XPS 13 9340 Intel Core Ultra 7 155H Laptop

34 cm (13.4") Full HD+ 16 GB LPDDR5-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro Platinum

Model 9340Part no. 6F5CNEAN 5397184901755

129 specifications Checked today

Display34 cm (13.4")
Resolution1920 x 1200 pixels
ProcessorIntel Core Ultra 7
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 34 cm (13.4")
Resolution: 1920 x 1200 pixels
Processor: Intel Core Ultra 7
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 9340
Part numbers: 6F5CN, TRIBUTO_MTL_2501_1300_HOM, TRIBUTO_MTL_2501_1300, USEXCHBTS9340GTSR, USEXCHBTS9340GTST, USEXCPBTS9340GTSQ +34 more
EAN / UPC: 5397184901755, 5397184901762, 5397184901779, 5397184901731 +14 more
Also known as: DELL XPS 13 9340 Intel Core Ultra 7 155H Laptop 34 cm (13.4") Full HD+ 16 GB LPDDR5-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro Platinum

Specifications

129 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Platinum
Form factor	Clamshell

Display

Specification	Value
Display diagonal	34 cm (13.4")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	Full HD+
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Pixel density	169.3 ppi
Pixel pitch	0.15 x 0.15 mm
Colour gamut	100%
RGB colour space	sRGB
Display response rise/fall	35 ms
Maximum refresh rate	120 Hz
Contrast ratio (typical)	2000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel® Core™ Ultra (Series 1)
Processor model	155H
Processor cores	16
Processor boost frequency	4.8 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Maximum turbo power	115 W
Processor base power	28 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Maximum frequency NPU	1.4 GHz
Sparsity support	Yes
Windows Studio effects support	Yes
AI datatype support on NPU	FP16, FP32, Int8
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Memory clock speed	7467 MHz
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc Graphics

Audio

Specification	Value
Number of built-in speakers	4
Speaker power	8 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	Full HD
Video capturing speed	30 fps
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 7 BE200
Ethernet LAN	No
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	0
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	McAfee 12 Months Business Security,Microsoft Office Trial

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	55 Wh
Battery voltage	11.55 V
Battery recharge time	3 h
Battery weight	219 g

Power

Specification	Value
AC adapter power	60 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes
USB charging voltage	5,9,15,20 V
USB charging current	3 A

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G

Weight & dimensions

Specification	Value
Weight	1.22 kg
Width	295.3 mm
Depth	199.1 mm
Height	15.3 mm

Carbon footprint

Specification	Value
Carbon emissions, end-of-life (kg of CO2e)	1.486
Carbon emissions, energy usage (kg of CO2e)	30.368
Carbon emissions, logistics (kg of CO2e)	11.764
Carbon emissions, manufacturing (kg of CO2e)	219.83
PAIA version	1.4.0, 2024
Total carbon emissions, standard deviation (kg of CO2e)	50
Total carbon emissions, w/o use phase (kg of CO2e)	232.632
Total carbon footprint (kg of CO2e)	263
