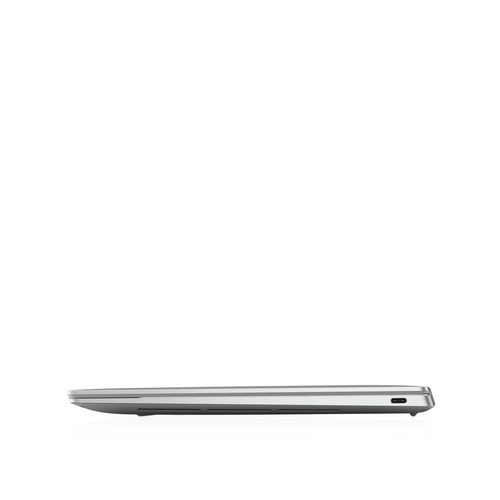

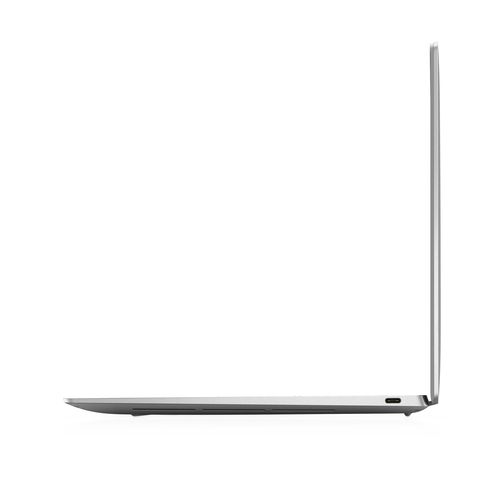

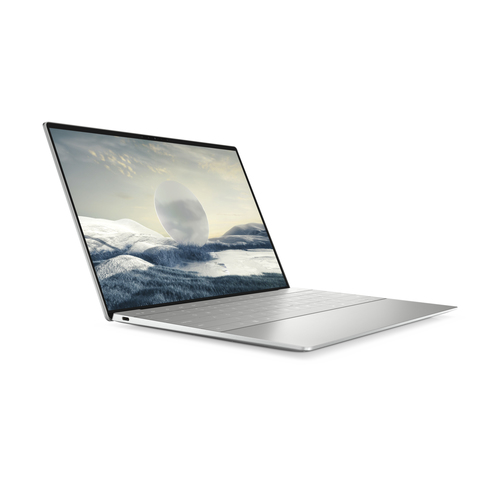

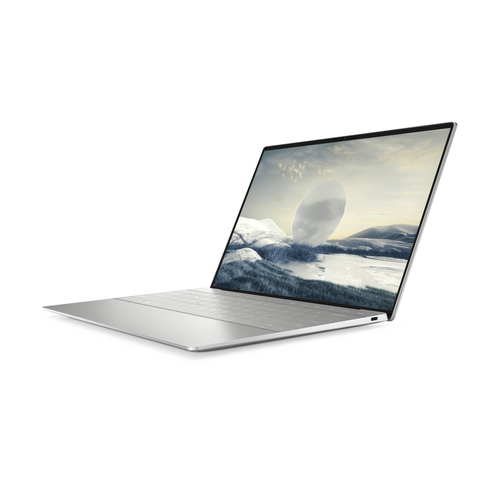

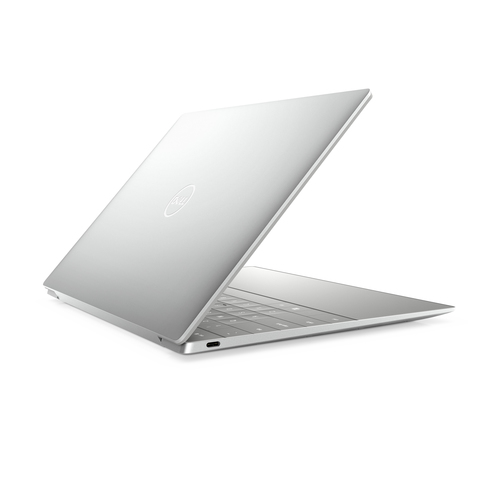

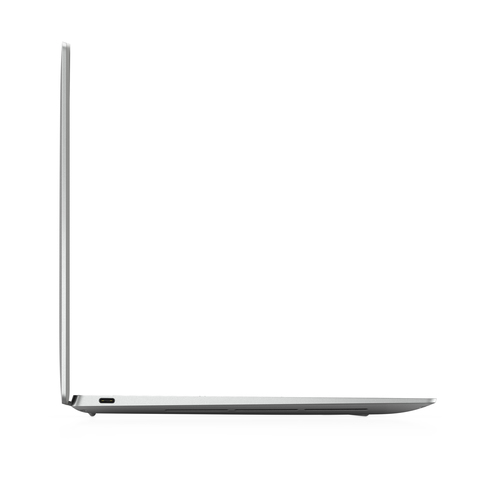

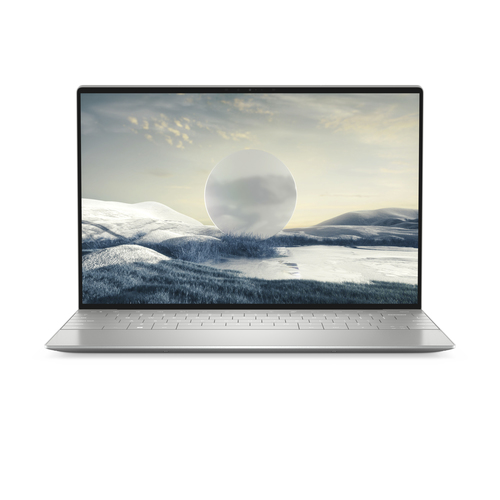

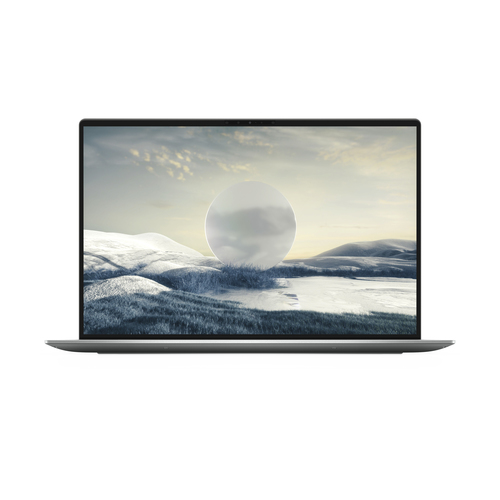

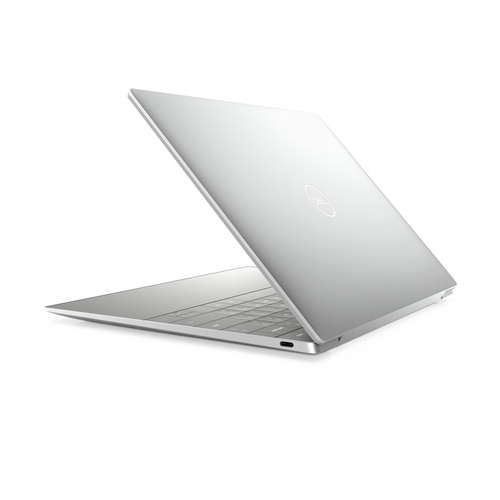

Dell XPS 13 Plus 9320 Intel® Core™ i7 i7-1260P Laptop

XPS 13 Plus 9320 Intel® Core™ i7 i7-1260P Laptop

34 cm (13.4") Touchscreen 3.5K Ultra HD 32 GB LPDDR5-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Gr

Model 9320Part no. XN9320CTO030SEAN 5397184751398

123 specifications Checked today

Display34 cm (13.4")
Resolution3456 x 2160 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 34 cm (13.4")
Resolution: 3456 x 2160 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 1 TB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 9320
Part numbers: XN9320CTO030S, 0T4PC, CY8WY, T4N2K, 9320-6233, 9320-6240 +34 more
EAN / UPC: 5397184751398, 884116437512, 5397184751404, 5397184751411 +46 more
Also known as: DELL XPS 13 Plus 9320 Intel® Core™ i7 i7-1260P Laptop 34 cm (13.4") Touchscreen 3.5K Ultra HD 32 GB LPDDR5-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Gr

Specifications

123 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Form factor	Clamshell
Housing material	Aluminium

Display

Specification	Value
Display diagonal	34 cm (13.4")
Display resolution	3456 x 2160 pixels
Touchscreen	Yes
HD type	3.5K Ultra HD
Panel type	OLED
LED backlight	Yes
Anti-reflective coating	Yes
Display bezel technology	InfinityEdge
Display brightness	400 cd/m²
Pixel density	304 ppi
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-1260P
Processor cores	12
Processor threads	16
Processor boost frequency	4.7 GHz
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.4 GHz
Efficient-core boost frequency	3.7 GHz
Processor cache	18 MB
Processor cache type	Smart Cache
Processor socket	BGA 1744
Configurable TDP-down	20 W
Maximum turbo power	64 W
Processor base power	28 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	LPDDR5-SDRAM
Memory clock speed	5200 MHz
Memory form factor	On-board
Maximum internal memory	32 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio chip	Realtek ALC1319D
Number of built-in speakers	2
Speaker power	4 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Antenna type	2x2
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	0
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Ambient light sensor	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard language	English

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Operating system language	English
Trial software	McAfee® Small Business Security 12-month subscription

Processor special features

Specification	Value
Intel® Evo™ Platform Verified	Yes
CPU configuration (max)	1

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	55 Wh
Battery voltage	11.55 V
Battery recharge time	3 h
Battery weight	219 g

Power

Specification	Value
AC adapter power	60 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes
USB charging voltage	5,9,15,20 V
USB charging current	3 A

Security

Specification	Value
Fingerprint reader	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	1.26 kg
Width	295.3 mm
Depth	199 mm
Height	15.3 mm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Packaging content	Power Cord (US)
