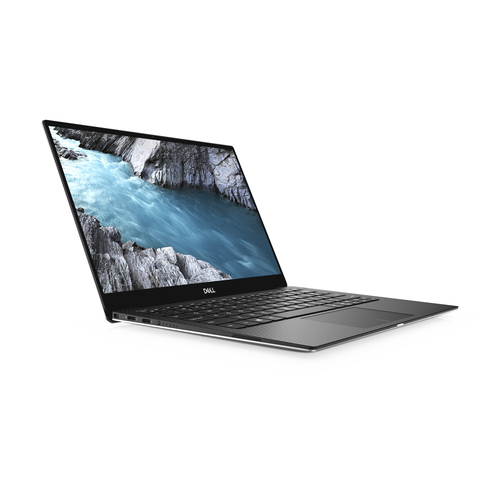

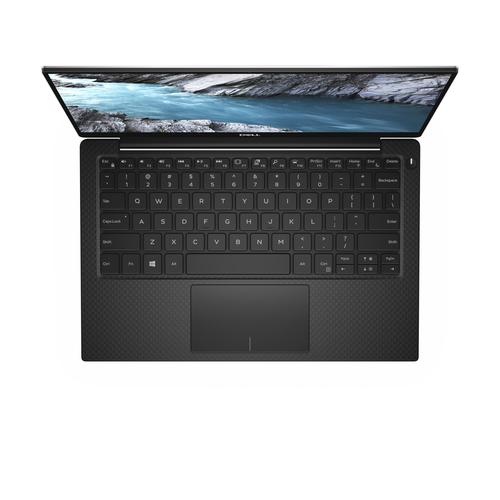

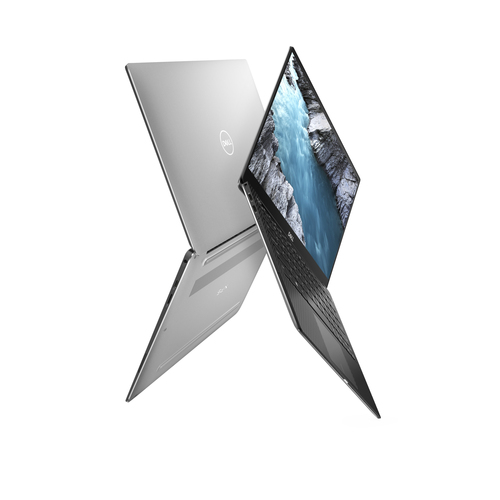

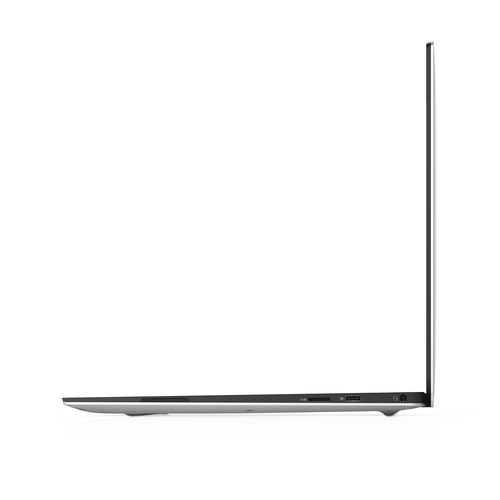

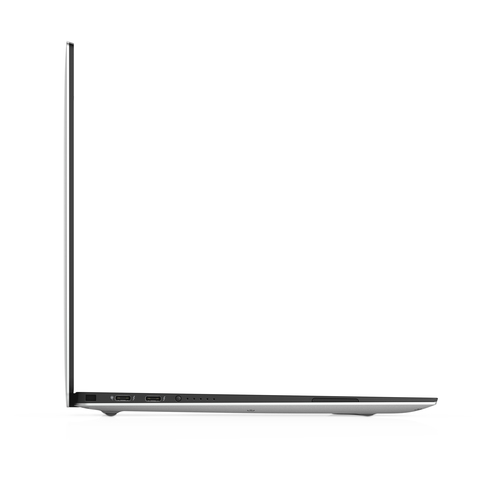

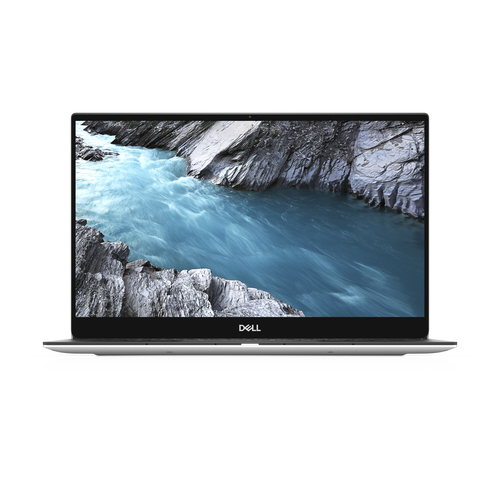

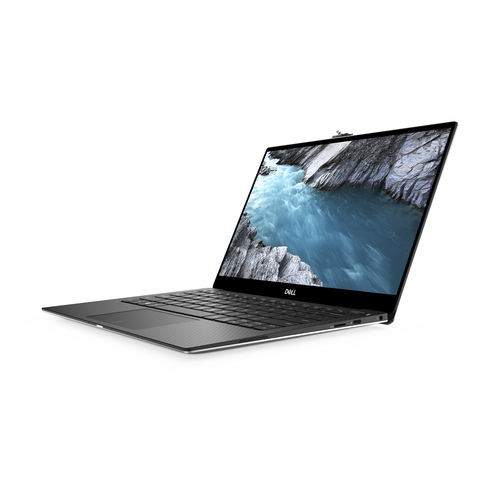

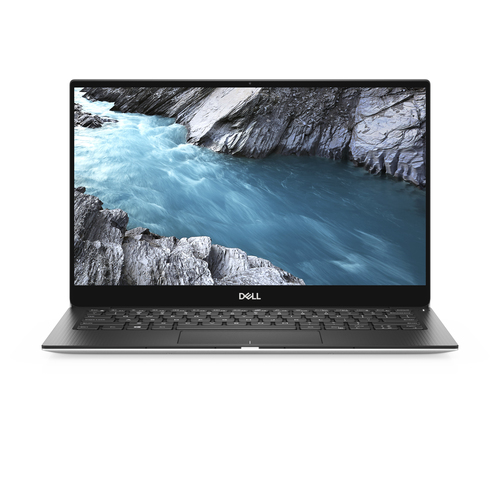

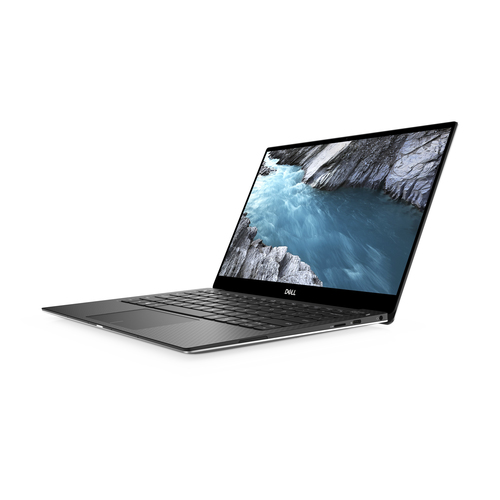

Dell XPS 13 9305 Intel® Core™ i7 i7-1165G7 Laptop

XPS 13 9305 Intel® Core™ i7 i7-1165G7 Laptop

33.8 cm (13.3") Touchscreen 4K Ultra HD 16 GB LPDDR4x-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Home Blac

Model 9305Part no. CN93505SCEAN 5397184616260

159 specifications Checked today

Display33.8 cm (13.3")
Resolution3840 x 2160 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 3840 x 2160 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 9305
Part numbers: CN93505SC, CN93506SC, CN93511SC, NX9305-W001KR, NX9305-W002KR, NX9305-W003KR +34 more
EAN / UPC: 5397184616260, 5397184615201, 5397184639795, 5397184616253 +19 more
Also known as: DELL XPS 13 9305 Intel® Core™ i7 i7-1165G7 Laptop 33.8 cm (13.3") Touchscreen 4K Ultra HD 16 GB LPDDR4x-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Home Blac

Specifications

159 specifications in 24 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Platinum, Silver
Colour name	Platinum Silver
Form factor	Clamshell
Housing material	Aluminium

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	3840 x 2160 pixels
Touchscreen	Yes
HD type	4K Ultra HD
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:9
Display glass type	Gorilla Glass
Display brightness	400 cd/m²
Pixel density	331 ppi
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	11th gen Intel® Core™ i7
Processor model	i7-1165G7
Processor cores	4
Processor boost frequency	4.7 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Configurable TDP-up frequency	2.8 GHz
Configurable TDP-up	28 W
Configurable TDP-down	12 W
Configurable TDP-down frequency	1.2 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR4x-SDRAM
Memory clock speed	4267 MHz
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3271-CG
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speakers manufacturer	Waves
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Killer
WLAN controller model	Killer Wireless-AX 1650
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	2
HDMI ports quantity	0
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Bundled software	Financial Tracker & Retail Information

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	52 Wh
Battery voltage	7.6 V
Removable battery	No
Battery recharge time	4 h
Battery charge indicator	Yes
Battery weight	220 g

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1.7 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.29 kg
Width	301.8 mm
Depth	199.2 mm
Height (front)	7.8 mm
Height (rear)	1.16 cm

Packaging data

Specification	Value
Package width	82 mm
Package depth	450 mm
Package height	293 mm
Package weight	2.5 kg
Package material	Grey board, Corrugated cardboard, High-Density Polyethylene (HDPE), Low-density polyethylene (LDPE), Polypropylene (PP)

Recycling data

Specification	Value
Paper molded pulp content per package	0 g
Bamboo molded pulp content per package	0 g
Wheat straw molded pulp content per package	0 g
Grey board content per package	331 g
Corrugated cardboard content per package	448 g
Corrugated cardboard content per shipping (inner) case	400 g
Corrugated cardboard content per box for accessories	48 g
Corrugated cardboard content per sleeve for accessories	0 g
Polyethylene terephthalate (PET) content per package	0 g
High-density polyethylene (HDPE) content per package	74 g
Low-density polyethylene (LDPE) content per package	46 g
Polypropylene (PP) content per package	15 g
Polystyrene (PS) content per package	0 g
Other materials content per package	0 g

Packaging content

Specification	Value
Cables included	AC

Logistics data

Specification	Value
Maximum number of stacking cartons	26 pc(s)
Products per pallet layer	30 pc(s)
Layers per pallet	3 pc(s)
Products per pallet	90 pc(s)
Pallet gross width	100 cm
Pallet gross length	120 cm
Pallet gross weight	233.7 kg
Pallet volume weight	203.8 kg
Products per intermodal container (20ft)	1800 pc(s)
Products per intermodal container (40ft)	3780 pc(s)

Other features

Specification	Value
EPEAT rating	85.23%
