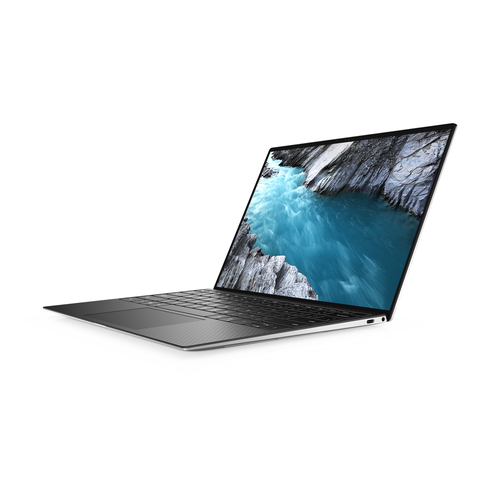

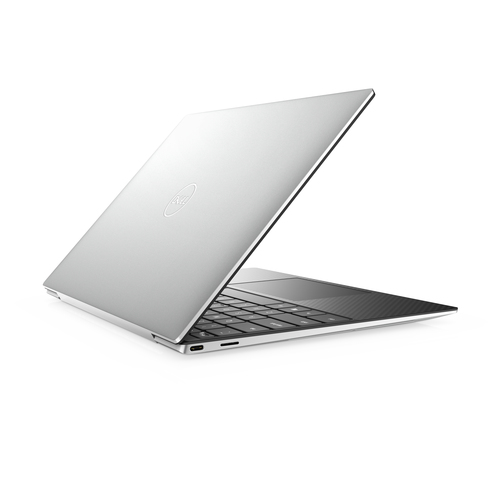

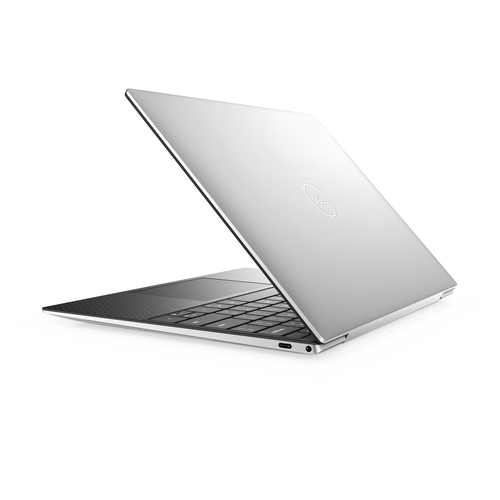

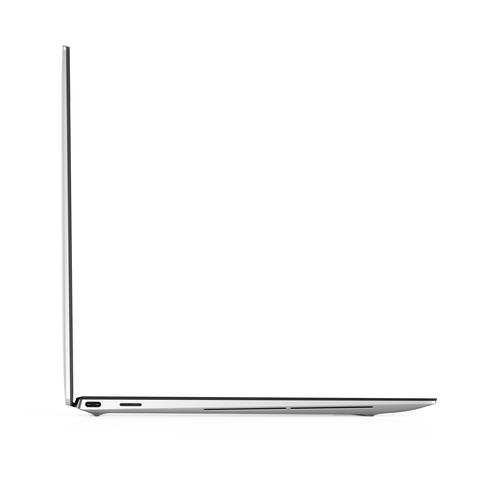

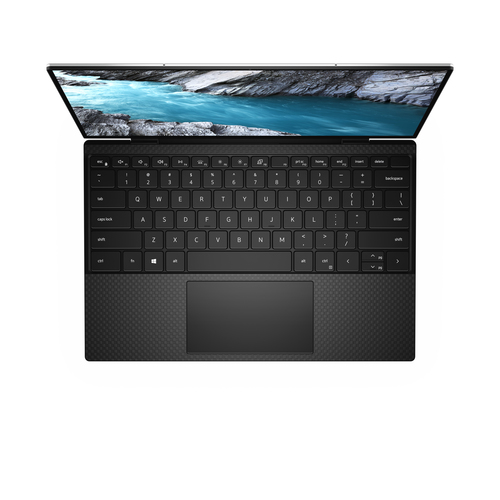

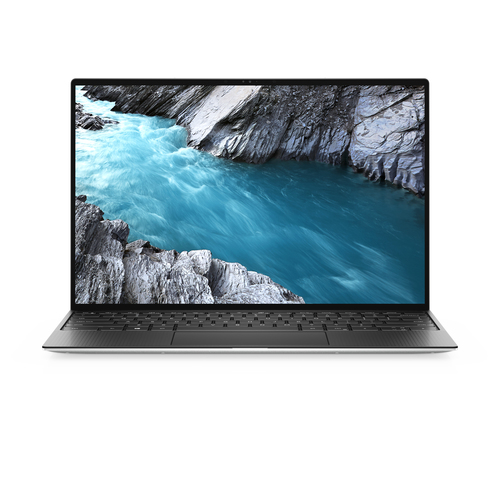

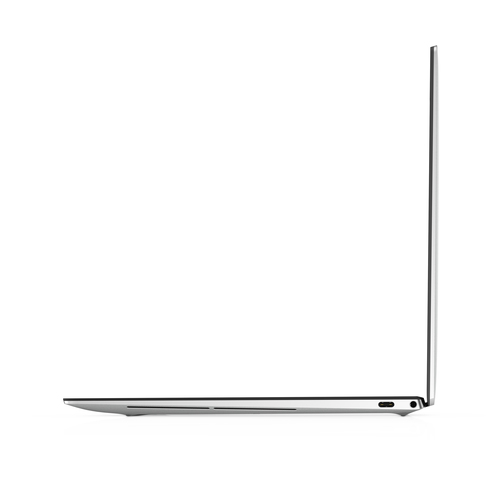

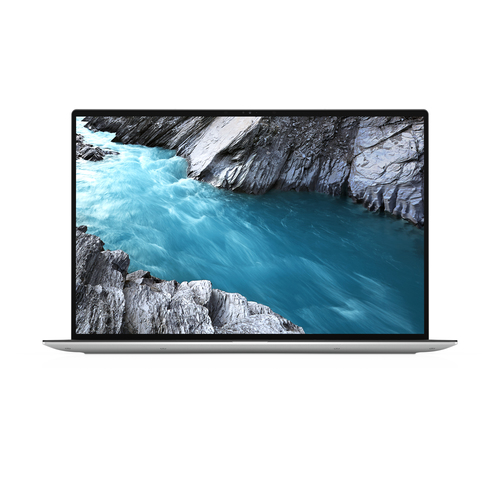

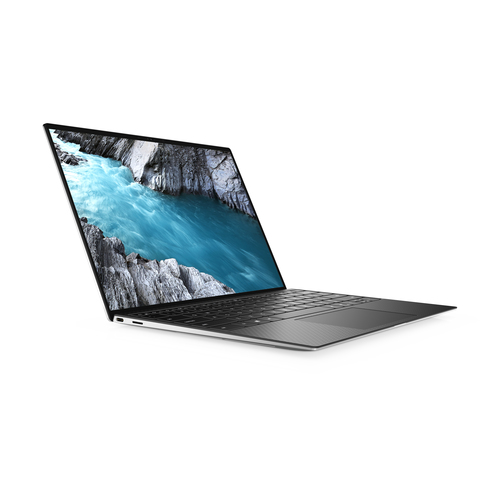

XPS 13 9300-6892 laptop Intel® Core™ i7 i7-1065G7 Ultraportable

34 cm (13.4") Touchscreen UHD+ 32 GB LPDDR4x-SDRAM 2 TB SSD Wi-Fi 6 (802.11ax) Windows 10 H

Model 9300-6892EAN 5397184406892

179 specifications Checked today

Display34 cm (13.4")
Resolution3840 x 2400 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage2 TB
GraphicsNot available

See all specifications

Overview

Display: 34 cm (13.4")
Resolution: 3840 x 2400 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 2 TB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 9300-6892
Part number: 9300-6892
EAN / UPC: 5397184406892
Also known as: DELL XPS 13 9300-6892 laptop Intel® Core™ i7 i7-1065G7 Ultraportable 34 cm (13.4") Touchscreen UHD+ 32 GB LPDDR4x-SDRAM 2 TB SSD Wi-Fi 6 (802.11ax) Windows 10 H

Specifications

179 specifications in 24 groups

Design

Specification	Value
Product type	Ultraportable
Product colour	Black, Platinum, Silver
Colour name	Platinum Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	34 cm (13.4")
Display resolution	3840 x 2400 pixels
Touchscreen	Yes
HD type	UHD+
Native aspect ratio	16:10
Display bezel technology	InfinityEdge
Display brightness	500 cd/m²
Pixel density	338.67 ppi
Pixel pitch	0.08 x 0.08 mm
Display response rise/fall	35 ms
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	10th gen Intel® Core™ i7
Processor model	i7-1065G7
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	1.3 GHz
System bus rate	4 GT/s
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	BGA 1526
Processor lithography	10 nm
Processor operating modes	64-bit
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	1.5 GHz
Configurable TDP-up	25 W
Configurable TDP-down	12 W
Configurable TDP-down frequency	1 GHz
Tjunction	100 °C
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	LPDDR4x-SDRAM
Memory clock speed	3733 MHz
Memory form factor	On-board
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	SSD
Total SSDs capacity	2 TB
Number of SSDs installed	1
SSD capacity	2 TB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card model	Intel Iris Plus Graphics
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x8A52

Audio

Specification	Value
Audio chip	Realtek ALC3281-CG
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speakers manufacturer	Waves
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller model	Killer Wireless-AX 1650
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	0
Thunderbolt 3 ports quantity	2
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Bundled software	Financial Tracker & Retail Information

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	196597
Processor package size	50 x 25 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0, AVX-512
Thermal Monitoring Technologies	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	52 Wh
Battery voltage	7.6 V
Battery weight	220 g

Power

Specification	Value
AC adapter power	45 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	2.25 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.31 kg
Width	295.6 mm
Depth	198.7 mm
Height (front)	6.75 mm
Height (rear)	9.58 mm

Packaging data

Specification	Value
Package width	133 mm
Package depth	374.5 mm
Package height	275.5 mm
Package weight	3.01 kg
Package material	Grey board, Corrugated cardboard, High-Density Polyethylene (HDPE), Polypropylene (PP)

Recycling data

Specification	Value
Paper molded pulp content per package	0 g
Bamboo molded pulp content per package	0 g
Wheat straw molded pulp content per package	0 g
Grey board content per package	645 g
Corrugated cardboard content per package	651 g
Corrugated cardboard content per shipping (inner) case	546 g
Corrugated cardboard content per box for accessories	36 g
Corrugated cardboard content per sleeve for accessories	69 g
Polyethylene terephthalate (PET) content per package	0 g
High-density polyethylene (HDPE) content per package	91 g
Low-density polyethylene (LDPE) content per package	0 g
Polypropylene (PP) content per package	14 g
Polystyrene (PS) content per package	0 g
Other materials content per package	0 g

Packaging content

Specification	Value
Cables included	AC

Logistics data

Specification	Value
Maximum number of stacking cartons	19 pc(s)
Products per pallet layer	8 pc(s)
Layers per pallet	8 pc(s)
Products per pallet	64 pc(s)
Pallet gross width	100 cm
Pallet gross length	120 cm
Pallet gross weight	200.6 kg
Pallet volume weight	468.8 kg
Products per intermodal container (40ft, HC)	2667 pc(s)

Other features

Specification	Value
EPEAT rating	92.51%
