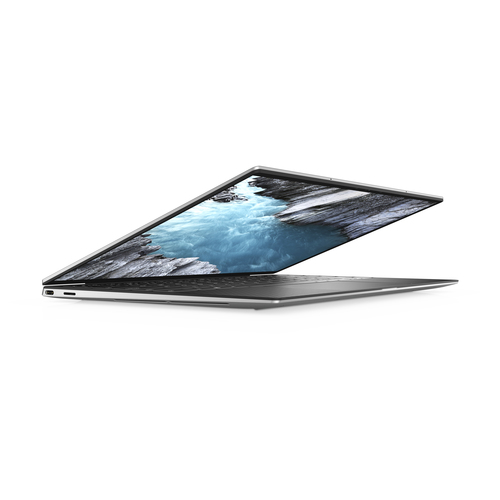

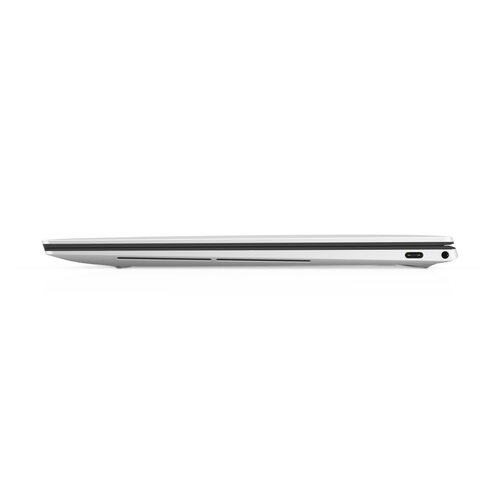

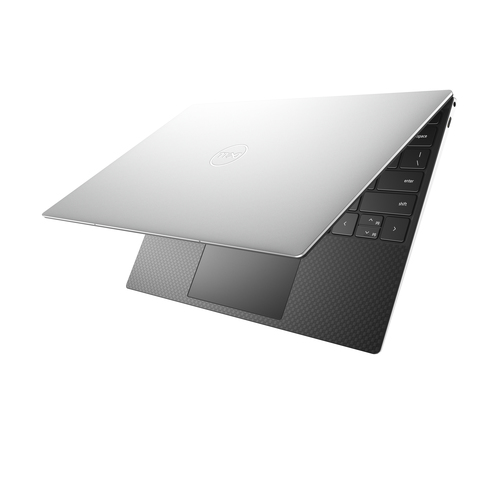

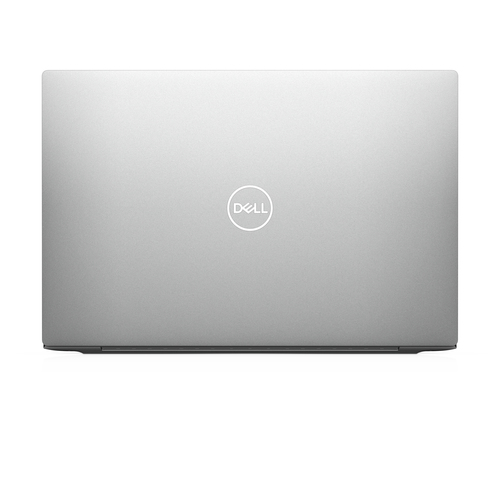

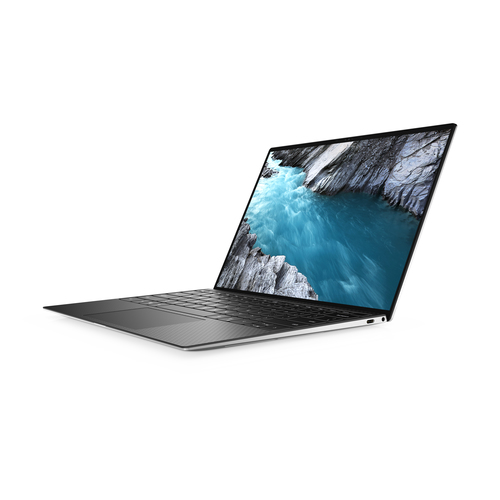

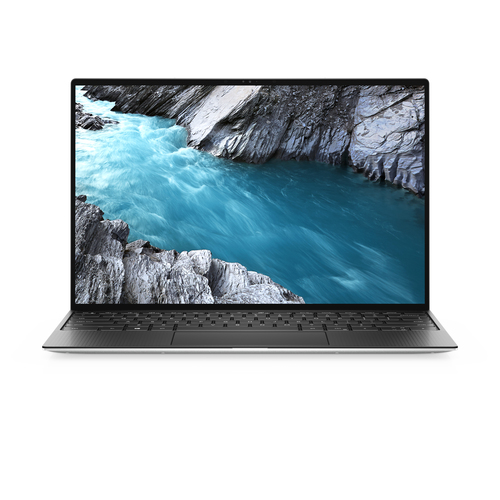

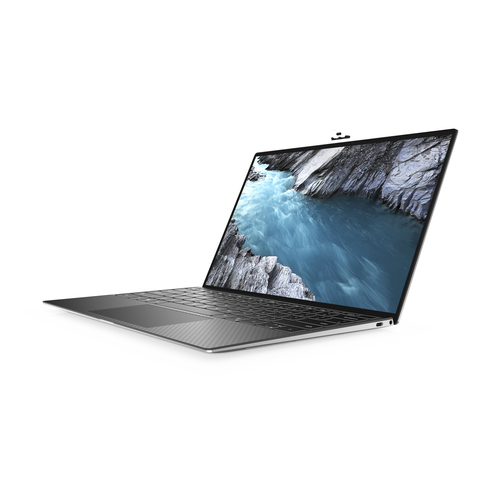

XPS 13 9300 Intel® Core™ i5 i5-1035G1 Ultraportable

34 cm (13.4") Full HD+ 8 GB LPDDR4x-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro Black, Platinum,

Model 9300Part no. XN9300DWIFHEAN 5397184351444

154 specifications Checked today

Display34 cm (13.4")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 34 cm (13.4")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 512 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 9300
Part numbers: XN9300DWIFH, XN9300DWIHH, 0F0TR, 9300-1390, 9300-1406, 9300-1413 +34 more
EAN / UPC: 5397184351444, 5397184351451, 5397184351468, 884116368243 +13 more
Also known as: DELL XPS 13 9300 Intel® Core™ i5 i5-1035G1 Ultraportable 34 cm (13.4") Full HD+ 8 GB LPDDR4x-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro Black, Platinum,

Specifications

154 specifications in 20 groups

Design

Specification	Value
Product type	Ultraportable
Product colour	Black, Platinum, Silver
Colour name	Platinum Silver
Form factor	Clamshell
Housing material	Aluminium, Carbon fibre

Display

Specification	Value
Display diagonal	34 cm (13.4")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	Full HD+
LED backlight	Yes
Native aspect ratio	16:10
Display bezel technology	InfinityEdge
Display brightness	500 cd/m²
Pixel pitch	0.15 x 0.15 mm
Display response rise/fall	35 ms
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	10th gen Intel® Core™ i5
Processor model	i5-1035G1
Processor cores	4
Processor threads	8
Processor boost frequency	3.6 GHz
Processor frequency	1 GHz
System bus rate	4 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	BGA 1526
Processor lithography	10 nm
Processor operating modes	64-bit
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	1.2 GHz
Configurable TDP-up	25 W
Configurable TDP-down	13 W
Configurable TDP-down frequency	0.7 GHz
Tjunction	100 °C
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	LPDDR4x-SDRAM
Memory clock speed	3733 MHz
Memory form factor	On-board
Maximum internal memory	8 GB
Maximum internal memory (64-bit)	8 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x8A56

Audio

Specification	Value
Audio chip	Realtek ALC3281-CG
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speakers manufacturer	Waves
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Front camera signal format	720p
Video capturing speed	30 fps
Infrared (IR) camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller model	Killer Wireless-AX 1650
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	0
Thunderbolt 3 ports quantity	2
Thunderbolt™ 3 Technology	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	196603
Processor package size	50 x 25 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0, AVX-512
Thermal Monitoring Technologies	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	52 Wh
Battery voltage	7.6 V
Battery weight	220 g

Power

Specification	Value
AC adapter power	45 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	2.25 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Face recognition	Yes
Windows Hello	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.2 kg
Width	295.6 mm
Depth	198.7 mm
Height (front)	6.75 mm
Height (rear)	9.58 mm

Packaging content

Specification	Value
AC adapter included	Yes
Power cord included	Yes
Warranty card	Yes
