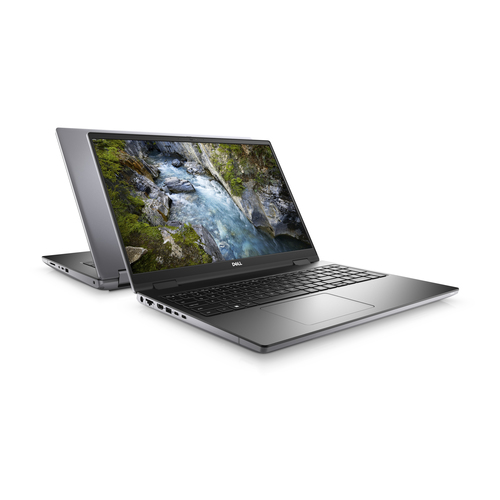

Dell Precision 7770 Intel® Core™ i7 i7-12850HX Mobile workstation

Precision 7770 Intel® Core™ i7 i7-12850HX Mobile workstation

43.9 cm (17.3") Full HD 64 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX A1000 Wi-Fi 6E (802.11ax) Windo

Model 7770Part no. GF3PCEAN 5397184751183

140 specifications Checked today

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory64 GB
Storage512 GB
GraphicsNVIDIA RTX A1000

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 64 GB
Storage: 512 GB
Graphics: NVIDIA RTX A1000

Brand: Dell
Category: Laptop
Model: 7770
Part numbers: GF3PC, 32YF2, CV7GH, 09CGY, 57CPH, G65W6 +34 more
EAN / UPC: 5397184751183, 5397184751268, 5397184751206, 5397184762738 +22 more
Also known as: DELL Precision 7770 Intel® Core™ i7 i7-12850HX Mobile workstation 43.9 cm (17.3") Full HD 64 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX A1000 Wi-Fi 6E (802.11ax) Windo

Specifications

140 specifications in 21 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Grey
Form factor	Clamshell
Market positioning	Business

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	WVA
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	500 cd/m²
Pixel density	127 ppi
Colour gamut	99%
RGB colour space	DCI-P3
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-12850HX
Processor cores	16
Processor threads	24
Processor boost frequency	4.8 GHz
Performance cores	8
Efficient cores	8
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.4 GHz
Processor cache	25 MB
Processor cache type	Smart Cache
Processor socket	BGA 1964
Maximum turbo power	157 W
Processor base power	55 W

Memory

Specification	Value
Internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	CAMM module
Memory layout (slots x size)	1 x 64 GB
Maximum internal memory	128 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA RTX A1000
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio chip	Realtek ALC711-VD
Number of built-in speakers	4
Speaker power	2.5 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
Antenna type	2x2
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s
Bluetooth	Yes

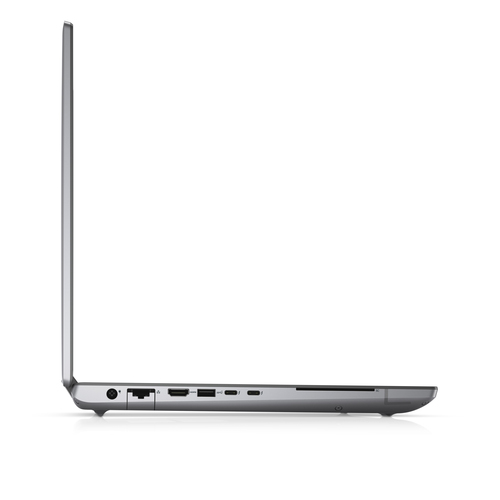

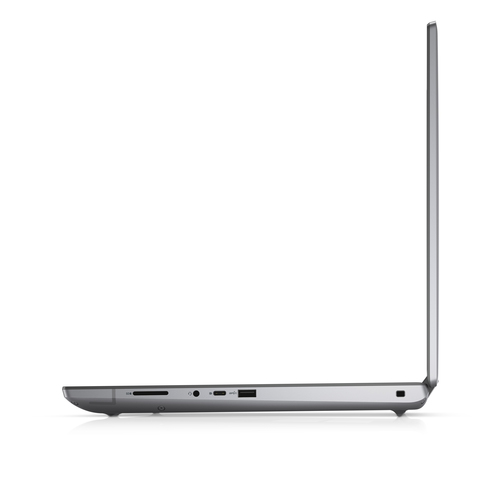

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
Power adapter barrel connector	7.4 mm
USB Type-C DisplayPort Alternate Mode	Yes
PowerShare	Yes

Performance

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes
Hall sensor	Yes

Keyboard

Specification	Value
Pointing device	SinglePoint
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	US English

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	French, Spanish, English

Brand-specific features

Specification	Value
Brand specific technologies	Express Charge Boost capable, Control Vault 3+

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	93 Wh
Battery voltage	11.55 V
Battery recharge time	3 h
Fast charging	Yes
Battery charge indicator	Yes
Battery weight	410 g

Power

Specification	Value
AC adapter power	240 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	12.3 A
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Wedge
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Gold

Weight & dimensions

Specification	Value
Weight	3.02 kg
Width	398 mm
Depth	265 mm
Height (front)	2.6 cm
Height (rear)	2.67 cm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Packaging content	E5 Power cord 1M US
