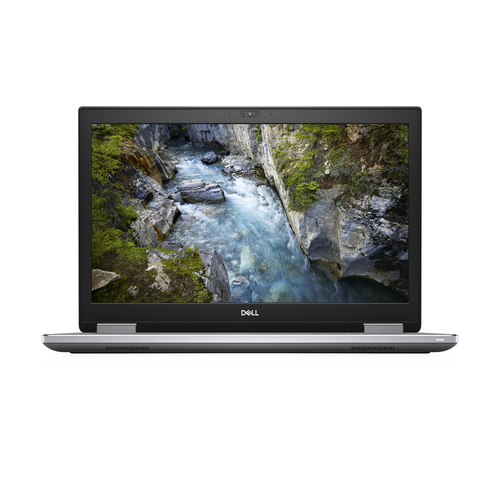

Precision 7740 Intel® Core™ i5 i5-9400H Mobile workstation
43.9 cm (17.3") HD+ 8 GB DDR4-SDRAM 500 GB HDD Wi-Fi 6 (802.11ax) Windows 10 Pro Black
Model 7740Part no. CUP41507740F08PN2OJPEAN 5397184295359
169 specifications Checked today
- Display43.9 cm (17.3")
- Resolution1600 x 900 pixels
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 43.9 cm (17.3")
- Resolution
- 1600 x 900 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- Dell
- Category
- Laptop
- Model
- 7740
- Part numbers
- CUP41507740F08PN2OJP, CUPP3207740S08PN2OJP, CUPP3207740N16PN2OJP, AWM7740, XCTOP774017USBR, P7740I79850HNW01-ONLINE +34 more
- EAN / UPC
- 5397184295359, 5397184296769, 5397184295342, 5397184295250 +13 more
- Also known as
- DELL Precision 7740 Intel® Core™ i5 i5-9400H Mobile workstation 43.9 cm (17.3") HD+ 8 GB DDR4-SDRAM 500 GB HDD Wi-Fi 6 (802.11ax) Windows 10 Pro Black
Specifications
169 specifications in 20 groups
Design
| Specification | Value |
|---|---|
| Product type | Mobile workstation |
| Product colour | Black |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 1600 x 900 pixels |
| Touchscreen | No |
| HD type | HD+ |
| Panel type | TN |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 220 cd/m² |
| Pixel density | 106 ppi |
| Pixel pitch | 0.2388 x 0.2388 mm |
| Dual-screen | No |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 500:1 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 9th gen Intel® Core™ i5 |
| Processor model | i5-9400H |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.3 GHz |
| Processor frequency | 2.5 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4x SO-DIMM |
| Maximum internal memory | 128 GB |
| Maximum internal memory (64-bit) | 128 GB |
| ECC | No |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Total HDDs capacity | 500 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3281 |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Video capturing speed | 30 fps |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 2 |
| Thunderbolt™ 3 Technology | Yes |
| Combo headphone/mic port | Yes |
| SmartCard slot | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 3 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® CM246 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | DualPoint |
| Numeric keypad | Yes |
| Windows keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 191078 |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 6 |
| Battery capacity | 64 Wh |
| Battery voltage | 7.8 V |
| Battery recharge time | 4 h |
| Battery weight | 298 g |
Power
| Specification | Value |
|---|---|
| AC adapter power | 240 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 12.31 A |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Password protection | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating shock | 105 G |
| Non-operating shock | 40 G |
| Operating vibration | 0.26 G |
| Non-operating vibration | 1.37 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.09 kg |
| Width | 414.2 mm |
| Depth | 273.7 mm |
| Height (front) | 2.62 cm |
| Height (rear) | 3.03 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Power cord included | Yes |
